Fastener Specifications
Air Conditioning Accumulator Bracket Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Accumulator Bracket Nut | - | - | 9 N.m (80 lb in) | Air Conditioning Accumulator Hose Replacement |

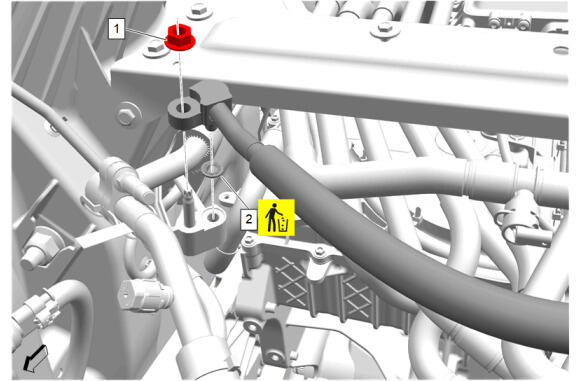

Air Conditioning Accumulator Hose at Air Conditioning Condenser Check Valve
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Tube Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Accumulator Hose Replacement |
| 2 | Air Conditioning Evaporator Inlet Tube Seal | Yes | - | - | Air Conditioning Accumulator Hose Replacement |
Air Conditioning Accumulator Hose at Air Conditioning Receiver and Dehydrator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Receiver and Dehydrator Tube Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Accumulator Hose Replacement |
| 2 | Air Conditioning Evaporator Inlet Tube Seal | Yes | - | - | Air Conditioning Accumulator Hose Replacement |
Air Conditioning Compressor Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor Bolt | - | - | 22 N.m (16 lb ft) | Air Conditioning with Motor Compressor Replacement |
| 2 | Air Conditioning Compressor Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning with Motor Compressor Replacement |
Air Conditioning Compressor Ground Strap
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor Bolt | - | - | 22 N.m (16 lb ft) | Air Conditioning with Motor Compressor Replacement |
Air Conditioning Compressor Ground Strap at Air Conditioning Upper Compressor Mount
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor Bolt | - | - | 22 N.m (16 lb ft) | Air Conditioning with Motor Compressor Replacement |
Air Conditioning Compressor Hose -Left Side
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor Hose Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Compressor Hose Replacement |
| 2 | Air Conditioning Evaporator Inlet Tube Seal | Yes | - | - | Air Conditioning Compressor Hose Replacement |
Air Conditioning Compressor Hose - Right Side
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor Hose Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Compressor Hose Replacement |
| 2 | Air Conditioning Evaporator Inlet Tube Seal | Yes | - | - | Air Conditioning Compressor Hose Replacement |
Air Conditioning Condenser and Evaporator Hose - Right Side
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser and Evaporator Hose Fitting Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Condenser and Evaporator Hose Replacement |
| 2 | Air Conditioning Compressor Hose Seal | Yes | - | - | Air Conditioning Condenser and Evaporator Hose Replacement |
Air Conditioning Condenser and Evaporator Hose at Air Conditioning with Motor Compressor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser and Evaporator Hose Fitting Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Condenser and Evaporator Hose Replacement |
| 2 | Air Conditioning Compressor Hose Seal | Yes | - | - | Air Conditioning Condenser and Evaporator Hose Replacement |
Air Conditioning Condenser and Evaporator Hose at Drive Motor Battery Coolant Cooler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser and Evaporator Hose Fitting Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Condenser and Evaporator Hose Replacement |
| 2 | Air Conditioning Compressor Hose Seal | Yes | - | - | Air Conditioning Condenser and Evaporator Hose Replacement |
Air Conditioning Condenser Check Valve
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Bolt | - | - | 9 N.m (80 lb in) | Air Conditioning Evaporator Check Valve Replacement |
| 2 | Air Conditioning Evaporator Inlet Tube Seal | Yes | - | - | Air Conditioning Evaporator Check Valve Replacement |
Air Conditioning Condenser Check Valve Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Check Valve Bolt | - | - | 22 N.m (16 lb ft) | Air Conditioning Condenser Check Valve Replacement |
Air Conditioning Condenser Refrigerant Flow Valve - Lower
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower |
| 2 | Air Conditioning Condenser Refrigerant Flow Valve Bolt | - | - | 9 N.m (80 lb in) | Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower |
| 3 | Air Conditioning Compressor and Condenser Hose Seal | Yes | - | - | Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower |
Air Conditioning Condenser Refrigerant Flow Valve - Upper
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Refrigerant Flow Valve Bolt | - | - | 9 N.m (80 lb in) | Air Conditioning Condenser Refrigerant Flow Valve Replacement - Upper |
| 2 | Air Conditioning Compressor and Condenser Hose Seal | Yes | - | - | Air Conditioning Condenser Refrigerant Flow Valve Replacement - Upper |
Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolts - Upper
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Air Conditioning Condenser Refrigerant Flow Valve Replacement - Upper |
Air Conditioning Condenser Tube
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Tube Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Condenser Tube Replacement |
| 2 | Air Conditioning Evaporator Inlet Tube Seal | Yes | - | - | Air Conditioning Condenser Tube Replacement |
Air Conditioning Condenser Valve Hose at Air Conditioning Condenser
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor and Condenser Hose Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Condenser Valve Hose Replacement |
| 2 | Air Conditioning Compressor and Condenser Hose Seal | Yes | - | - | Air Conditioning Condenser Valve Hose Replacement |
Air Conditioning Condenser Valve Hose at Air Conditioning Refrigerant Flow Valve
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Refrigerant Flow Valve Bolt | - | - | 9 N.m (80 lb in) | Air Conditioning Condenser Valve Hose Replacement |
| 2 | Air Conditioning Compressor and Condenser Hose Seal | Yes | - | - | Air Conditioning Condenser Valve Hose Replacement |
Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement |
| 2 | Air Conditioning Evaporator Tube Bracket Nut | - | - | 9 N.m (80 lb in) | Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement |
Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose at Air Conditioning Condenser Refrigerant Flow Valve - Lower
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Refrigerant Flow Valve Bolt | - | - | 9 N.m (80 lb in) | Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower |
| 2 | Air Conditioning Compressor and Condenser Hose Seal | Yes | - | - | Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower |
Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose at Bulkhead
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor and Condenser Hose Clip Bracket Nut | - | - | 9 N.m (80 lb in) | Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement |
Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose at Bulkhead
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Hose Seal | Yes | - | - | Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement |
| 2 | Air Conditioning Evaporator Seal | Yes | - | - | Air Conditioning Refrigerant Heat Exchanger Replacement |
| 3 | Air Conditioning Compressor and Condenser Hose Nut | - | - | 9 N.m (80 lb in) | Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement |

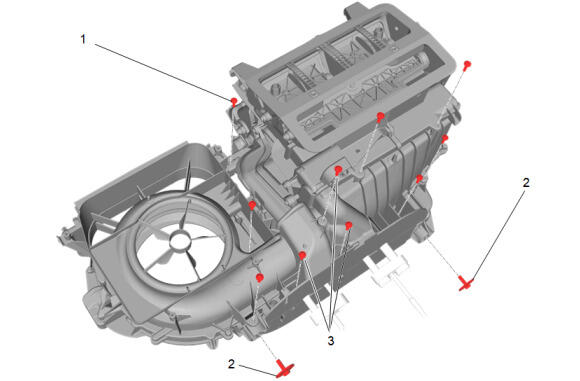

Air Conditioning Evaporator and Blower Case Replacement - Evaporator Case And Upper Scroll
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [7x] | - | - | 1.5 N.m (13 lb in) | Air Conditioning Evaporator and Blower Case Replacement - Lower Case and Middle Scroll |
| 2 | Heater and Blower Module Bolt [2x] | - | - | 5 N.m (44 lb in) | Heater and Air Conditioning Evaporator and Blower Module Removal and Installation |
| 3 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [3x] | - | - | 1.5 N.m (13 lb in) | Air Conditioning Evaporator and Blower Case Replacement - Lower Case and Middle Scroll |

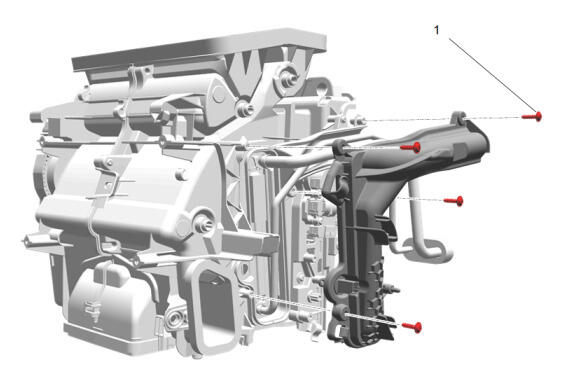

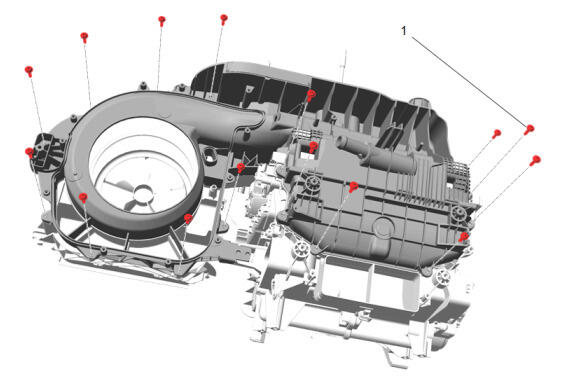

Air Conditioning Evaporator and Blower Case Replacement - Lower Blower Scroll
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [11x] | - | - | 1.5 N.m (13 lb in) | Air Conditioning Evaporator and Blower Case Replacement - Lower Blower Scroll |
| 2 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [4x] | - | - | 1.5 N.m (13 lb in) | Air Conditioning Evaporator and Blower Case Replacement - Blower Service Access Panel |

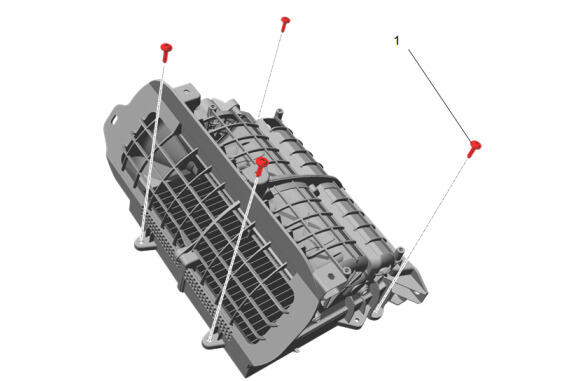

Air Conditioning Evaporator and Blower Case Replacement - Lower Case and Middle Scroll
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [15x] | - | - | 1.5 N.m (13 lb in) | Air Conditioning Evaporator and Blower Case Replacement - Lower Case and Middle Scroll |
Air Conditioning Evaporator Bracket Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Evaporator Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Air Conditioning Refrigerant Heat Exchanger Replacement |

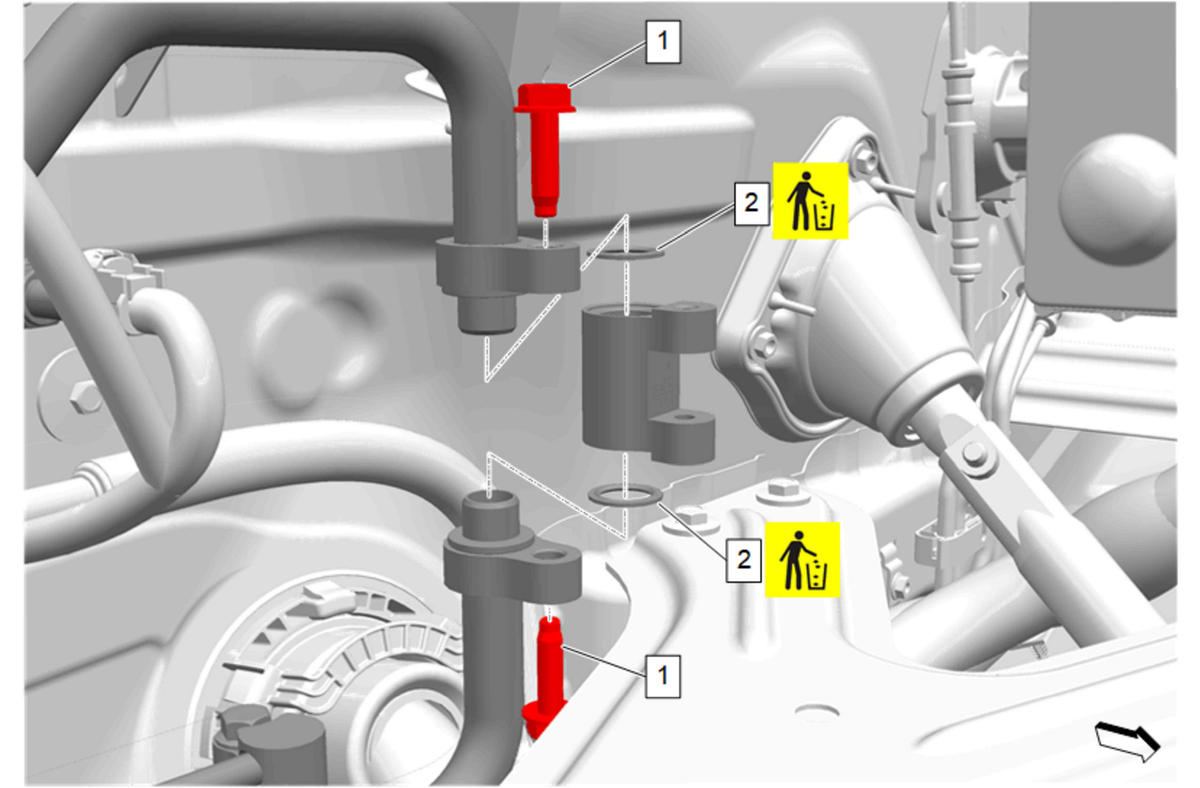

Air Conditioning Evaporator Check Valve
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Condenser Check Valve Bolt [2x] | - | - | 22 N.m (16 lb ft) | Air Conditioning Evaporator Check Valve Replacement |
| 2 | Air Conditioning Compressor Hose Seal [2x] | Yes | - | - | Air Conditioning Evaporator Check Valve Replacement |
Air Conditioning Evaporator Electronic Thermal Expansion Valve
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Evaporator Electronic Expansion Valve Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Refrigerant Heat Exchanger Replacement |
| 2 | Air Conditioning Evaporator Inlet Tube Seal | Yes | - | - | Air Conditioning Refrigerant Heat Exchanger Replacement |
| 3 | Air Conditioning Compressor Hose Seal | Yes | - | - | Air Conditioning Refrigerant Heat Exchanger Replacement |
| 4 | Air Conditioning Evaporator Thermal Expansion Valve Seal-Large | Yes | - | - | Air Conditioning Evaporator Electronic Expansion Valve Replacement |
| 5 | Air Conditioning Evaporator Thermal Expansion Valve Seal-Small | Yes | - | - | Air Conditioning Evaporator Electronic Expansion Valve Replacement |
Air Conditioning Evaporator Tube at Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor Hose Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Evaporator Tube Replacement |
| 2 | Air Conditioning Compressor and Condenser Hose Seal | Yes | - | - | Air Conditioning Evaporator Tube Replacement |
Air Conditioning Evaporator Tube at Air Conditioning with Motor Compressor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor Hose Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Evaporator Tube Replacement |
| 2 | Air Conditioning Compressor and Condenser Hose Seal | Yes | - | - | Air Conditioning Evaporator Tube Replacement |
Air Conditioning Evaporator Tube Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Compressor Hose Nut | - | - | 22 N.m (16 lb ft) | Air Conditioning Evaporator Tube Replacement |
Air Conditioning Receiver and Dehydrator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Receiver and Dehydrator Bracket Nut [3x] | - | - | 9 N.m (80 lb in) | Air Conditioning Receiver and Dehydrator Replacement |

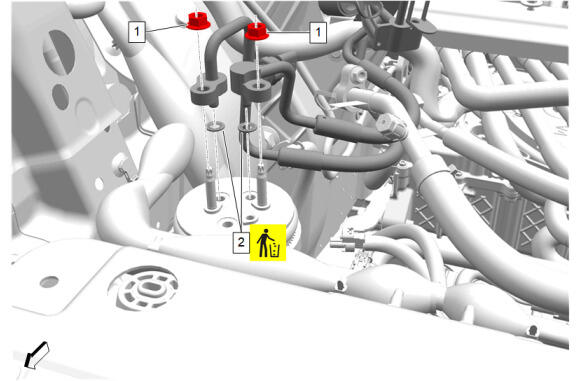

Air Conditioning Refrigerant Heat Exchanger at Air Conditioning Receiver and Dehydrator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Receiver and Dehydrator Tube Nut [2x] | - | - | 22 N.m (16 lb ft) | Air Conditioning Refrigerant Heat Exchanger Replacement |
| 2 | Air Conditioning Evaporator Inlet Tube Seal [2x] | Yes | - | - | Air Conditioning Refrigerant Heat Exchanger Replacement |

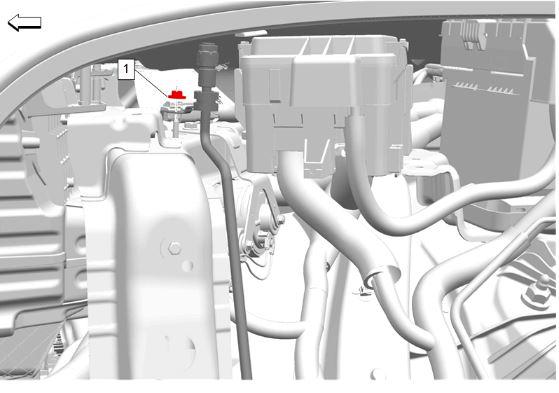

Air Conditioning Refrigerant High Pressure Service Valve
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant High Pressure Service Valve | - | - | 11 N.m (8.1 lb ft) | Air Conditioning Refrigerant High Pressure Service Valve Replacement |
Air Conditioning Refrigerant Low Pressure Service Valve
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant Low Pressure Service Valve | - | - | 11 N.m (8.1 lb ft) | Air Conditioning Refrigerant Low Pressure Service Valve Replacement |
Air Conditioning Refrigerant Pressure and Temperature Sensor at Air Conditioning Condenser and Evaporator Hose
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant Pressure and Temperature Sensor | - | - | 10 N.m (89 lb in) | Air Conditioning Refrigerant Pressure and Temperature Sensor Replacement - Air Conditioning Condenser and Evaporator Hose |
Air Conditioning Refrigerant Pressure and Temperature Sensor at Air Conditioning Evaporator Tube
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant Pressure and Temperature Sensor | - | - | 10 N.m (89 lb in) | Air Conditioning Refrigerant Pressure and Temperature Sensor Replacement - Air Conditioning Evaporator Tube |
Air Conditioning Refrigerant Pressure and Temperature Sensor at Air Conditioning Refrigerant Heat Exchanger
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant Pressure and Temperature Sensor | - | - | 10 N.m (89 lb in) | Air Conditioning Refrigerant Pressure and Temperature Sensor Replacement - Air Conditioning Refrigerant Heat Exchanger |
Air Conditioning Refrigerant Temperature Sensor - Air Conditioning
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant Temperature Sensor | - | - | 7 N.m (62 lb in) | Air Conditioning Refrigerant Temperature Sensor Replacement - Air Conditioning |
Air Conditioning Refrigerant Temperature Sensor - Heating
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant Temperature Sensor | - | - | 7 N.m (62 lb in) | Air Conditioning Refrigerant Temperature Sensor Replacement - Heating |

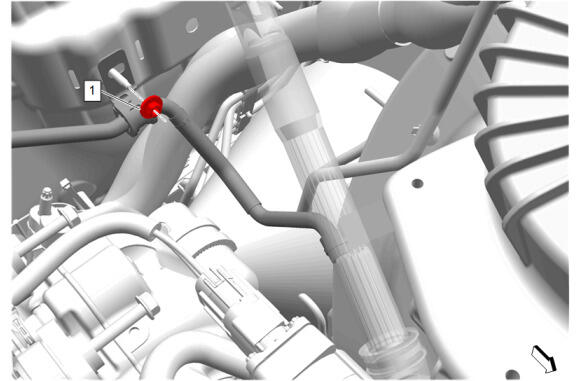

Air Conditioning Refrigerant Temperature Sensor at Air Conditioning Accumulator Hose
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant Temperature Sensor | - | - | 7 N.m (62 lb in) | Air Conditioning Refrigerant Temperature Sensor Replacement - Air Conditioning Accumulator Hose |

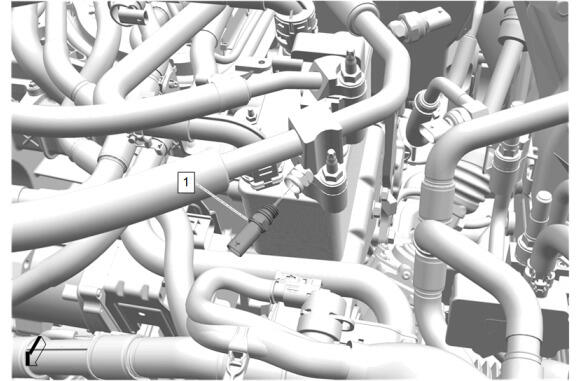

Air Conditioning Refrigerant Temperature Sensor at Air Conditioning Condenser and Evaporator Hose
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Conditioning Refrigerant Temperature Sensor | - | - | 7 N.m (62 lb in) | Air Conditioning Refrigerant Temperature Sensor Replacement - Air Conditioning Condenser and Evaporator Hose |
Air Inlet Duct and Front Floor Duct
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Floor Front Air Outlet Duct Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Floor Front Air Outlet Duct Replacement - Left Side |
| 2 | Heater and Air Conditioning Evaporator and Blower Module Adapter Nut [2x] | - | - | 9 N.m (80 lb in) | Heater and Air Conditioning Evaporator and Blower Module Adapter Replacement |
| 3 | Air Inlet Duct Nut | - | - | 9 N.m (80 lb in) | Air Inlet Duct Replacement |
| 4 | Floor Front Air Outlet Duct Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Floor Front Air Outlet Duct Replacement - Right Side |
Air Inlet Housing
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Inlet Housing Bolt [4x] | - | - | 1.5 N.m (13 lb in) | Air Inlet Housing Replacement |
Floor Rear Air Distributor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Rear Air Duct Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Rear Air Rear Duct Replacement |
| 2 | Floor Rear Air Distributor Bracket Nut [2x] | - | - | 9 N.m (80 lb in) | Floor Rear Air Distributor Replacement |
Heater Core Tube Cover
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [4x] | - | - | 1.5 N.m (13 lb in) | Heater Core Replacement |

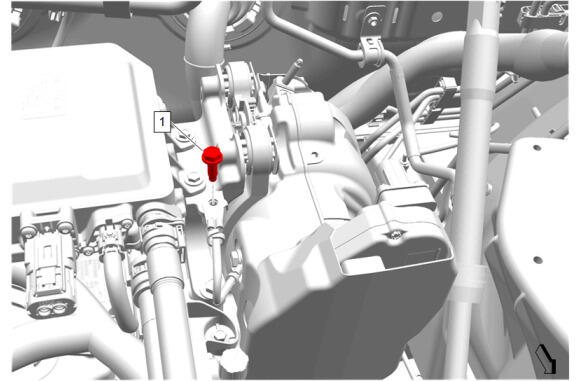

High Voltage Air Conditioning Compressor Lower Mount Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Voltage Air Conditioning Compressor Lower Mount Bolt | - | - | 30 N.m (22 lb ft) | Air Conditioning with Motor Compressor Replacement |
High Voltage Air Conditioning Compressor Mount Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Voltage Air Conditioning Compressor Mount Bolt [2x] | - | - | 30 N.m (22 lb ft) | Air Conditioning with Motor Compressor Replacement |

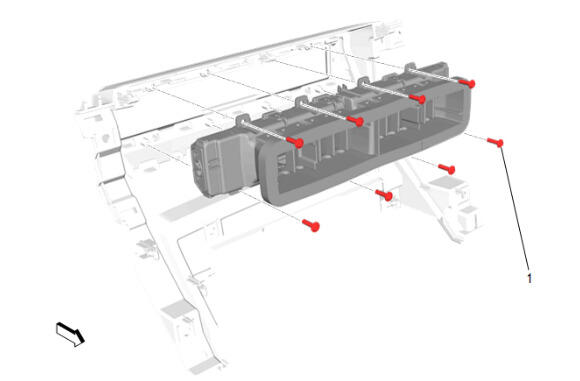

Instrument Panel Center Air Outlet
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Center Air Outlet Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Center Air Outlet Replacement |
Instrument Panel Outer Air Outlet
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Center Air Outlet Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Outer Air Outlet Replacement - Left Side |
| Instrument Panel Outer Air Outlet Replacement - Right Side | |||||
| 2 | Side Window Defogger Outlet Bolt | - | - | 1.2 N.m (11 lb in) | Instrument Panel Outer Air Outlet Replacement - Left Side |
| Instrument Panel Outer Air Outlet Replacement - Right Side |
Instrument Panel Outer Air Outlet Duct
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Outer Air Outlet Duct Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Outer Air Outlet Duct Replacement |
| 2 | Front Floor Console Auxiliary Cooling Duct Bolt | - | - | 2.5 N.m (22 lb in) | Front Floor Console Auxiliary Cooling Intermediate Duct Replacement (K4C) |
| 3 | Front Floor Console Auxiliary Cooling Duct Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Auxiliary Cooling Duct Replacement (K4C) |
| 4 | Front Floor Console Auxiliary Cooling Intermediate Duct Bolt | - | - | 2.5 N.m (22 lb in) | Front Floor Console Auxiliary Cooling Intermediate Duct Replacement (K4C) |
