Installation Procedure

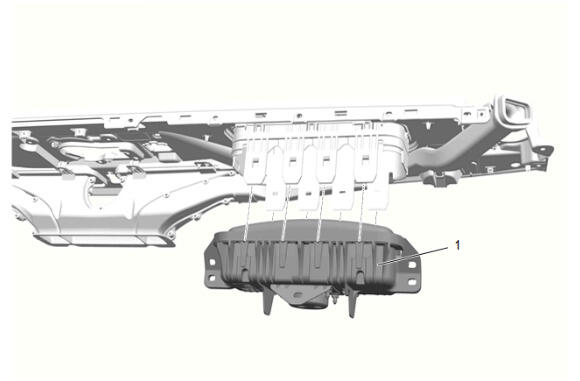

  1. GM5833056
    WARNING:

    Never install the passenger airbag module into the instrument panel assembly that airbag module chute is cut. This may cause incorrect deployment when the passenger airbag is deployed.

    Position the passenger air bag module (1) on the air bag chute.

    2. CAUTION:

    Make sure that the passenger airbag is installed into the chute completely.

  2. Push the passenger airbag module (1) into the airbag chute until the hooks of airbag module are seated completely.

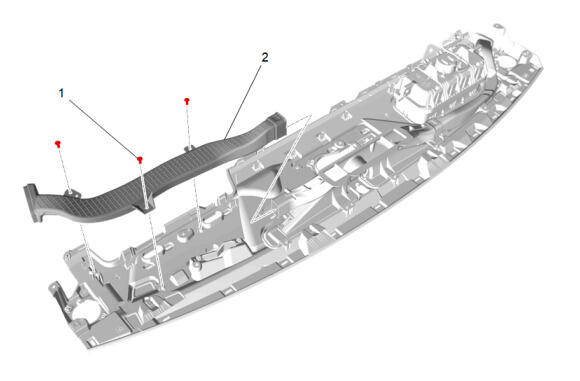

  3. GM5813008

    Side Window Defogger Outlet Duct - Left Side (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Side Window Defogger Outlet Duct Bolt (1) - Install and tighten [3x] - Fastener Specifications

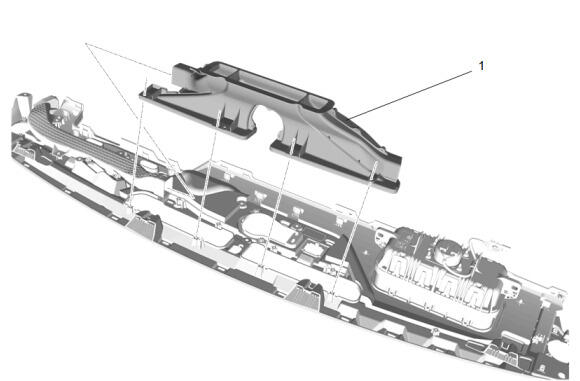

  5. GM5813030

    Windshield Defroster Outlet Duct (1) - Install

  6. GM5813028

    Windshield Defroster Outlet Duct Bolt (1) - Install and tighten [4x] - Fastener Specifications

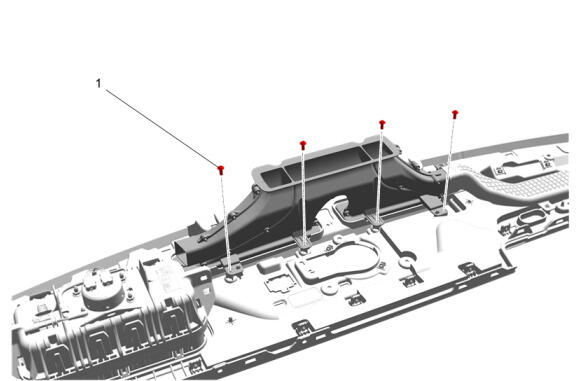

  7. GM5813027

    Windshield Defroster Outlet Duct Bolt (1) - Install and tighten [4x] - Fastener Specifications

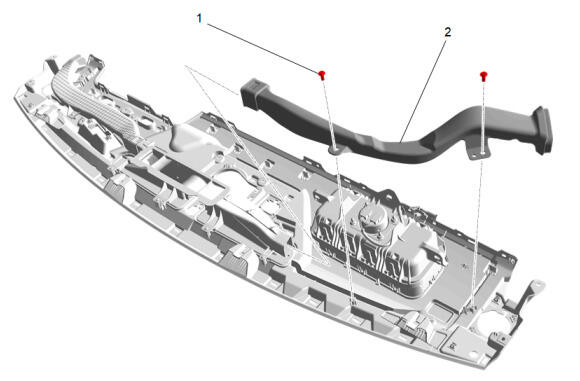

  8. GM5813006

    Side Window Defogger Outlet Duct - Right Side (2) - Install

  9. Side Window Defogger Outlet Duct Bolt (1) - Install and tighten [2x] - Fastener Specifications

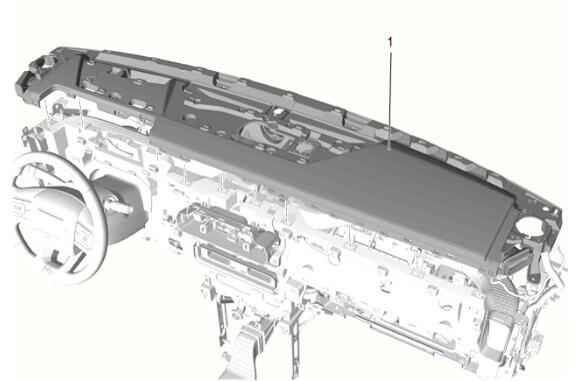

  10. GM5814945

    With the aid of an assistant, install the instrument panel upper trim panel (1).

    1. Install the 2 harness retainers.
    2. Push the instrument panel upper trim panel (1) forward and downward to install placing it above the 4 front metal retaining tabs.
    3. Pull the instrument panel upper trim panel (1) rearward and push downward to install it into the 4 front metal tabs.
    4. Secure the retaining tabs.

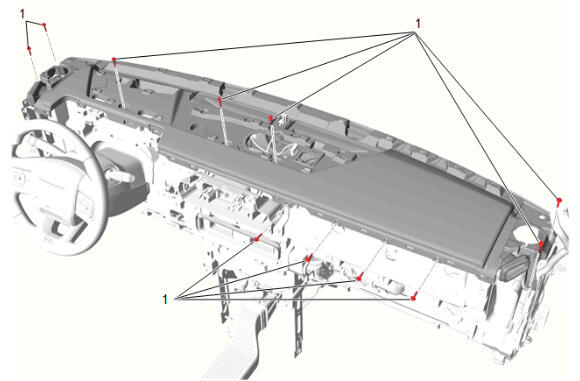

  11. GM5814944

    Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [11x] - Fastener Specifications

  12. GM5813376

    Instrument Panel Airbag Bolt (1) - Install and tighten [3x] - Fastener Specifications

  13. Connect the electrical connector.
  14. Install the retainer.

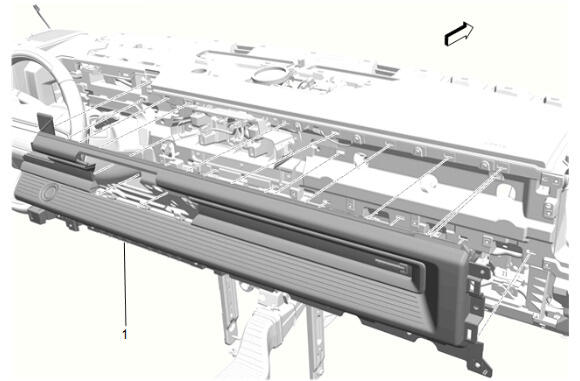

  15. GM5811495

    Connect the electrical connectors.

  16. Instrument Panel Trim Pad - Right Side (1) - Install

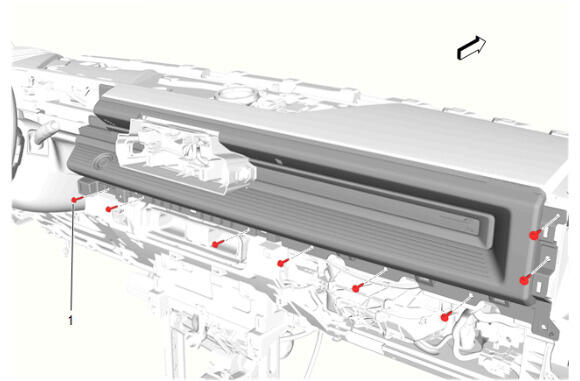

  17. GM5811494

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [8x] - Fastener Specifications

  18. GM5812560

    Instrument Panel Trim Plate (2) - Install

  19. Instrument Panel Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications

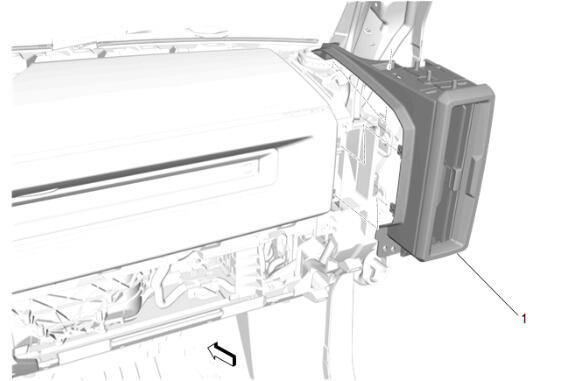

  20. GM5810877

    Instrument Panel Air Outlet Bezel (1) - Install

  21. GM5810876

    Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [4x] - Fastener Specifications

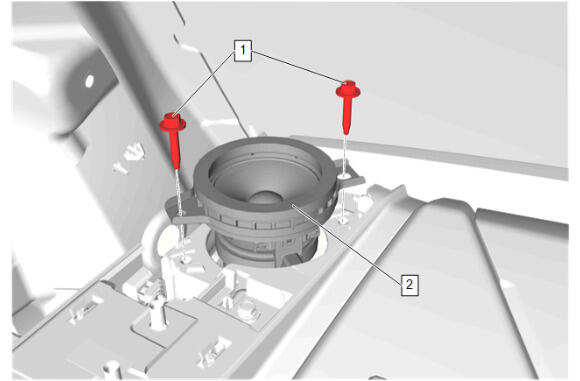

  22. GM5758372
    NOTE:

    Left side shown, right side similar.

    Connect the electrical connector.

  23. Radio Front Speaker- Right Side (2) - Install
  24. Radio Front Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
  25. GM5765249
    NOTE:

    Left side shown, right side similar.

    Radio Front Speaker Grille- Right Side (2) - Install

  26. Secure the retaining tabs.
  27. Radio Front Speaker Grille Bolt (1) - Install and tighten - Fastener Specifications
  28. GM5764763

    Connect the electrical connectors.

  29. Radio Control (1) - Install

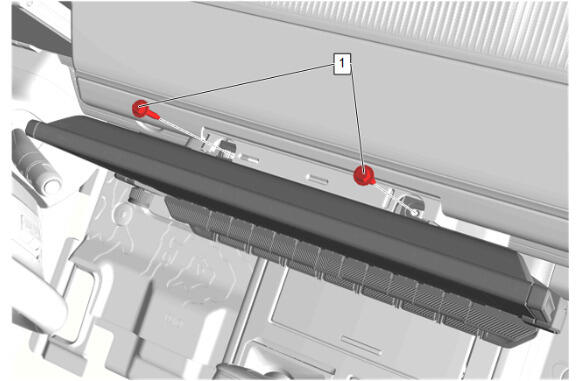

  30. GM5764761

    Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

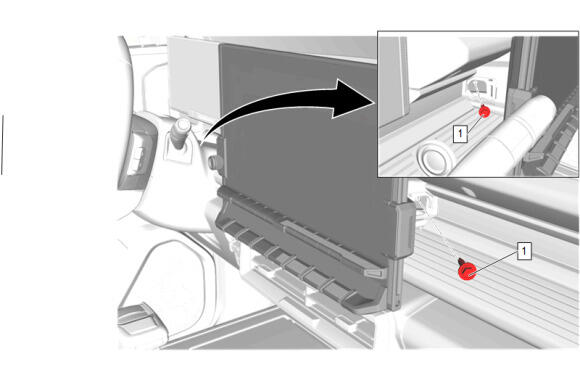

  31. GM5764757

    Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

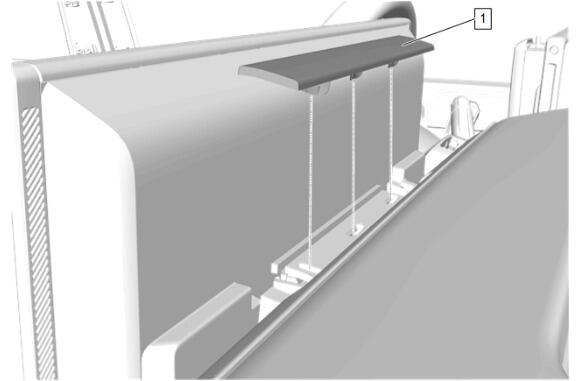

  32. GM5764596

    Instrument Panel Upper Trim Panel Cover (1) - Install

  33. Secure the retaining tabs.
  34. GM5764598

    Instrument Panel Bolt Cover (1) - Install [2x]

  35. Secure the retaining tab.
  36. GM5807912

    Instrument Panel Lower Trim Panel (2) - Install

  37. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications

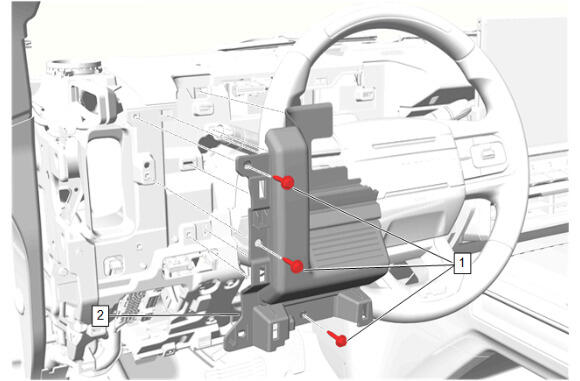

  38. GM5812952

    Instrument Panel Trim Pad - Left Side (2) - Install

  39. Instrument Panel Trim Pad Bolt (1) - Install and tighten [3x] - Fastener Specifications
  40. GM5808419

    Instrument Panel Air Outlet Bezel (1) - Install

  41. GM5808418

    Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [4x] - Fastener Specifications

  42. GM5796821

    Connect the electrical connectors.

  43. Instrument Panel Knee Bolster (1) - Install
  44. GM5796820

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications

  45. Instrument Panel Fuse Block Access Hole Cover (1) - Install
  46. GM5758372

    Connect the electrical connector.

  47. Radio Front Speaker- Left Side (2) - Install
  48. Radio Front Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
  49. GM5765249

    Radio Front Speaker Grille- Left Side (2) - Install

  50. Secure the retaining tabs.
  51. Radio Front Speaker Grille Bolt (1) - Install and tighten - Fastener Specifications
  52. GM5807065

    Instrument Panel Compartment (1) - Install

  53. GM5807064

    Open the instrument panel compartment door.

  54. Instrument Panel Compartment Bolt (1) - Install and tighten [3x] - Fastener Specifications
  55. GM5807063

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications

  56. GM5787899

    Front Floor Console (1) - Install

  57. Connect the electrical connectors to the front floor console (1).
  58. GM5776105

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  59. Front Floor Console Bolt Access Hole Cover (1) - Install
  60. GM5777829

    Front Floor Console Lower Applique (1) - Install

  61. GM5776102

    Front Floor Console Extension Panel (1) - Install

  62. GM5776104

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  63. Front Floor Console Bolt Access Hole Cover (1) - Install
  64. GM6039681

    Rear Floor Mat (1) - Install

  65. GM6029241

    Tire Air Compressor (2) - Install

  66. Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
  67. GM5776103

    Front Floor Console Lower Applique (1) - Install

  68. GM5776101

    Front Floor Console Extension Panel (1) - Install

  69. GM5776100

    Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

  70. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  71. GM5776099

    Install the left and right front floor mat (1).

  72. Return the seat to its original position.
  73. GM5775310

    Connect the electrical connector.

  74. Forward Collision Alert Display (2) - Install
  75. Forward Collision Alert Display Bolt (1) - Install and tighten [2x] - Fastener Specifications

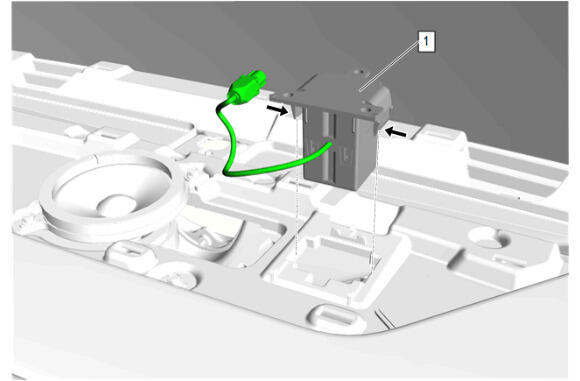

  76. GM5775313

    Auxiliary Wireless Communication Interface Antenna (1) - Install

  77. Secure the retaining tabs.
  78. Connect the electrical connector.

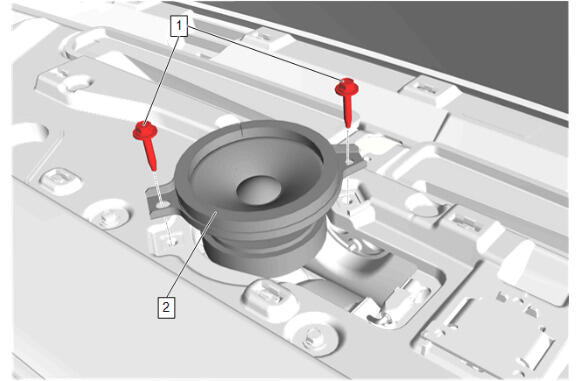

  79. GM5758375

    Connect the electrical connector.

  80. Radio Front Center Speaker (2) - Install
  81. Radio Front Center Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
  82. GM5811463

    Connect the electrical connector.

  83. Instrument Cluster (1) - Install

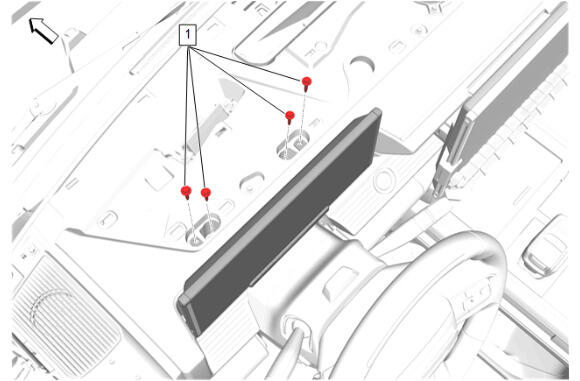

  84. GM5811461

    Instrument Cluster Bolt (1) - Install and tighten [4x] - Fastener Specifications

  85. GM5775850

    Connect the electrical connector.

  86. Instrument Panel Extension (1) - Install
  87. GM5775880
    NOTE:

    Left side shown, right side similar.

    Connect the electrical connector.

  88. Windshield Garnish Molding- Left Side and Right Side (1) - Install [2x]
  89. GM5775868
    NOTE:

    Left side shown, right side similar.

    Windshield Pillar Assist Handle Bolt- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications

  90. Windshield Pillar Assist Handle Cover- Left Side and Right Side (1) - Install [4x]
  91. GM5775858
    NOTE:

    Left side shown, right side similar.

    Body Hinge Pillar Garnish Molding- Left Side and Right Side (1) - Install [2x]

  92. Install the weatherstrip as necessary.
  93. GM5775549
    NOTE:

    Left side shown, right side similar.

    Instrument Panel Outer Trim Cover- Left Side and Right Side (1) - Install [2x]

  94. Enable the SIR System. SIR Disabling and Enabling
