Installation Procedure
Connect all electrical connectors.

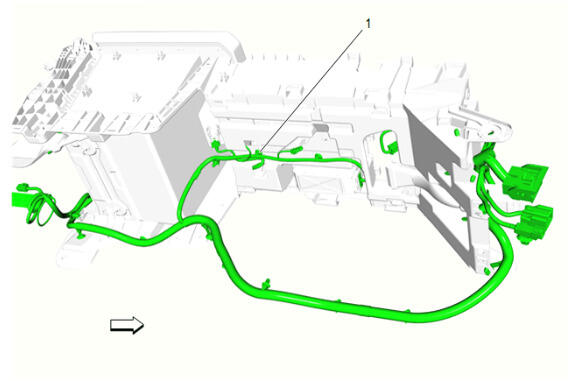

- Front Floor Console Wiring Harness (1) - Install
Connect all electrical connectors.

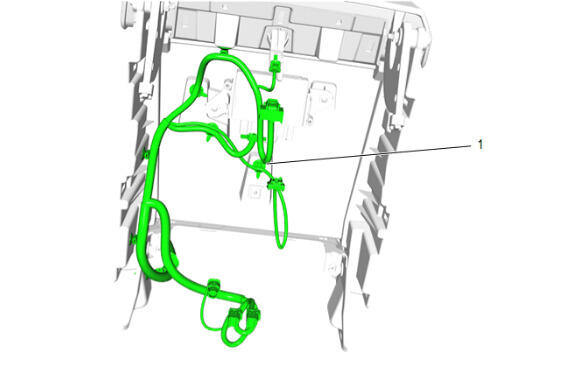

- Front Floor Console Wiring Harness (1) - Install
Front Floor Console Wiring Harness (1) - Install
Front Floor Console Rear Air Rear Duct (1) - Install
- CAUTION:
Refer to Fastener Caution .
Front Floor Console Rear Air Duct Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Install the front floor console rear air duct harness retainer.
Connect the electrical connectors.

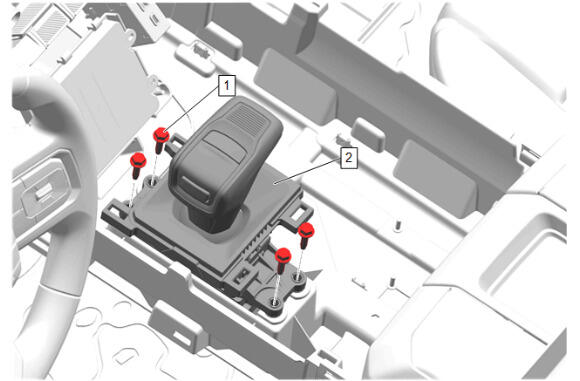

- Gear Shift Control Module (2) - Install
- Automatic Transmission Control Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connectors.

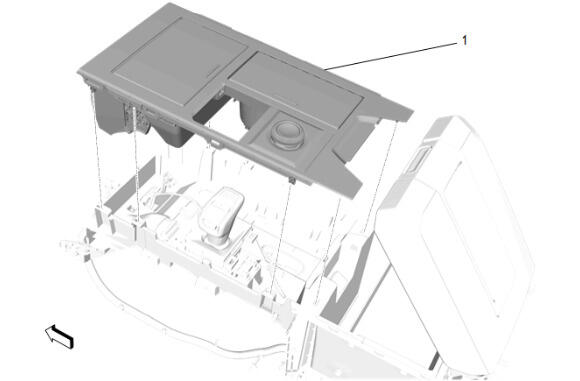

- Front Floor Console Cup Holder Trim Plate (1) - Install
Connect the electrical connectors.
- Front Floor Console Stowage Tray- Upper (2) - Install
- Front Floor Console Stowage Tray- Lower (1) - Install
Front Floor Console Storage Tray Bolt (1) - Install and tighten [8x] - Fastener Specifications

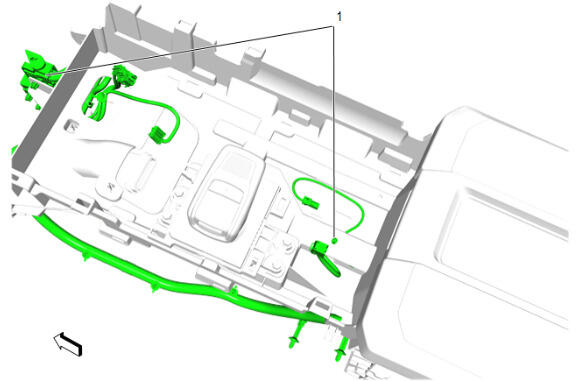

- Install the front floor console wiring harness (2) to the front floor console stowage tray.
Front Floor Rear Console Side Trim Panel- Left Side and Right Side (1) - Install [2x]
Connect the electrical connectors.
- Front Floor Console Rear Trim Panel (1) - Install
Front Floor Console Rear Cover Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Front Floor Console Rear Trim Plate (1) - Install
- Close the armrest cover.
Front Floor Console Rear Cover Bolt- Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications
Front Floor Console (1) - Install - Front Floor Console Removal and Installation
