Installation Procedure

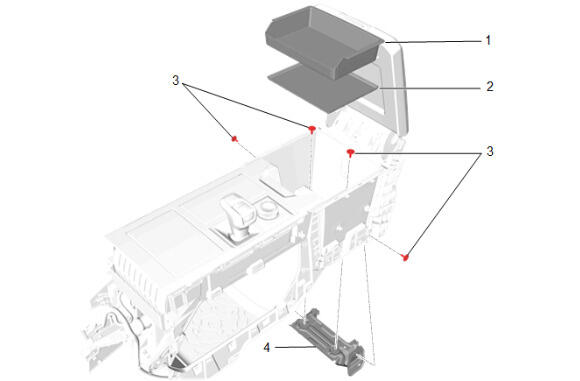

  1. GM5795326

    Front Floor Console Intermediate Bracket (4) - Install

  2. Install the front floor console wiring harness to the front floor console intermediate bracket.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Floor Console Intermediate Bracket Bolt (3) - Install and tighten [4x] - Fastener Specifications
  4. Front Floor Console Compartment Liner (2) - Install
  5. Front Floor Console Compartment Divider (1) - Install

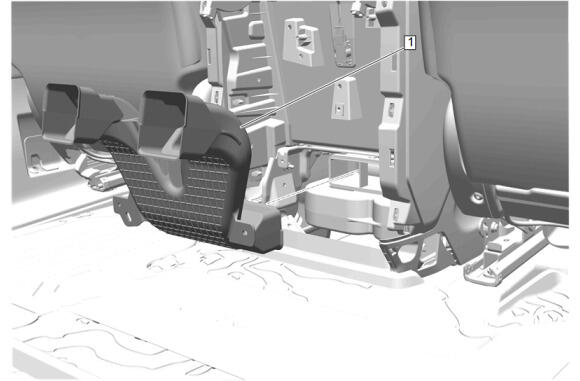

  6. GM5793479

    Front Floor Console Rear Air Rear Duct (1) - Install

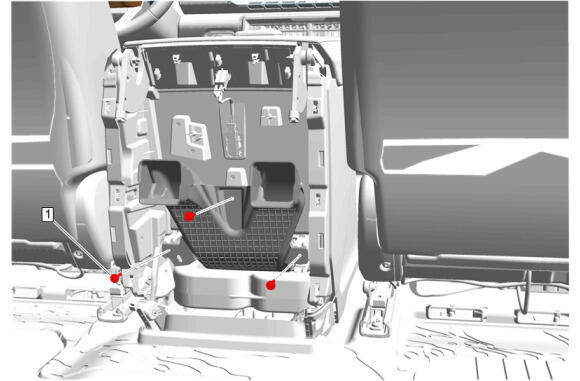

  7. GM5793476

    Front Floor Console Rear Air Duct Bolt (1) - Install and tighten [3x] - Fastener Specifications

  8. Install the front floor console rear air duct harness retainer.

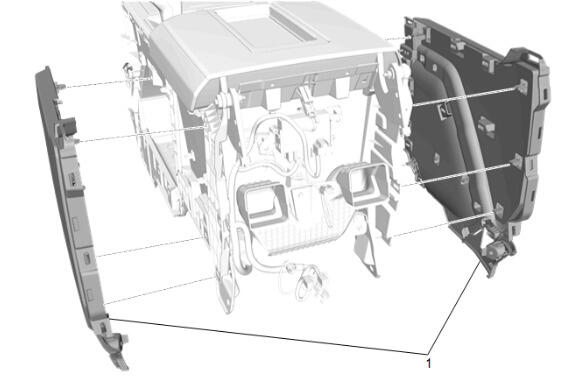

  9. GM5793915

    Front Floor Rear Console Side Trim Panel- Left Side and Right Side (1) - Install [2x]

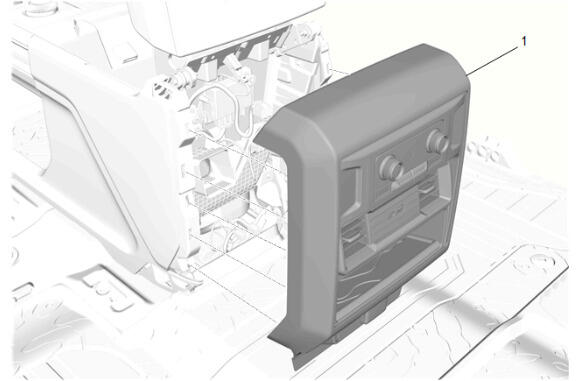

  10. GM5786877

    Connect the electrical connectors.

  11. Front Floor Console Rear Trim Panel (1) - Install

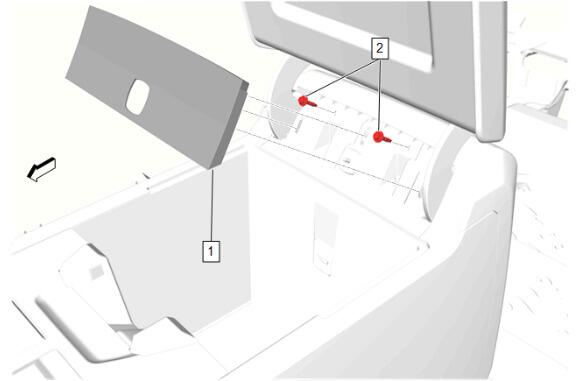

  12. GM5786876

    Front Floor Console Rear Cover Bolt (2) - Install and tighten [2x] - Fastener Specifications

  13. Front Floor Console Rear Trim Plate (1) - Install
  14. Close the armrest cover.

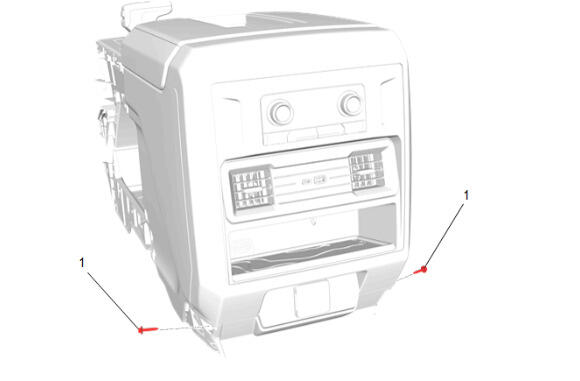

  15. GM5793914

    Front Floor Console Rear Cover Bolt- Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications

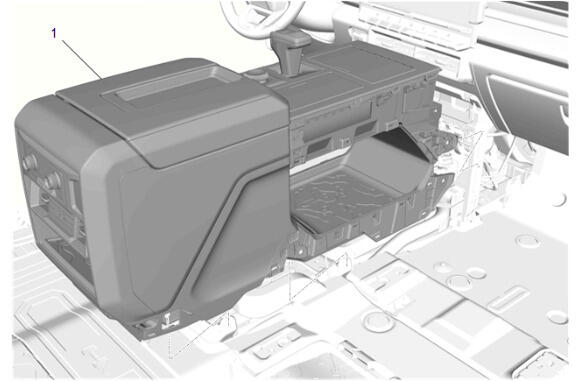

  16. GM5776107

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation
