Installation Procedure

  1. GM5582622Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Driver Knee Bolster Brace Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  3. GM5582426Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier (1) - Install

  4. Connect and position the wiring harness.
  5. GM5582425Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier Bolt (1) - Install and tighten [ 12x ] - Fastener Specifications

  6. GM5589748Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct - Left Side (1) - Install

  7. GM5589747Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

  8. GM5589741Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Install

  9. GM5589739Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

  10. Side Window Defogger Outlet Duct Retainer (2) - Install
  11. GM5580361Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Bracket (2) - Install

  12. Connect and position the wiring harness.
  13. Head-Up Display Bracket Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  14. GM5580360Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

    15. NOTE:

    Ensure that each tab on the head-up display is properly seated in the mating hole for proper alignment.

  15. Head-Up Display (2) - Install
  16. Head-Up Display Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  17. GM5587756Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct - Right Side (1) - Install

  18. GM5587754Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  19. Install the wiring harness retainers onto the right instrument panel outer air outlet duct.
  20. GM5587718Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Right Side (1) - Install

  21. GM5587715Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct Bolt (2) - Install and tighten - Fastener Specifications

  22. Side Window Defogger Outlet Duct Retainer (1) - Install
  23. GM5590589Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct - Left Side (1) - Install

  24. GM5590588Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

  25. GM5590587Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct - Right Side (1) - Install

  26. GM5590586Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

  27. GM5542561Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (2) - Install

  28. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  29. GM5569295Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  30. Radio Control (1) - Install
  31. GM5569290Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bolt (1) - Install and tighten [ 5x ] - Fastener Specifications

  32. GM5539609Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  33. Instrument Panel Accessory Bezel (2) - Install
  34. Instrument Panel Accessory Bezel Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  35. GM5527231Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Plate Applique (2) - Install

  36. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
  37. GM5523097Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (2) - Install

  38. Connect the electrical connector.
  39. GM5528538Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

  40. GM5525896Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install

  41. GM5525893Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [ 10x ] - Fastener Specifications

  42. GM5525891Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (1) - Install

  43. GM5525889Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Plate Applique (2) - Install

  44. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
  45. GM5521782Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (2) - Install

  46. Instrument Panel Compartment Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  47. GM5541970Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  48. Instrument Cluster (2) - Install
  49. Instrument Cluster Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  50. GM5520781Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  51. Instrument Panel Transmission Shift Opening Cover (2) - Install
  52. Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [ 6x ] - Fastener Specifications
  53. GM5523095Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 15x ] - Fastener Specifications

  54. GM5527058Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  55. Radio Front Speaker (2) - Install
  56. Radio Front Speaker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  57. GM5522013Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Grille (1) - Install

  58. GM5549637Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (3) - Install

  59. Windshield Pillar Assist Handle Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
  60. Windshield Pillar Assist Handle Cover (1) - Install [ 2x ]
  61. GM5520388Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  62. Instrument Panel Trim Pad (2) - Install
  63. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 6x ] - Fastener Specifications
  64. GM5519541Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install

  65. GM5519543Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  66. GM5518395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  67. GM5525417Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  68. Radio Front Center Speaker (2) - Install
  69. Radio Front Center Speaker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  70. GM5521843Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  71. Instrument Panel Extension (1) - Install
  72. GM5527055Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  73. Radio Front Speaker (2) - Install
  74. Radio Front Speaker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  75. GM5522015Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Grille (1) - Install

  76. GM5548939Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications

  77. Align the retaining clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
  78. Windshield Garnish Molding (1) - Install

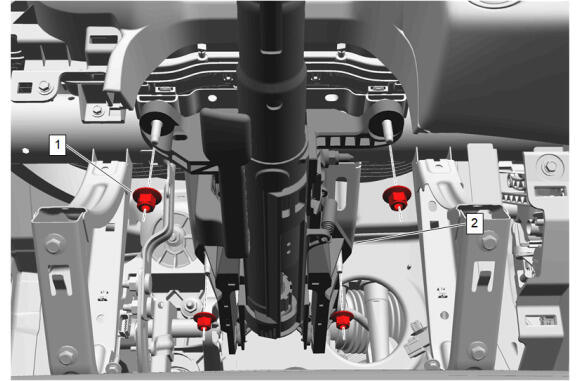

  79. GM5519911Courtesy of GENERAL MOTORS COMPANY

    Steering Column (2) - Install

  80. Connect the electrical connectors attached to the steering column.
  81. Steering Column Nut (1) - Install and tighten [ 4x ] - Fastener Specifications
  82. GM5525655Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (2) - Install

  83. Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

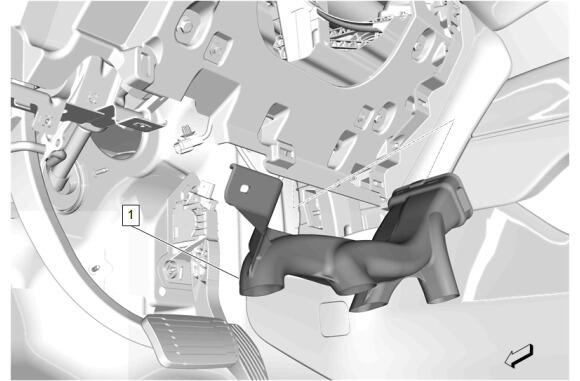

  84. GM5519906Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Upon installing the floor duct to the side of the HVAC case, it is necessary to verify duct opening is completely installed, surrounding the HVAC case outlet port. Failure to do so could result in the duct falling downward, with the potential to interfere with driver's legs and gas/brake pedal operation.

    Floor Front Air Outlet Duct - Left Side (1) - Install

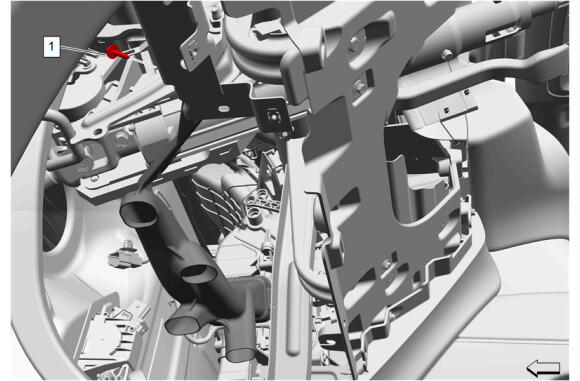

  85. GM5519904Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

  86. GM5520387Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (1) - Install

  87. GM5520386Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Insulator Retainer (1) - Install [ 2x ]

  88. GM5517090Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install

  89. GM5517088Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

  90. Hood Primary Latch Release Cable Handle (1) - Install
  91. GM5517140Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  92. Instrument Panel Switch Trim Plate (2) - Install
  93. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
  94. GM5517141Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  95. Instrument Panel Trim Pad (2) - Install
  96. Instrument Panel Trim Pad Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  97. GM5517142Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  98. GM5517144Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  99. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install

  100. Remove the device used to prevent steering column rotation.
  101. GM5569163Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)

  102. Enable the SIR System. SIR Disabling and Enabling
