Installation Procedure

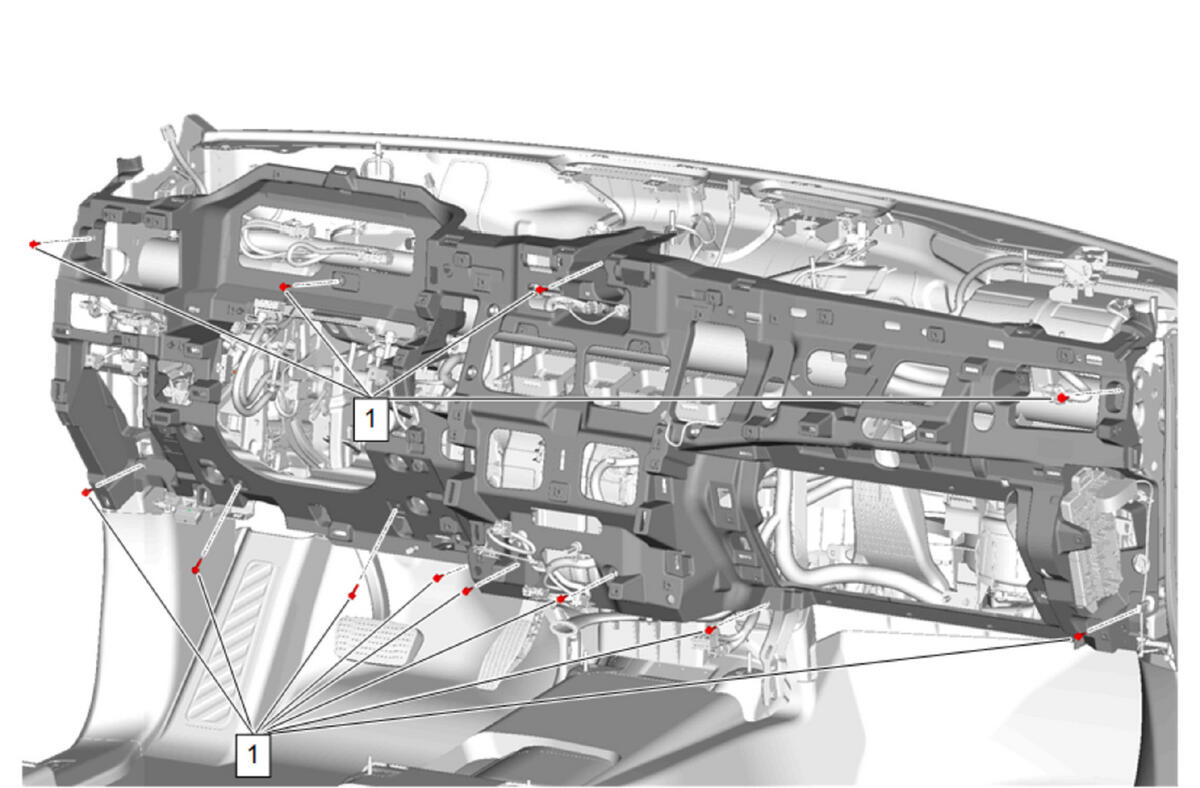

Instrument Panel Carrier (1) - Install
- Connect and position the wiring harness.
- CAUTION:
Refer to Fastener Caution .
Instrument Panel Carrier Bolt (1) - Install and tighten [ 12x ] - Fastener Specifications
- Install the fuse block and connect the harness as noted when removed.

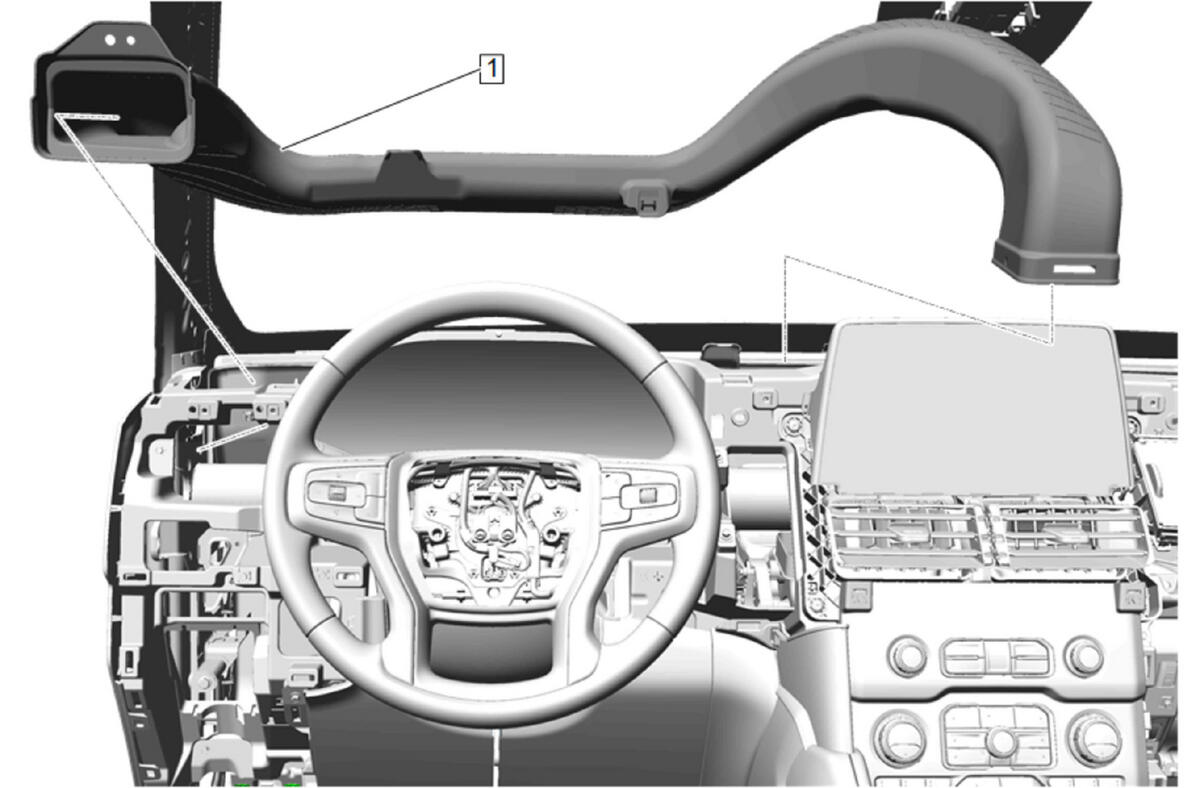

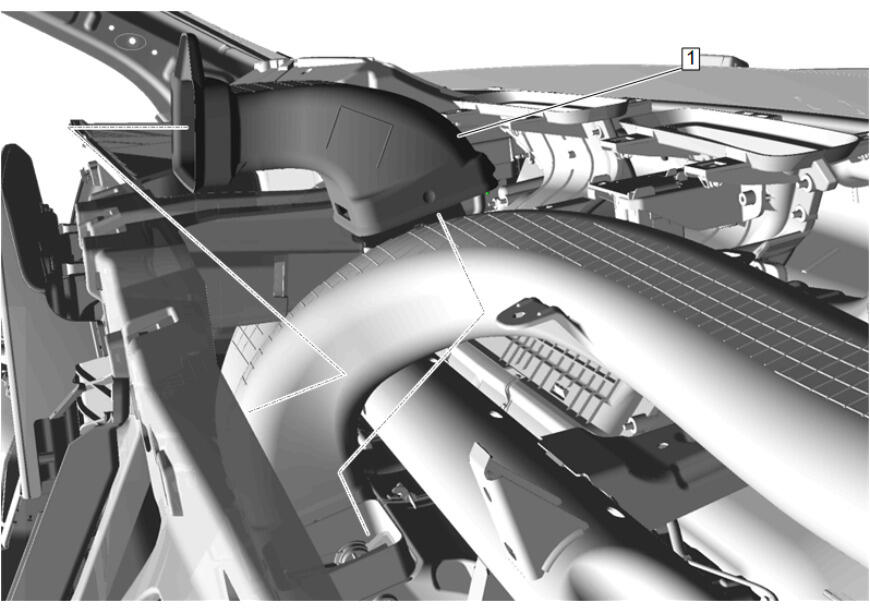

Instrument Panel Outer Air Outlet Duct - Left Side (1) - Install

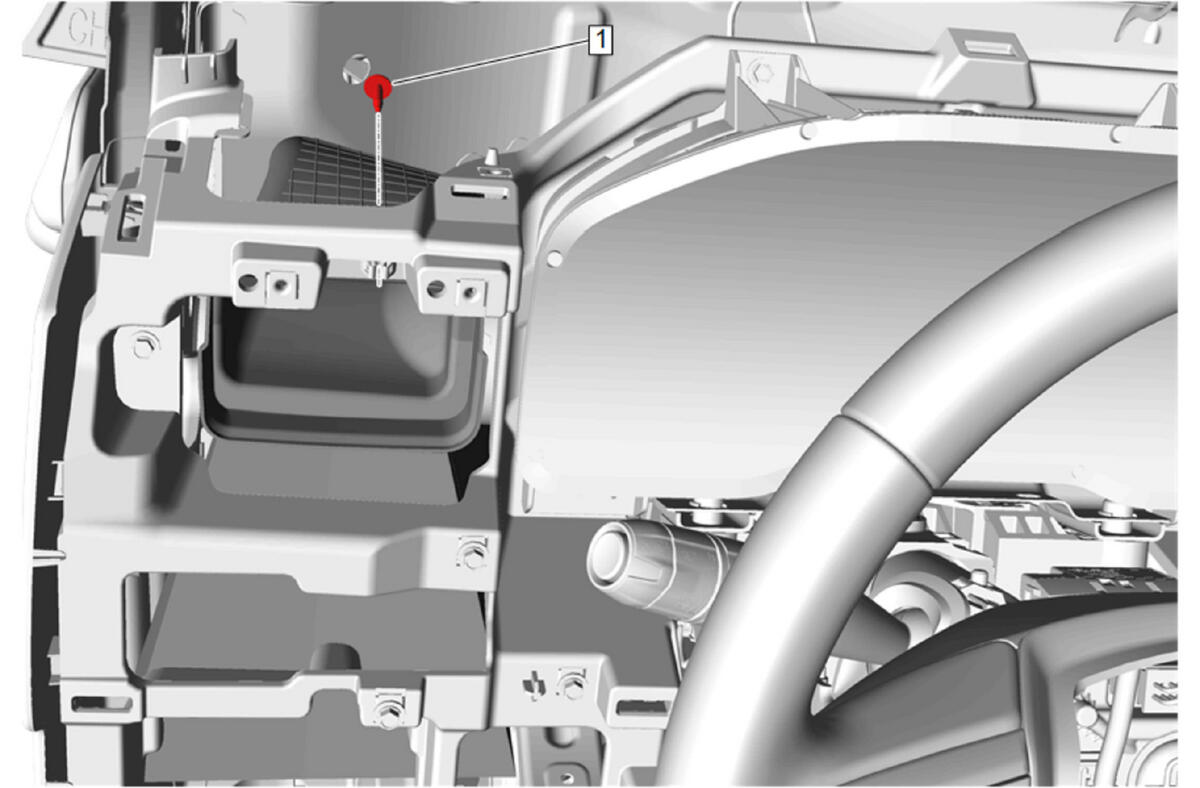

Instrument Panel Outer Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

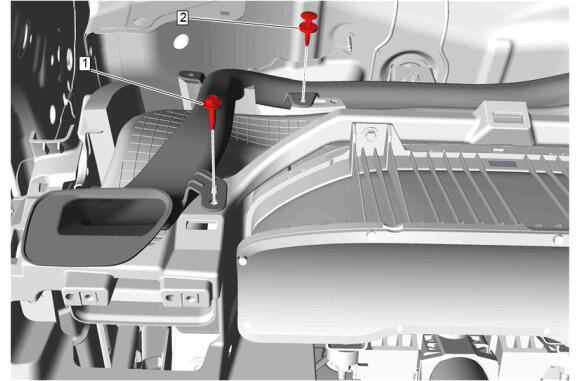

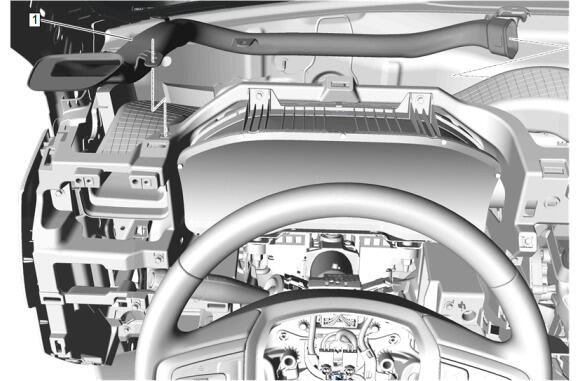

Side Window Defogger Outlet Duct - Left Side (1) - Install
Side Window Defogger Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
- Side Window Defogger Outlet Duct Retainer (2) - Install

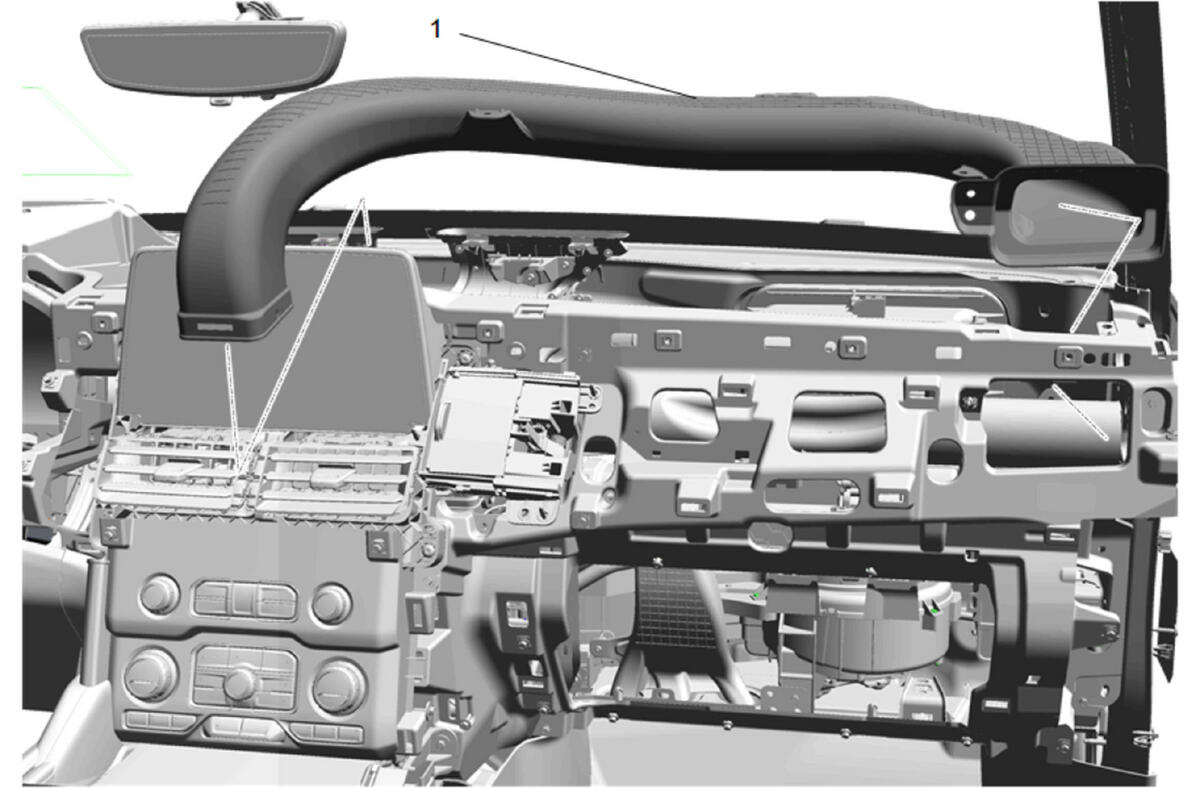

Instrument Panel Outer Air Outlet Duct - Right Side (1) - Install
Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
- Install the wiring harness retainers onto the right instrument panel outer air outlet duct.

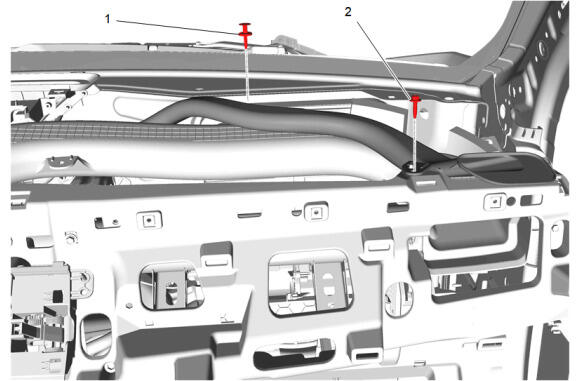

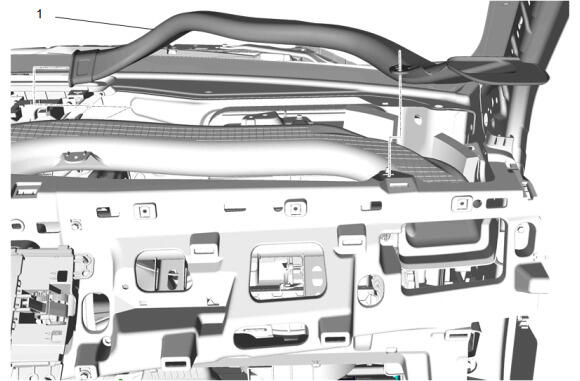

Side Window Defogger Outlet Duct - Right Side (1) - Install
Side Window Defogger Outlet Duct Bolt (2) - Install and tighten - Fastener Specifications
- Side Window Defogger Outlet Duct Retainer (1) - Install

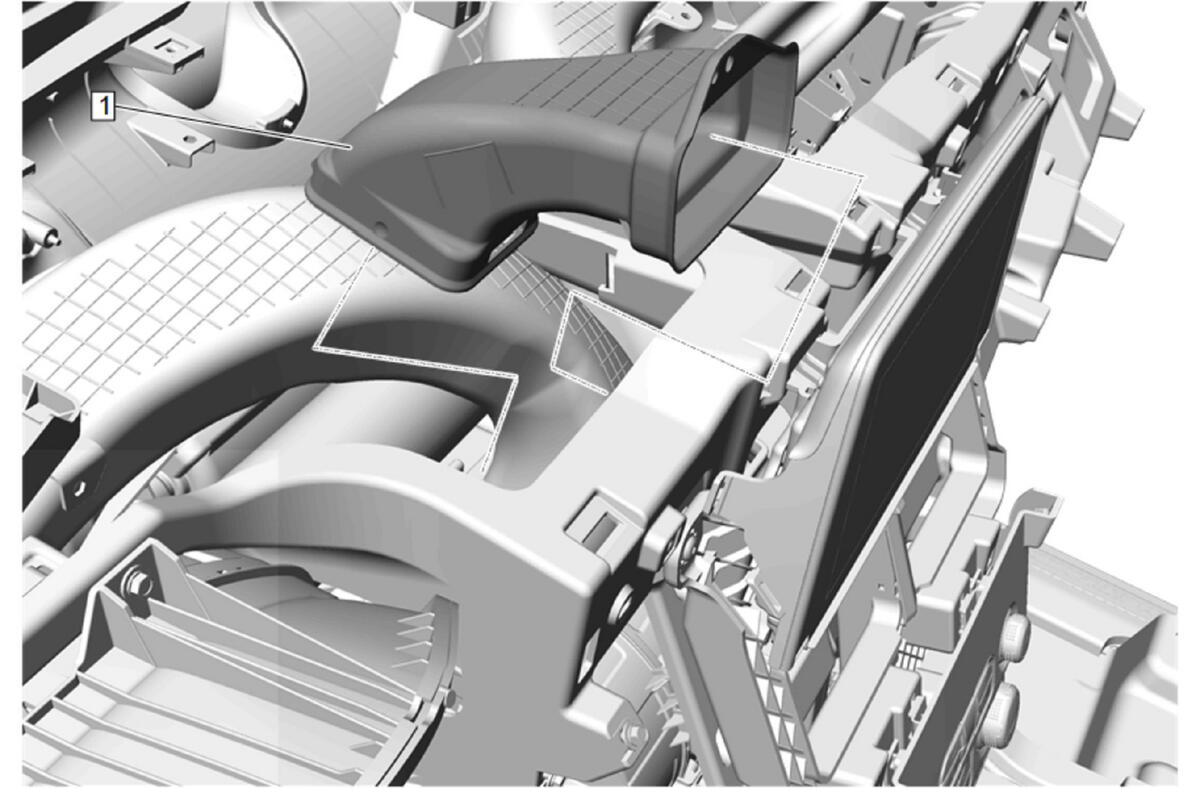

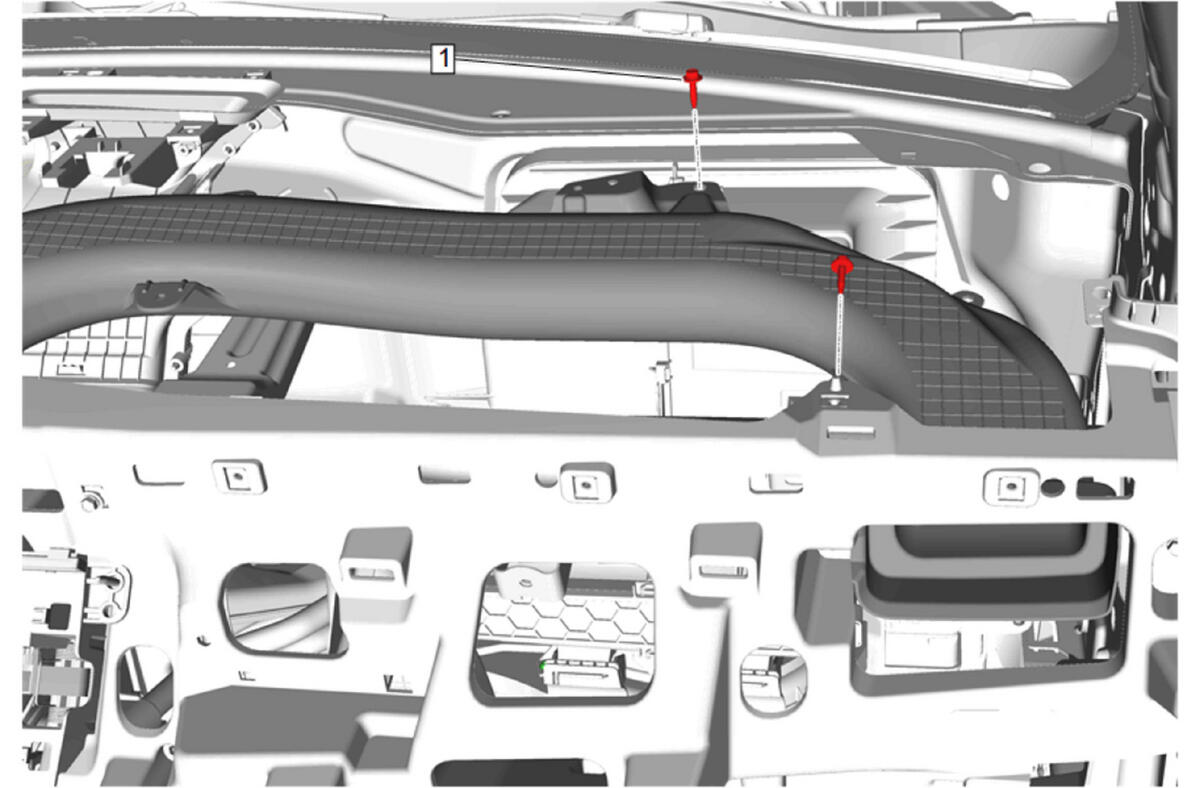

Instrument Panel Center Air Outlet Duct - Left Side (1) - Install

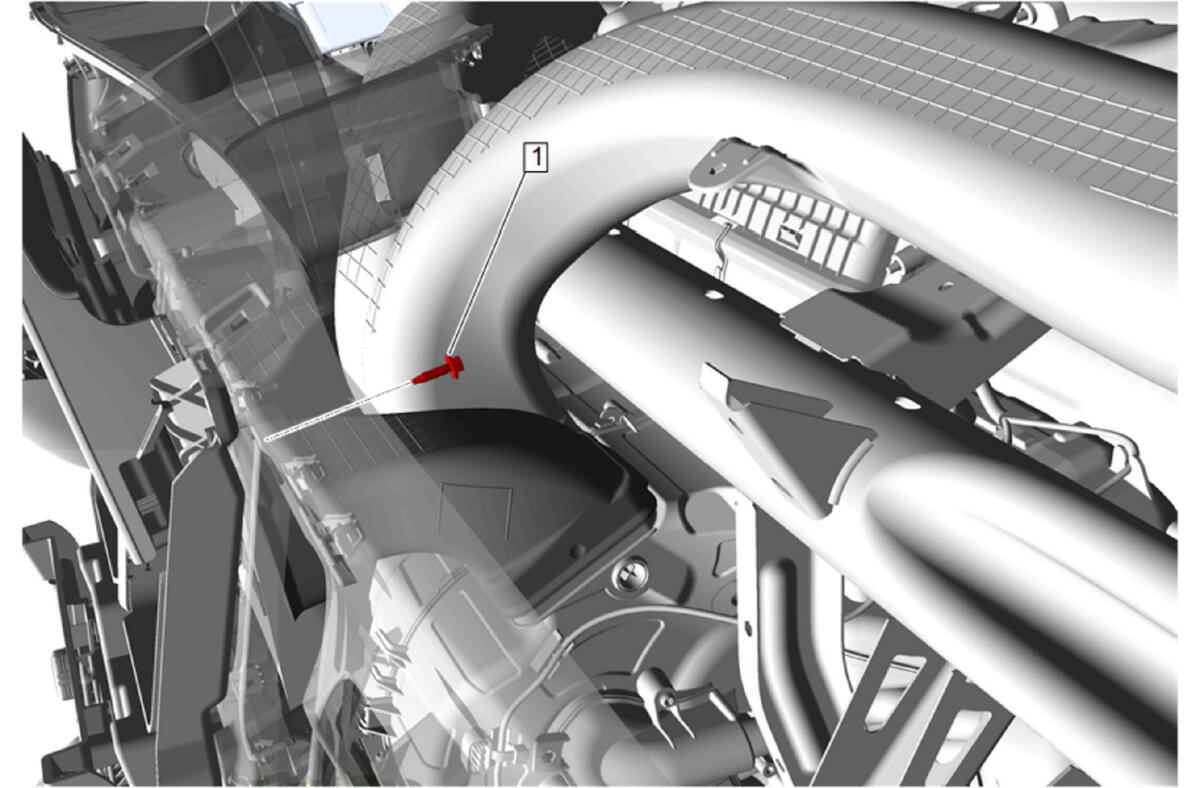

Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
Instrument Panel Center Air Outlet Duct - Right Side (1) - Install

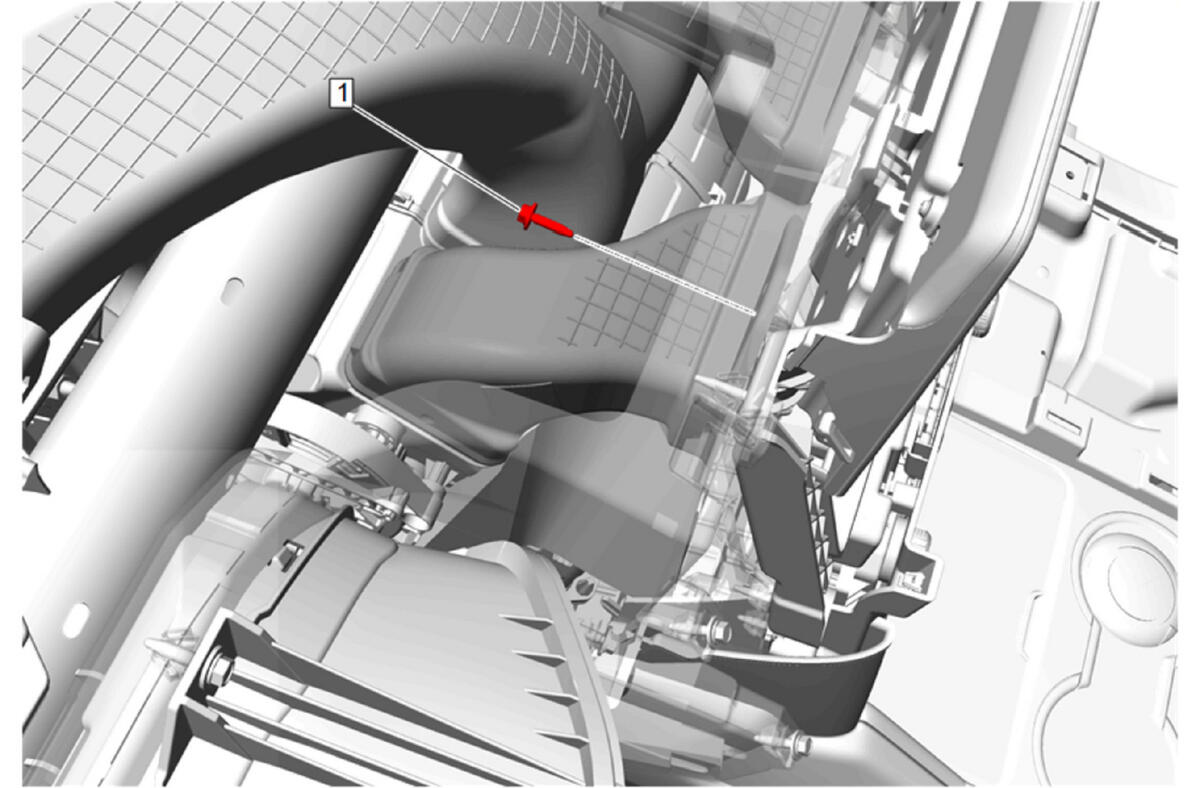

Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
Instrument Panel Lower Trim Panel (2) - Install
- Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Connect the electrical connectors.

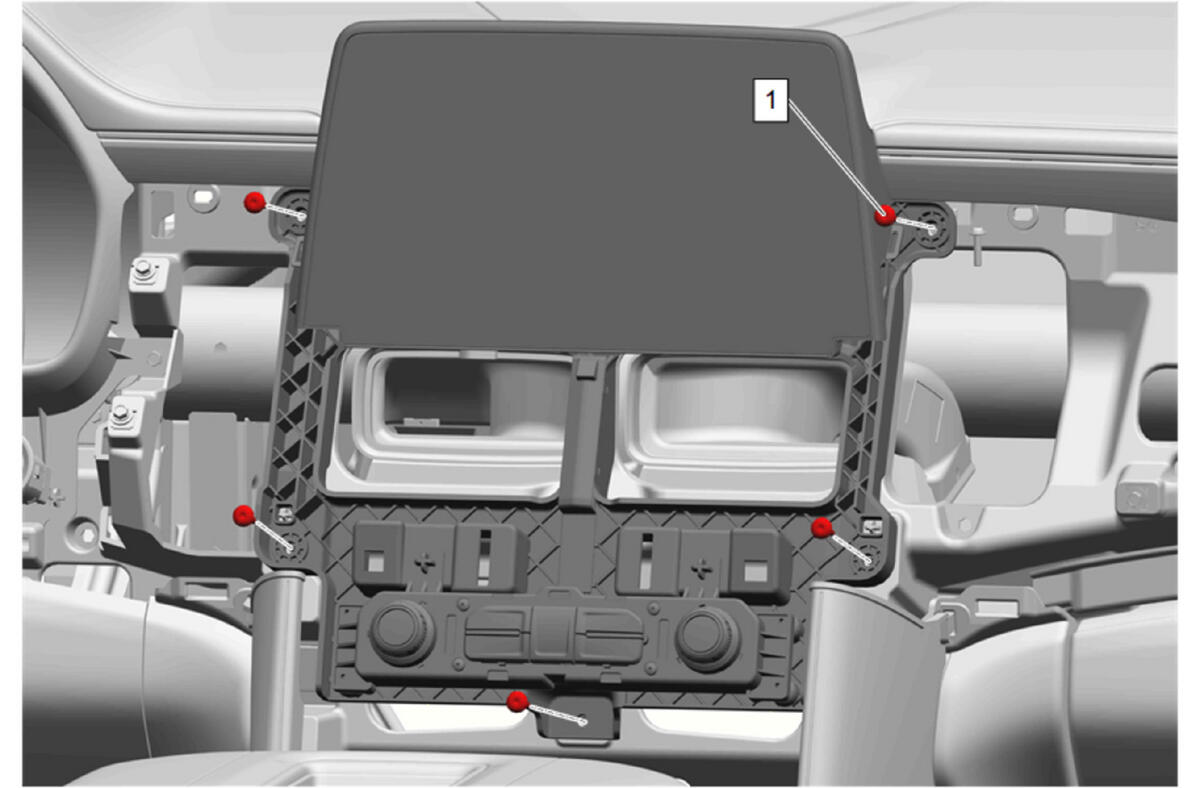

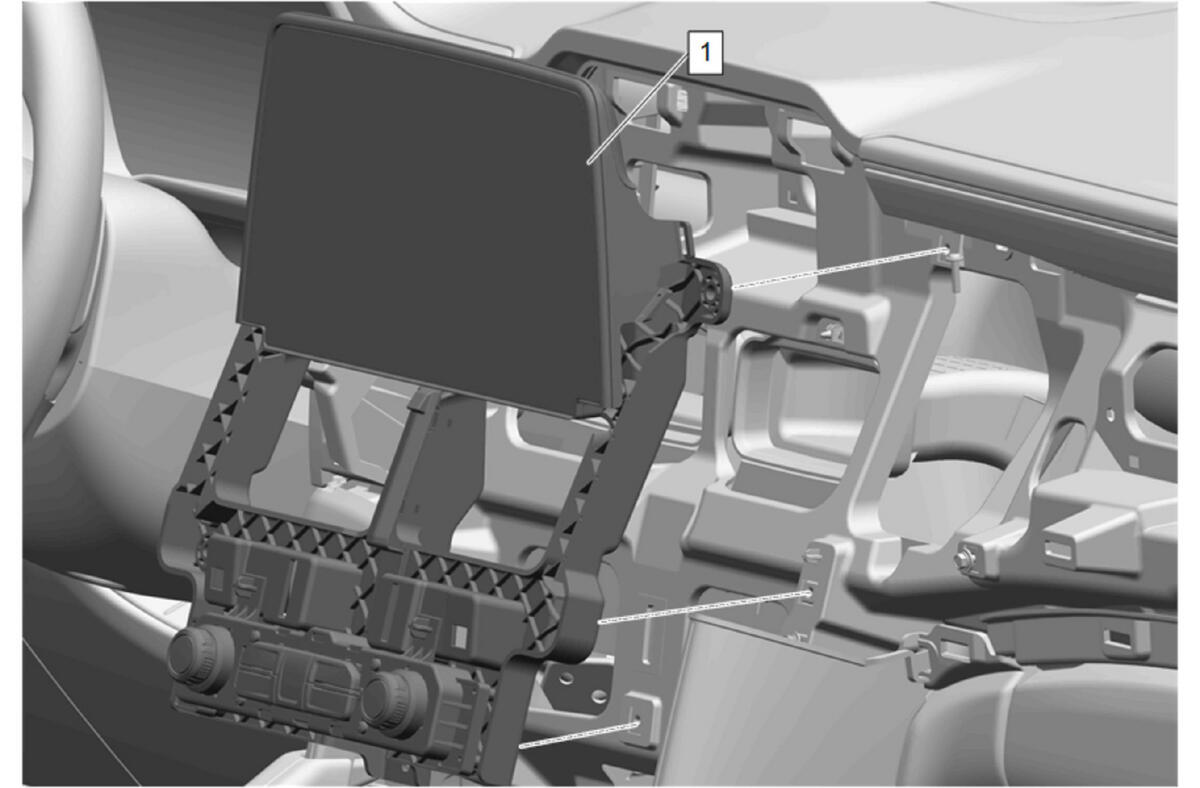

- Radio Control (1) - Install
Radio Control Bolt (1) - Install and tighten [ 5x ] - Fastener Specifications
Connect the electrical connectors.
- Instrument Panel Accessory Bezel (2) - Install
- Instrument Panel Accessory Bezel Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
Instrument Panel Lower Center Trim Plate Applique (2) - Install
- Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Instrument Panel Compartment (1) - Install
Instrument Panel Compartment Bolt (1) - Install and tighten [ 10x ] - Fastener Specifications
Instrument Panel Lower Trim Panel (1) - Install
Instrument Panel Lower Center Trim Plate Applique (2) - Install
- Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Instrument Panel Lower Trim Panel Outer Filler (2) - Install
- Instrument Panel Compartment Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Connect the electrical connectors.

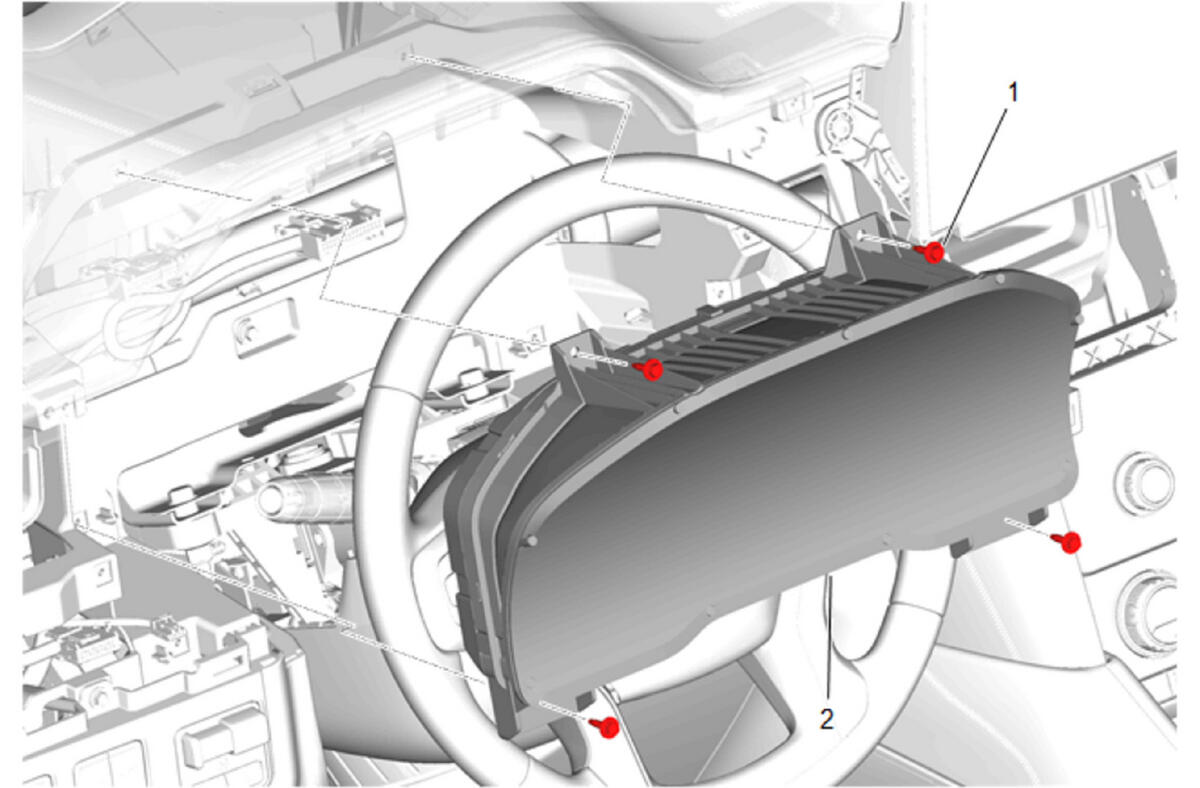

- Instrument Cluster (2) - Install
- Instrument Cluster Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
Instrument Panel Cluster Trim Plate (2) - Install
- Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Removal and Installation (without Denali)

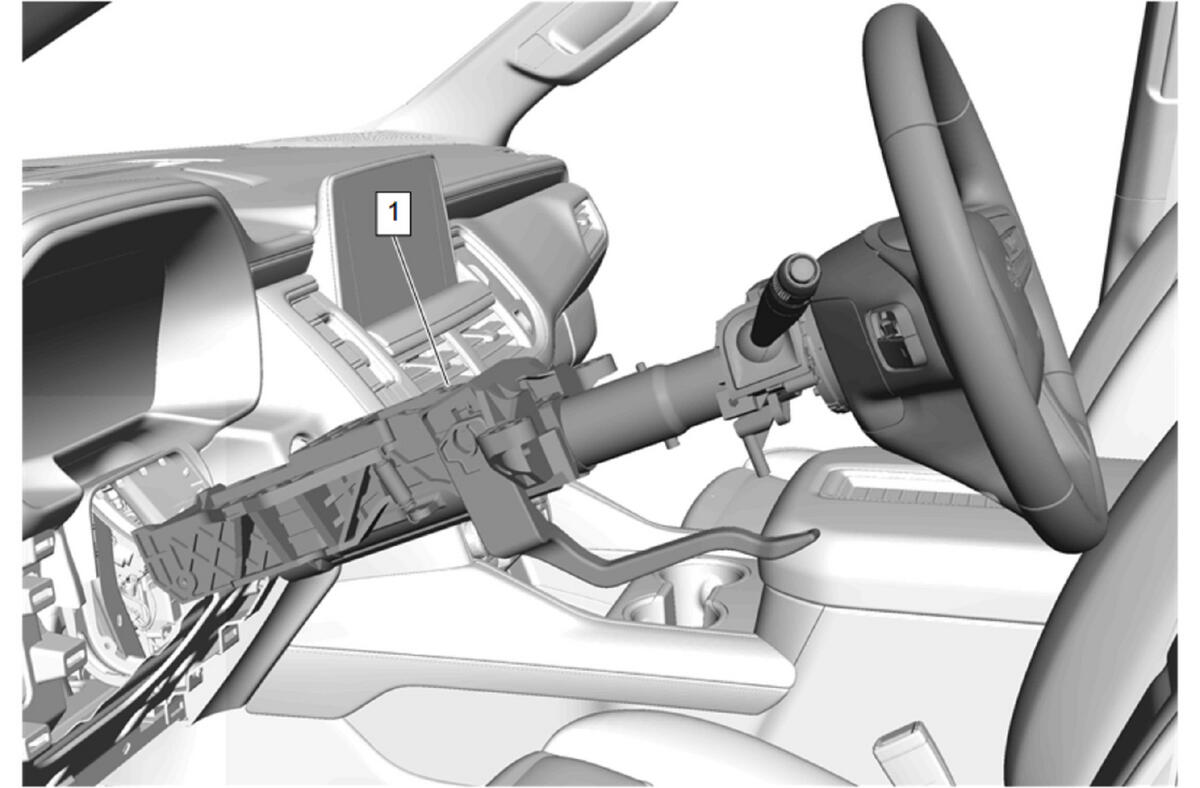

Steering Column (1) - Install - Steering Column Removal and Installation (without Denali) , or Steering Column Removal and Installation (with Denali)

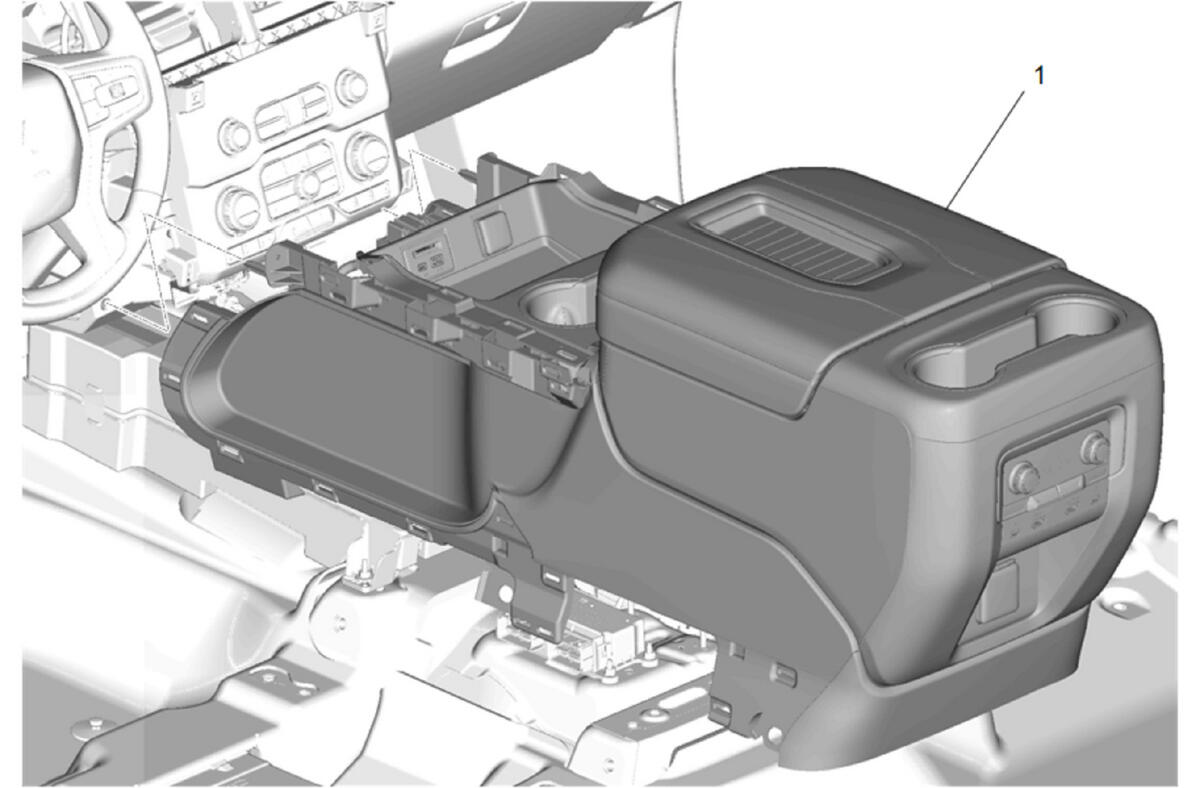

Front Floor Console (1) - Install - Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
- Enable the SIR System. SIR Disabling and Enabling
