Installation Procedure

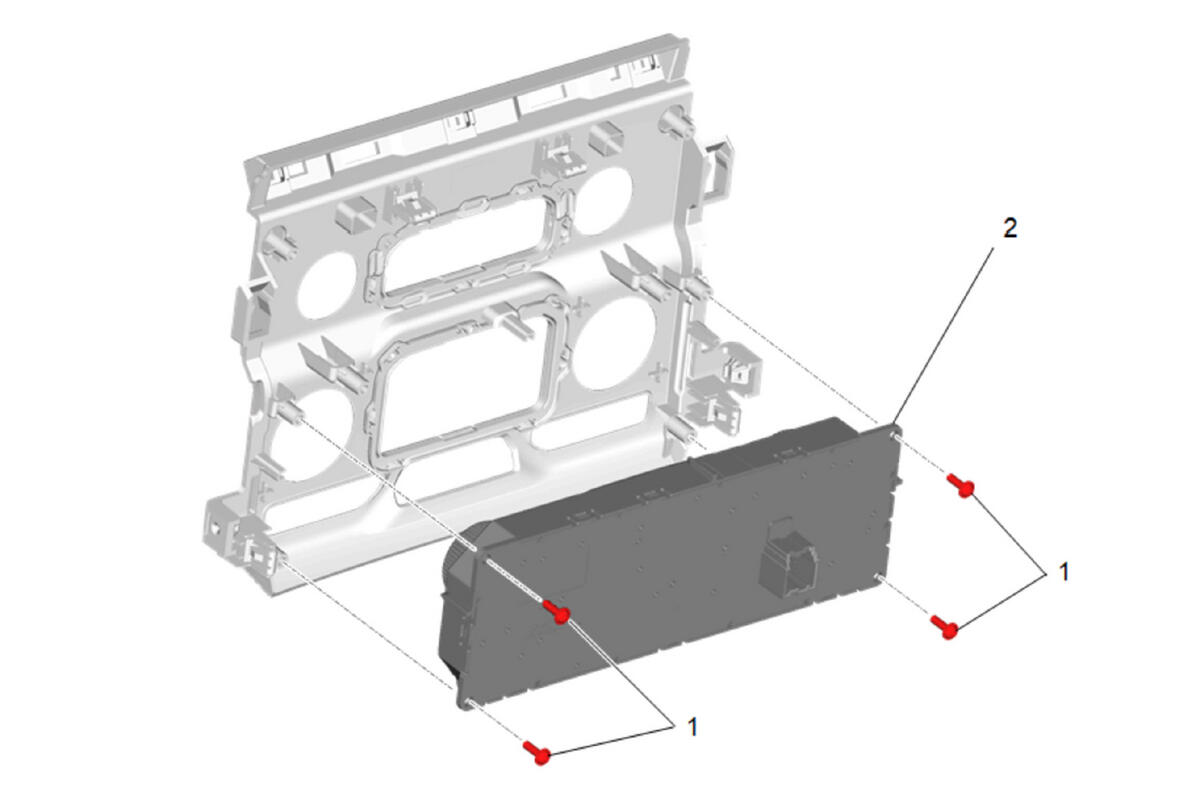

  1. GM5605365Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Heater and Air Conditioning User Interface Control Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

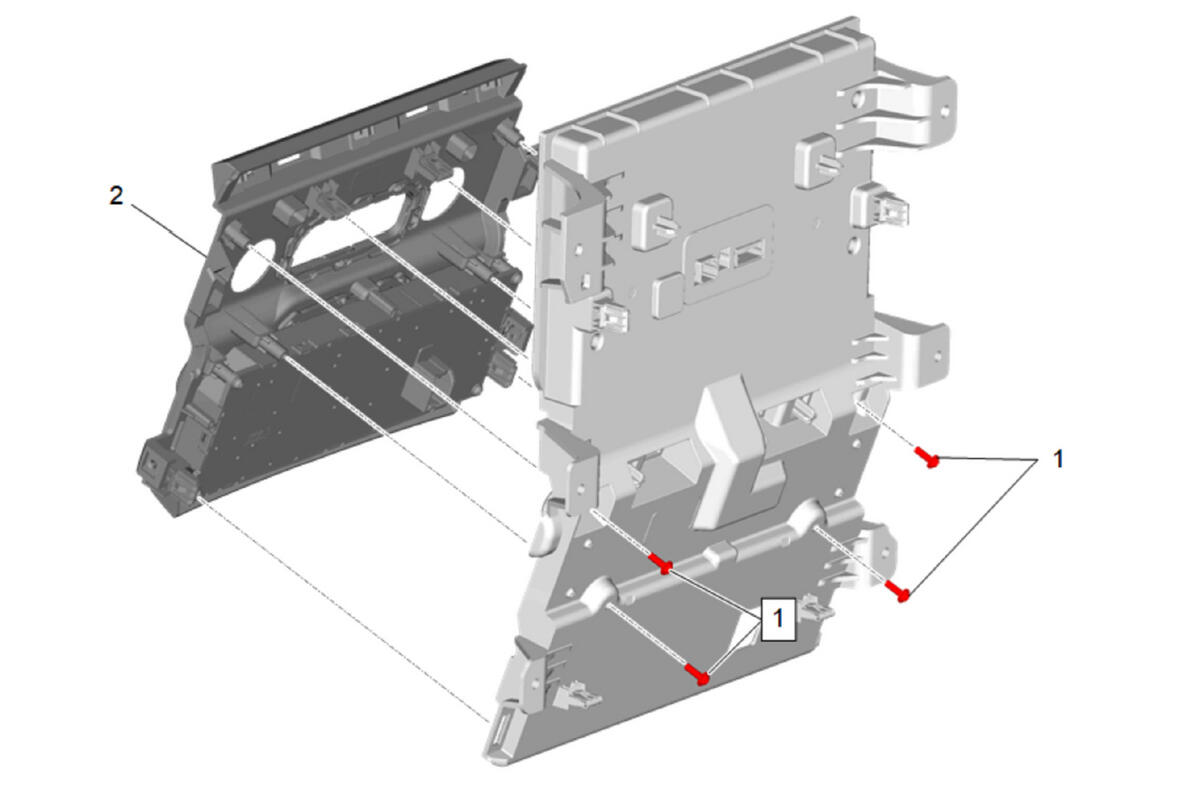

  3. GM5605363Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Bezel (2) - Install

  4. Radio Control Bracket Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  5. GM5591124Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  6. Radio Control (1) - Install
  7. GM5591123Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bolt (1) - Install and tighten [ 5x ] - Fastener Specifications

  8. GM5608203Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  9. Electronic Transmission Shift Control Pushbutton (2) - Install
  10. Electronic Transmission Shift Control Pushbutton Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  11. GM5605214Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Transmission Shift Opening Cover (2) - Install

  12. Instrument Panel Accessory Bezel Bolt (1) - Install and tighten - Fastener Specifications
  13. GM5605290Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (2) - Install

  14. Instrument Panel Accessory Trim Plate Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  15. GM5599068Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (2) - Install

  16. Instrument Panel Bolt (1) - Install and tighten [ 5x ] - Fastener Specifications
  17. GM5598941Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  18. Instrument Panel Trim Pad (2) - Install
  19. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  20. GM5598940Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  21. GM5604951Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  22. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  23. GM5604837Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  24. GM5604950Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  25. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  26. GM5604836Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install
