Fastener Specifications

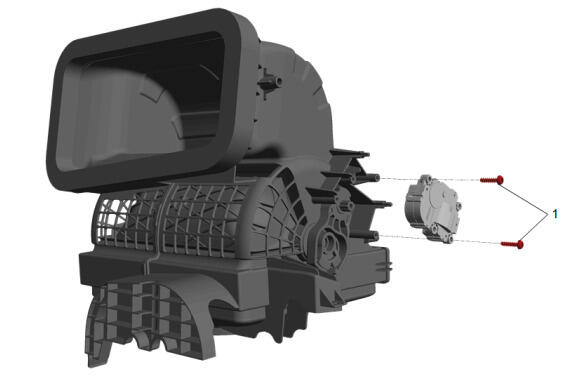

GM5599053Courtesy of GENERAL MOTORS COMPANY
Air Inlet Valve Actuator

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [ 2x ] - - 1.2 N.m (11 lb/in) Air Inlet Valve Actuator Replacement (without Denali) , or Air Inlet Valve Actuator Replacement (with Denali)

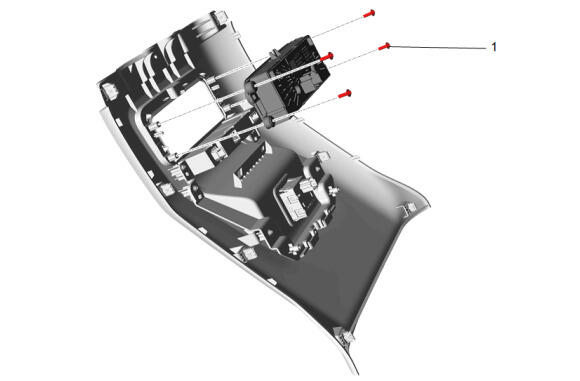

GM5599056Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Auxiliary Control

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Heater and Air Conditioning Control Bolt [ 4x ] - - 0.8 N.m (7 lb/in) Heater and Air Conditioning Auxiliary Control Replacement

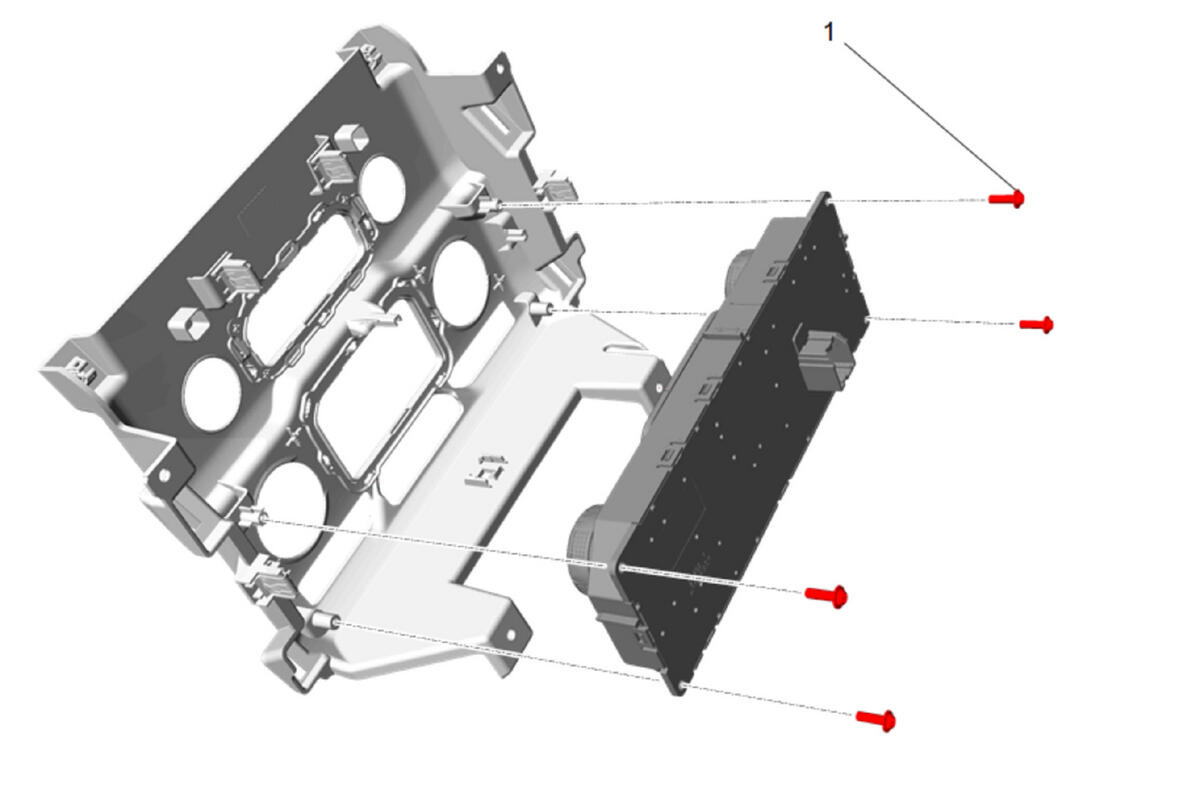

GM5599058Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning User Interface Control

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning User Interface Control Bolt [ 4x ] - - 1.5 N.m (13 lb/in) Heater and Air Conditioning User Interface Control Replacement (without Denali with DCH) , or Heater and Air Conditioning User Interface Control Replacement (with Denali) , or Heater and Air Conditioning User Interface Control Replacement (without Denali with D07)

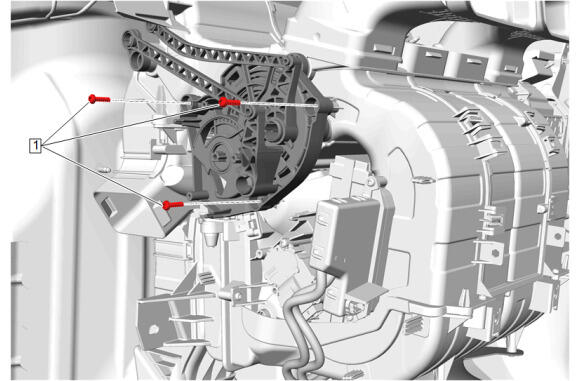

GM5599064Courtesy of GENERAL MOTORS COMPANY
Mode Control Cam

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [ 3x ] - - 1.2 N.m (11 lb/in) Mode Control Cam Replacement

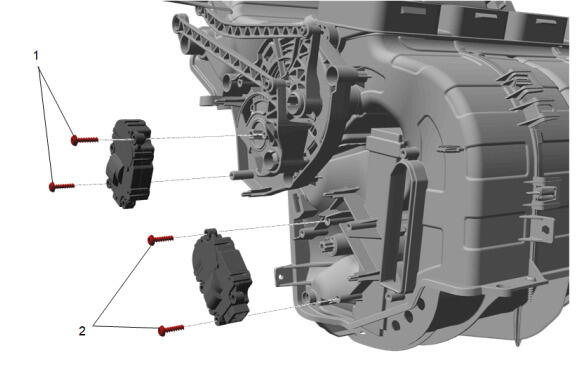

GM5599067Courtesy of GENERAL MOTORS COMPANY
Mode Valve Actuator and Temperature Valve Actuator - Left side

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [ 2x ] - - 1.2 N.m (11 lb/in) Mode Valve Actuator Replacement
2 Heater and Air Conditioning Evaporator and Blower Module Bolt [ 2x ] - - 1.2 N.m (11 lb/in) Temperature Valve Actuator Replacement - Left Side (without Denali) , or Temperature Valve Actuator Replacement - Left Side (with Denali)

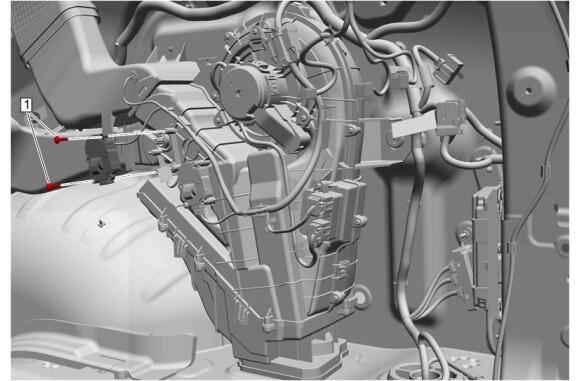

GM5599072Courtesy of GENERAL MOTORS COMPANY
Rear Programmable Mode Valve Actuator - (C69)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Auxiliary Air Conditioning Evaporator and Blower Module Bolt [ 2x ] - - 1.2 N.m (11 lb/in) Rear Programmable Mode Valve Actuator Replacement (C69)

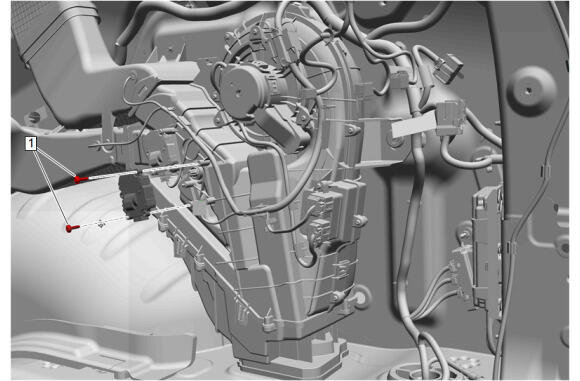

GM5599075Courtesy of GENERAL MOTORS COMPANY
Rear Programmable Temperature Valve Actuator - (C69)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator and Blower Module Bolt [ 2x ] - - 1.2 N.m (11 lb/in) Rear Programmable Temperature Valve Actuator Replacement (C69)

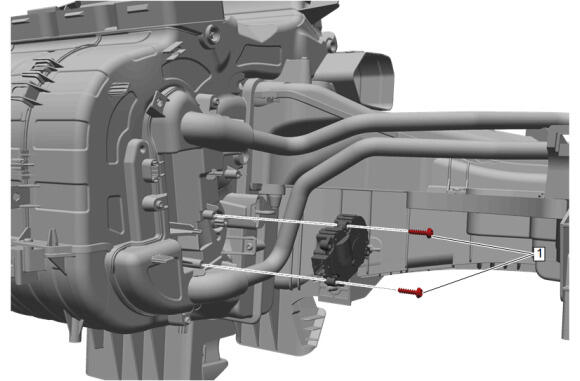

GM5599077Courtesy of GENERAL MOTORS COMPANY
Temperature Valve Actuator Replacement - Right Side

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [ 2x ] - - 1.2 N.m (11 lb/in) Temperature Valve Actuator Replacement - Right Side (without Denali) , or Temperature Valve Actuator Replacement - Right Side (with Denali)
