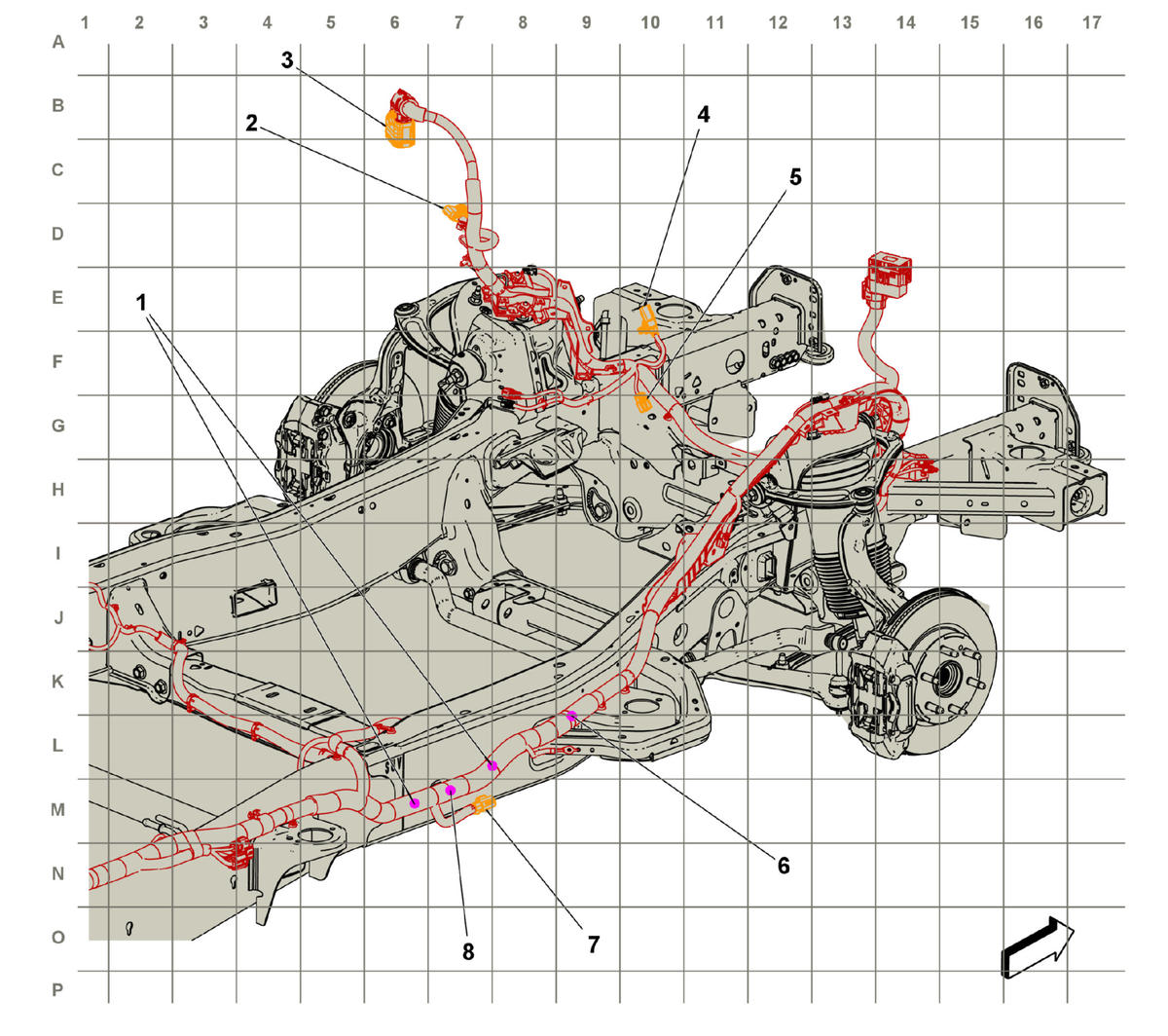

Vehicle Underbody - Chassis Harness - Front (SWB)
Vehicle Underbody - Chassis Harness - Front (SWB)
| Harness Name | Callout |
|---|---|
| J372 Chassis Harness | 1 |
| X138 Body Harness to Chassis Harness X138 Body Harness to Chassis Harness | 2 |
| X140 Chassis Harness to Body Harness X140 Chassis Harness to Body Harness | 3 |
| X126 Engine Harness to Chassis Harness X126 Engine Harness to Chassis Harness | 4 |
| X182 Chassis Harness to Power Steering Harness X182 Chassis Harness to Power Steering Harness | 5 |
| J370 Chassis Harness | 6 |
| X337 Right Assist Step Harness to Chassis Harness (B3L) X337 Left Assist Step to Chassis Harness (B3L) | 7 |
| J371 Chassis Harness | 8 |
