X182 Chassis Harness to Power Steering Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

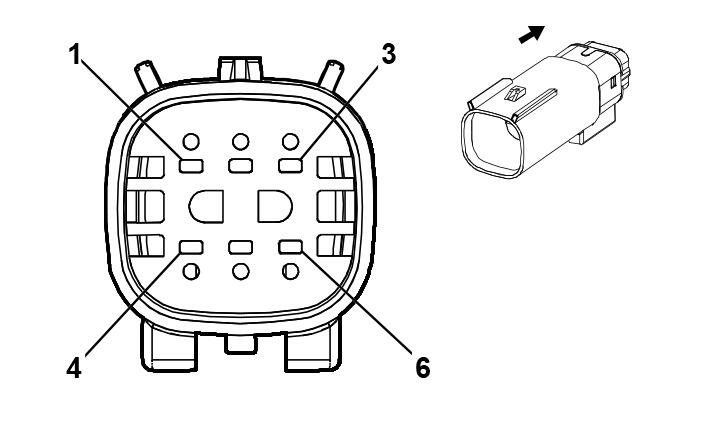

Connector Part Information
- Harness Type: Chassis
- OEM Connector: 35147566
- Service Connector: 19352902
- Description: 6-Way F 1.5 MX Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Power Steering
- OEM Connector: Not Available
- Service Connector: Service by Harness -
- Description: 6-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| II |
Not required |
J-35616-3 (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU |
4987 |
I |
- |
AUTOSAR CAN Bus [+] 1 Serial Data |
1 |
0.5 |
WH/BU |
4987 |
II |
- |
| 2 - 5 |
- |
- |
- |
- |
- |
Not Occupied |
2 - 5 |
- |
- |
- |
- |
- |
| 6 |
0.5 |
WH |
4986 |
I |
- |
AUTOSAR CAN Bus [-] 1 Serial Data |
6 |
0.5 |
BU/WH |
4986 |
II |
- |
