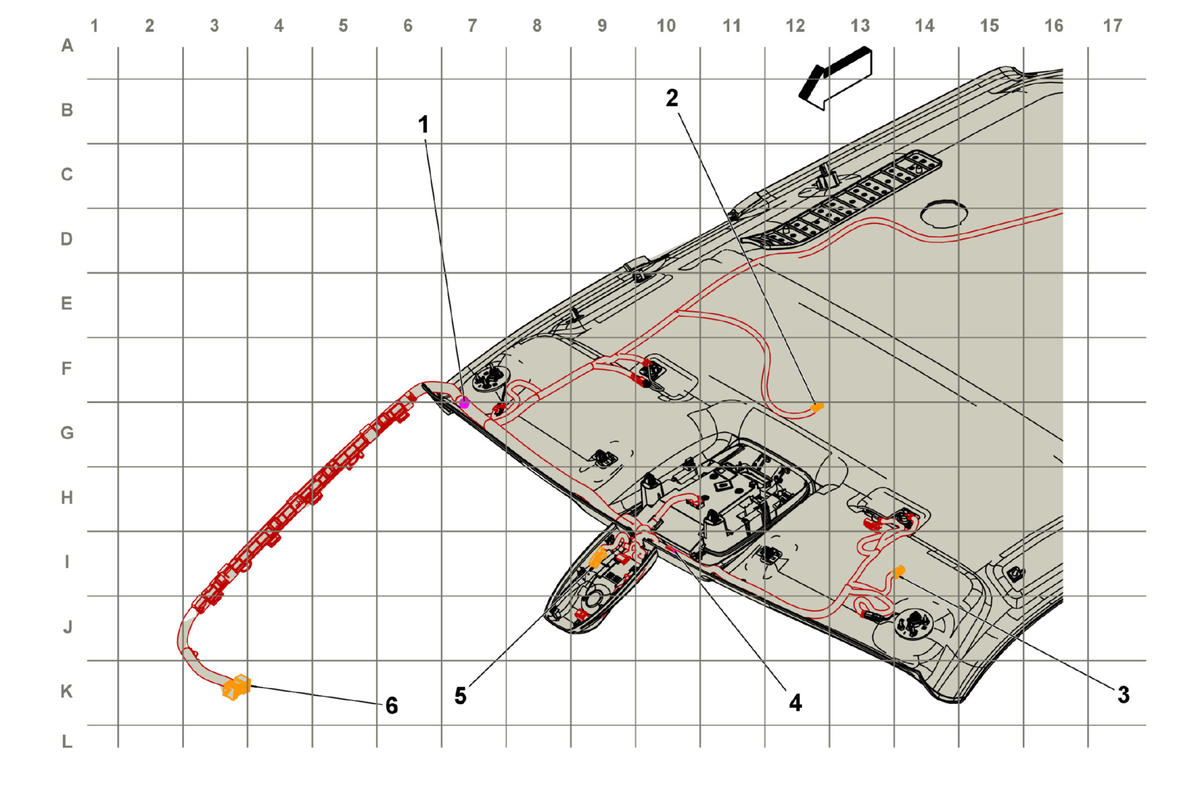

Roof - Headliner Harness (without C3U)
Roof - Headliner Harness (without C3U)
| Harness Name | Callout |
|---|---|
| J383 Headliner Harness | 1 |
| X315 Headliner Harness to Microphone Provisional Harness (5W4/9C1) X315 Headliner Harness to Microphone Provisional (5W4/9C1) | 2 |
| X313 Headliner Harness to Microphone Provisional Harness (5W4/9C1) X313 Headliner Harness to Microphone Provisional (5W4/9C1) | 3 |
| J380 Headliner Harness | 4 |
| X318 Rain Sensor Jumper Harness to Headliner Harness (C3U) X318 Rain Sensor Jumper Harness to Headliner Harness | 5 |
| X270 Headliner Harness to Instrument Panel Harness X270 Headliner Harness to Instrument Panel Harness | 6 |
