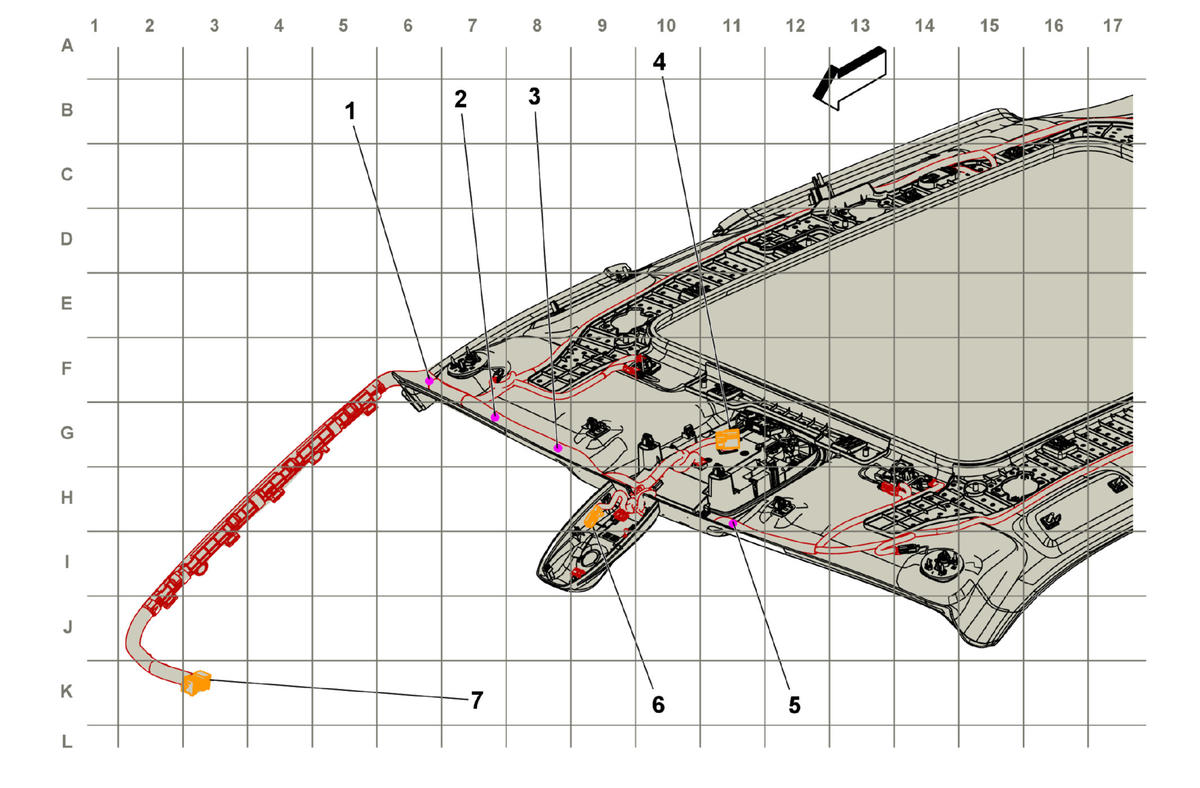

Roof - Headliner Harness (C3U)
Roof - Headliner Harness (C3U)
| Harness Name | Callout |
|---|---|
| J380 Headliner Harness | 1 |
| J381 Headliner Harness | 2 |
| J382 Headliner Harness (C3U) | 3 |
| X324 Sunroof Harness to Headliner Harness (C3U) X324 Sunroof Harness to Headliner Harness (C3U) | 4 |
| J383 Headliner Harness | 5 |
| X318 Rain Sensor Jumper Harness to Headliner Harness (C3U) X318 Rain Sensor Jumper Harness to Headliner Harness | 6 |
| X270 Headliner Harness to Instrument Panel Harness X270 Headliner Harness to Instrument Panel Harness | 7 |
