Passenger Compartment - Front Center Seat Harness (AZ3)

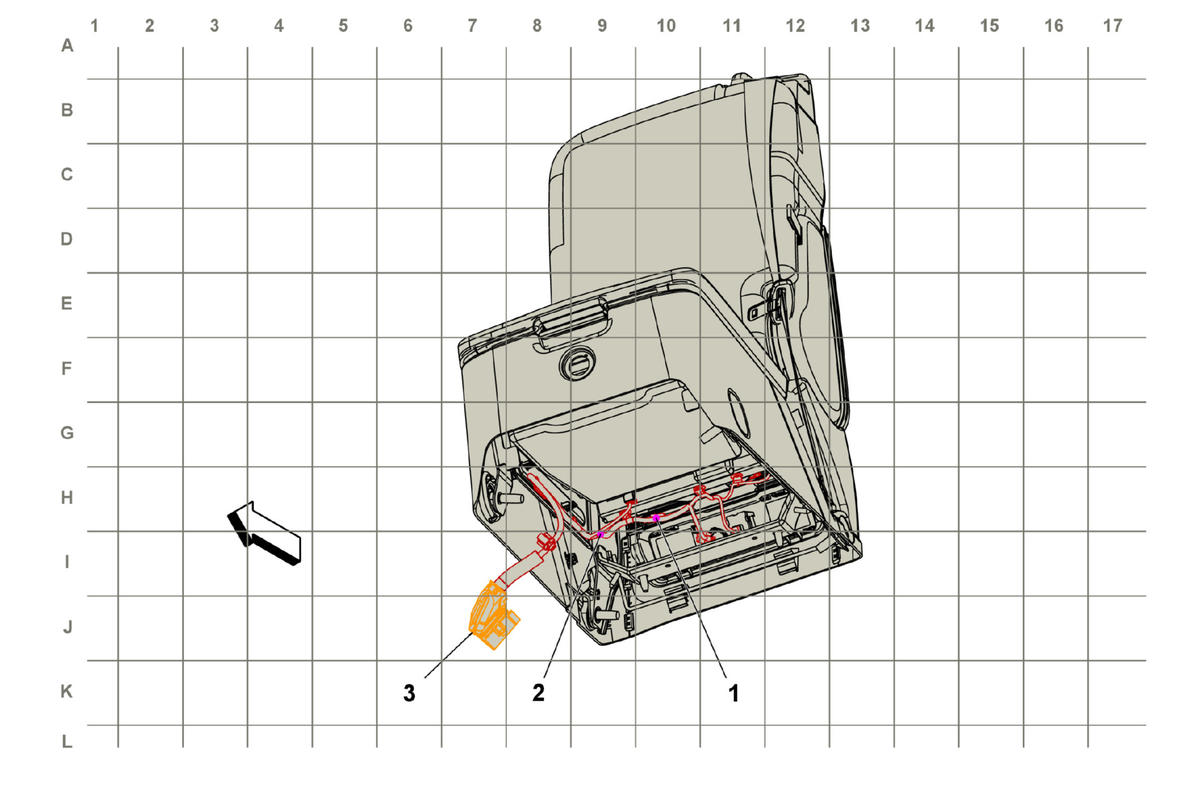

GM5834965Courtesy of GENERAL MOTORS COMPANY
Passenger Compartment - Front Center Seat Harness (AZ3)

Harness Name Callout
J301 Floor Console 1
J300 Floor Console 2
X255 Floor Console Harness to Instrument Panel Harness (USR) X255 Floor Console to Instrument Panel (USR) 3
