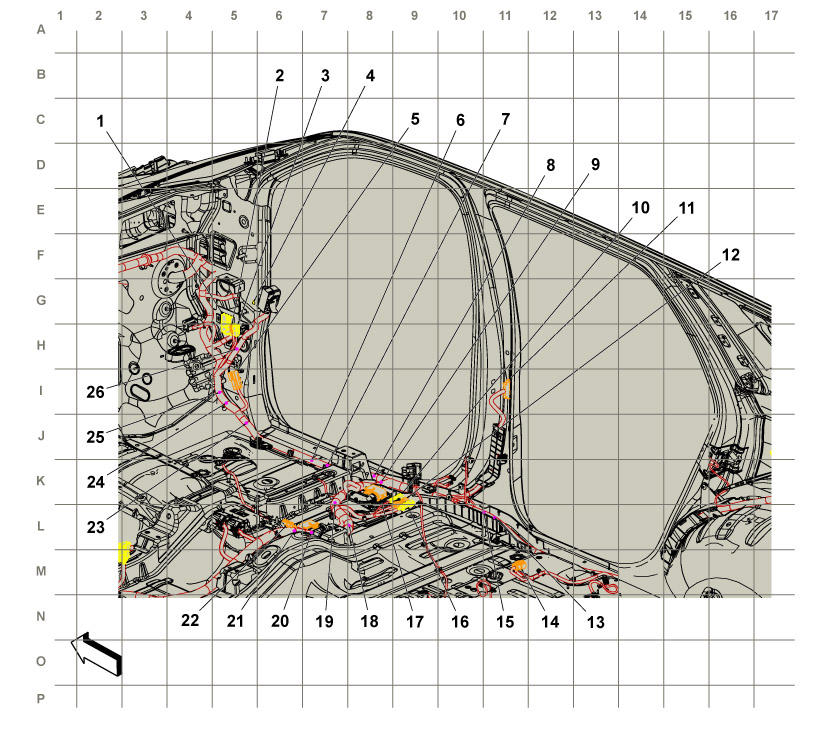

Passenger Compartment - Body Harness - Right (-5W4-9C1)
Passenger Compartment - Body Harness - Right (-5W4-9C1)
| Items |
|---|
| 1. X275 Instrument Panel Harness to Body Harness X275 Instrument Panel Harness to Body Harness |
| 2. X216 Instrument Panel Harness to Body Harness X216 Instrument Panel to Body (UV2) , or X216 Instrument Panel to Body (UVB) . |
| 3. X214 Instrument Panel Harness to Body Harness (UW9) X214 Instrument Panel Harness to Body Harness |
| 4. X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness |
| 5. X218 Body Harness to Body Harness (C3A) X218 Body Harness to Body Harness (C3A) |
| 6. J407 Body Harness |
| 7. J353 Body Harness |
| 8. J266 Body Harness |
| 9. J351 Body Harness (BOP) |
| 10. X322 Passenger Seat Harness to Body Harness (UW9) X322 Passenger Seat Harness to Body Harness (UW9) |
| 11. X800 Right Rear Door Harness to Body Harness X800 Right Rear Door Harness to Body Harness |
| 12. X321 Body Harness to Passenger Seat Harness (UW9) X321 Body Harness to Passenger Seat Harness (UW9) |
| 13. J200 Body Harness |
| 14. X378 Body Harness to 2nd Row Right Seat Harness X378 Body Harness to 2nd Row Right Seat Harness |
| 15. J428 Body Harness |
| 16. X323 Passenger Seat Harness to Body Harness (UW9) X323 Passenger Seat Harness to Body Harness (UW9) |
| 17. X320 Passenger Seat Harness to Body Harness X320 Passenger Seat Harness to Body Harness |
| 18. J361 Body Harness |
| 19. J362 Body Harness (UW9) |
| 20. J358 Body Harness (-5W4-9C1) |
| 21. J357 Body Harness |
| 22. X301 Floor Console Harness to Body Harness (UW9) X301 Floor Console Harness to Body Harness (UW9) |
| 23. J267 Body Harness |
| 24. J332 Body Harness |
| 25. J264 Body Harness |
| 26. J268 Body Harness |
