X323 Passenger Seat Harness to Body Harness (UW9)
 Courtesy of GENERAL MOTORS COMPANY
|
- |

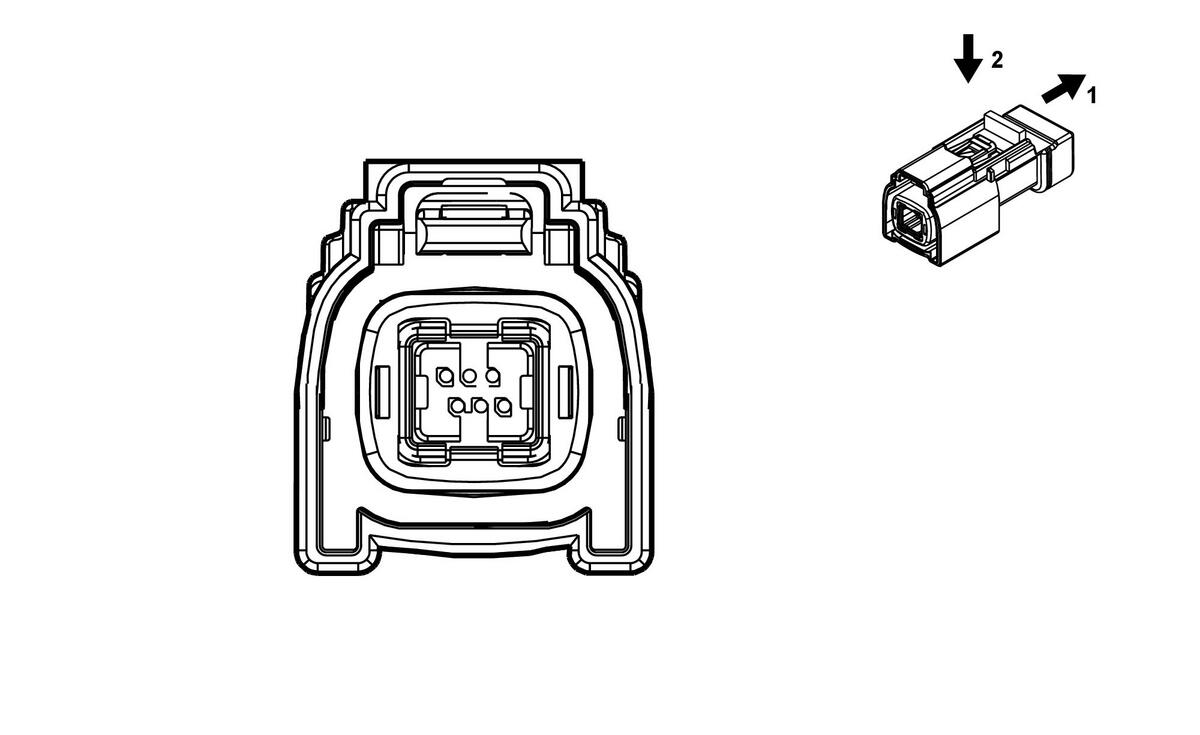

Connector Part Information
- Harness Type: Passenger Seat LVDS
- OEM Connector: 13527114
- Service Connector: Service by Cable Assembly -
- Description: 6-Way F HSAL-2 Series, Sealed (GY)
|
Connector Part Information
- Harness Type: Body LVDS
- OEM Connector: 35350903
- Service Connector: Service by Cable Assembly -
- Description: 6-Way M HSA2 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
LVDS |
- |
I |
- |
Auxiliary Video Signal |
- |
- |
LVDS |
- |
I |
- |
