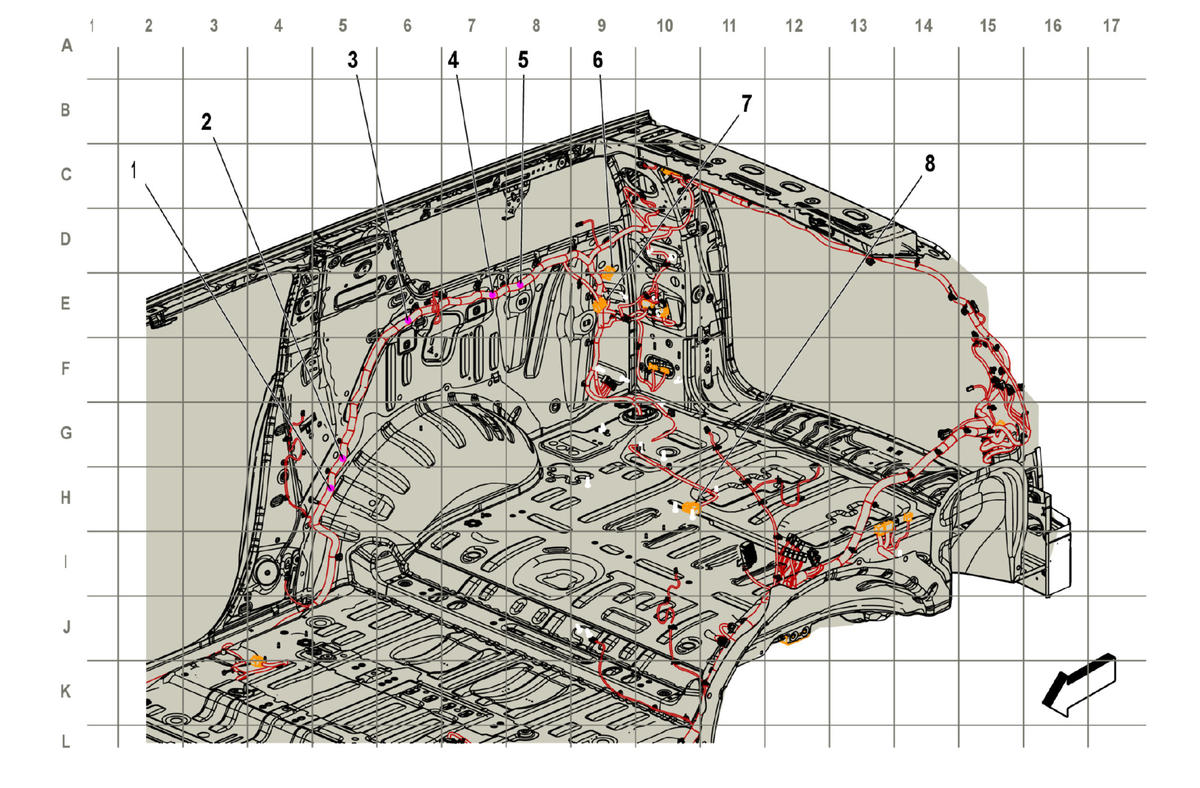

Luggage Compartment - Body Harness - Right (LWB-5W4-9C1)
Luggage Compartment - Body Harness - Right (LWB-5W4-9C1)
| Harness Name | Callout |
|---|---|
| J425 Body Harness | 1 |
| J427 Body Harness | 2 |
| J429 Body Harness | 3 |
| J430 Body Harness | 4 |
| J426 Body Harness (-5W4-9C1) | 5 |
| X419 Body Harness to Power Inverter Module Jumper Harness X419 Body Harness to Power Inverter Module Jumper Harness (KI5) | 6 |
| X418 Body Harness to Auxiliary HVAC Harness (C69) X418 Body Harness to Auxiliary HVAC Harness (C69) | 7 |
| X346 Body Harness to 3rd Row Seat Harness (AS8) X346 Body Harness to 3rd Row Seat Harness (AS8) | 8 |
