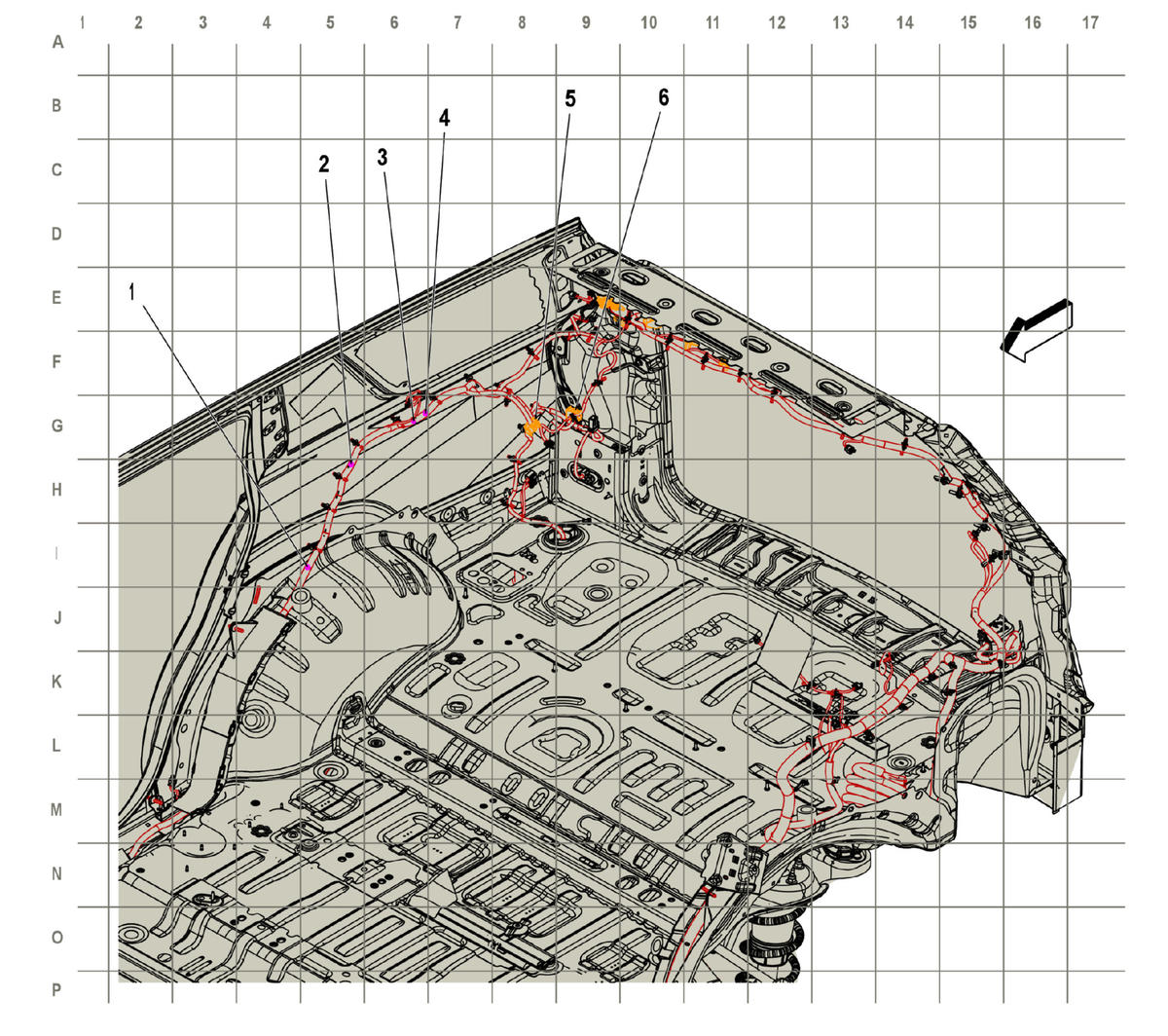

Luggage Compartment - Body Harness - Right (5W4/9C1)
Luggage Compartment - Body Harness - Right (5W4/9C1)
| Harness Name | Callout |
|---|---|
| J432 Body Harness (5W4/9C1) | 1 |
| J435 Body Harness (5W4/9C1) | 2 |
| J429 Body Harness | 3 |
| J430 Body Harness | 4 |
| X418 Body Harness to Auxiliary HVAC Harness (C69) X418 Body Harness to Auxiliary HVAC Harness (C69) | 5 |
| X419 Body Harness to Power Inverter Module Jumper Harness X419 Body Harness to Power Inverter Module Jumper Harness (KI5) | 6 |
