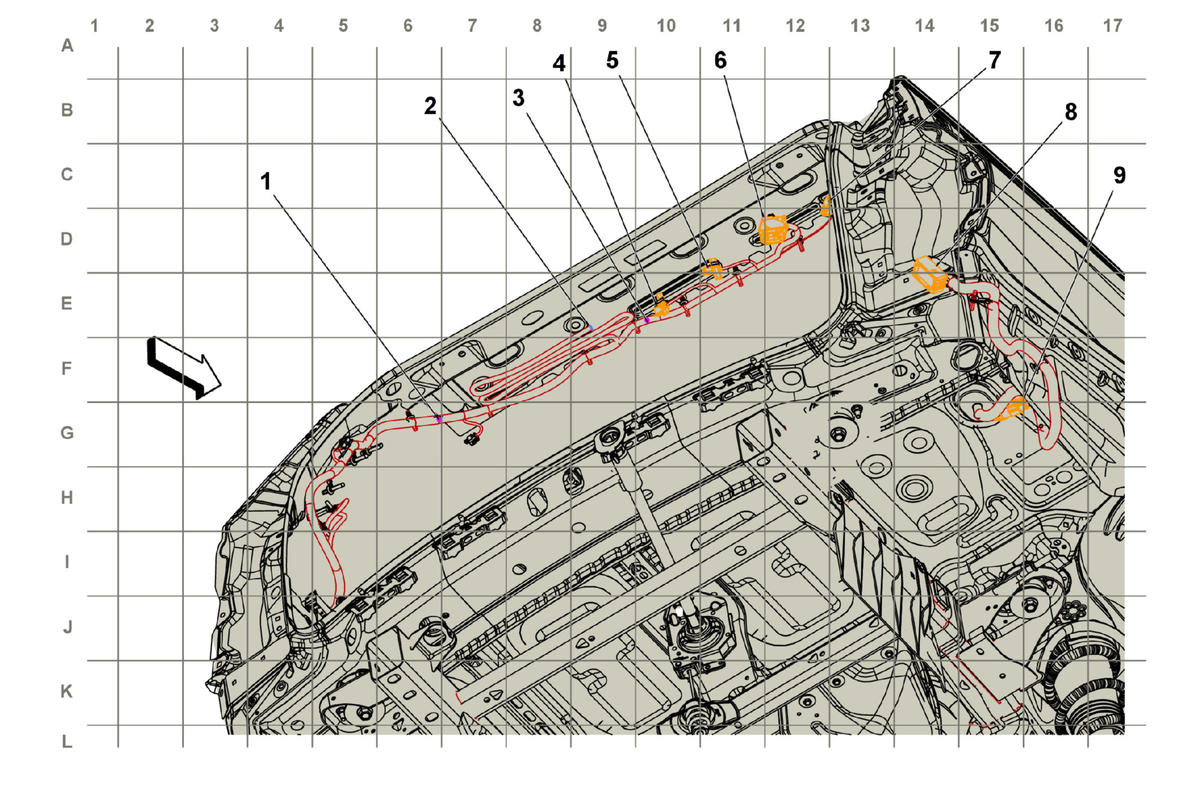

Luggage Compartment - Body Harness - Center Rear (5W4/9C1)
Luggage Compartment - Body Harness - Center Rear (5W4/9C1)
| Harness Name | Callout |
|---|---|
| J410 Body Harness | 1 |
| W12H Blunt Cut - Headliner Rear (5W4/9C1) | 2 |
| J408 Body Harness | 3 |
| X908 Body Harness to Rearview Camera Harness (UV2) X908 Body Harness to Rearview Camera Harness (UV2) | 4 |
| X904 Center High Mounted Stop Lamp Jumper Harness to Body Harness X904 Center High Mounted Stop Lamp Jumper Harness to Body Harness | 5 |
| X905 Liftgate Harness to Body Harness X905 Liftgate Harness to Body Harness | 6 |
| X430 Body Harness to Body Harness X430 Body Harness to Body Harness | 7 |
| X922 Body Harness to Rear Fascia Harness X922 Body Harness to Rear Fascia Harness | 8 |
| X421 Body Harness to Police Strobe Light Provisional Harness (5W4/9C1) X421 Body Harness to Police Strobe Light Provisional (5W4/9C1) | 9 |
