X908 Body Harness to Rearview Camera Harness (UV2)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information

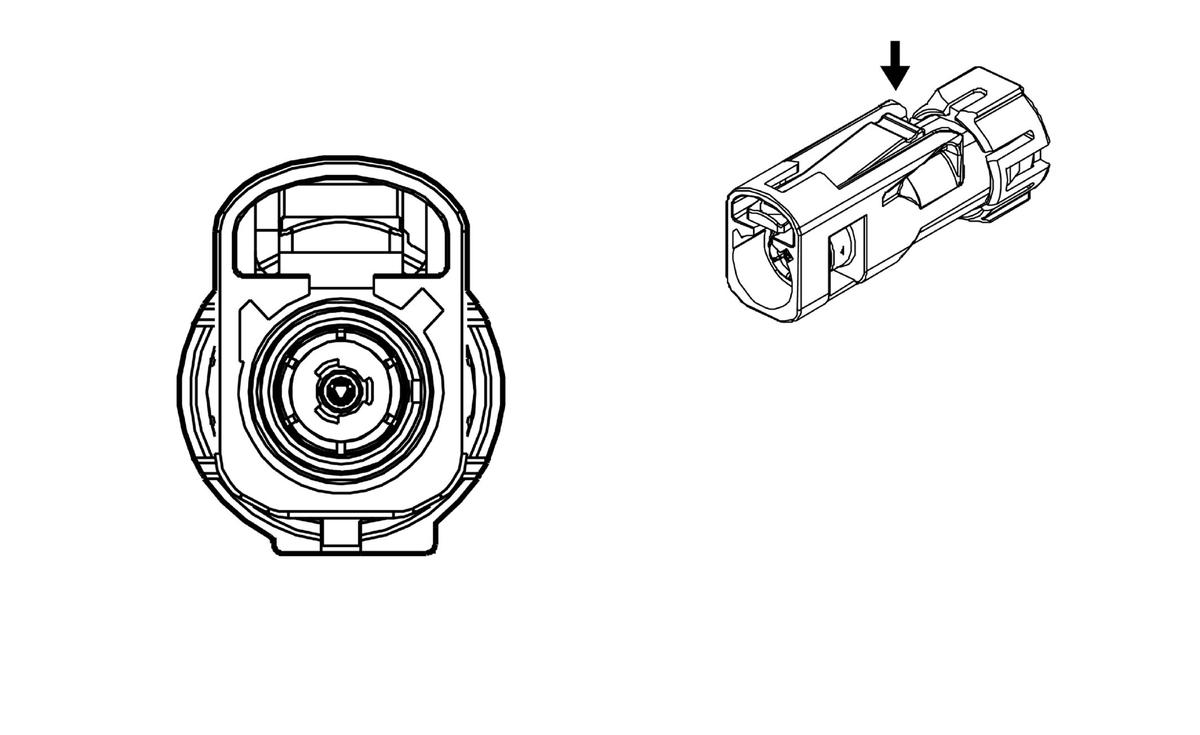

- Harness Type: Body COAX
- OEM Connector: 35294086
- Service Connector: Service by Cable Assembly -
- Description: 1-Way F Coax Type
|
Connector Part Information

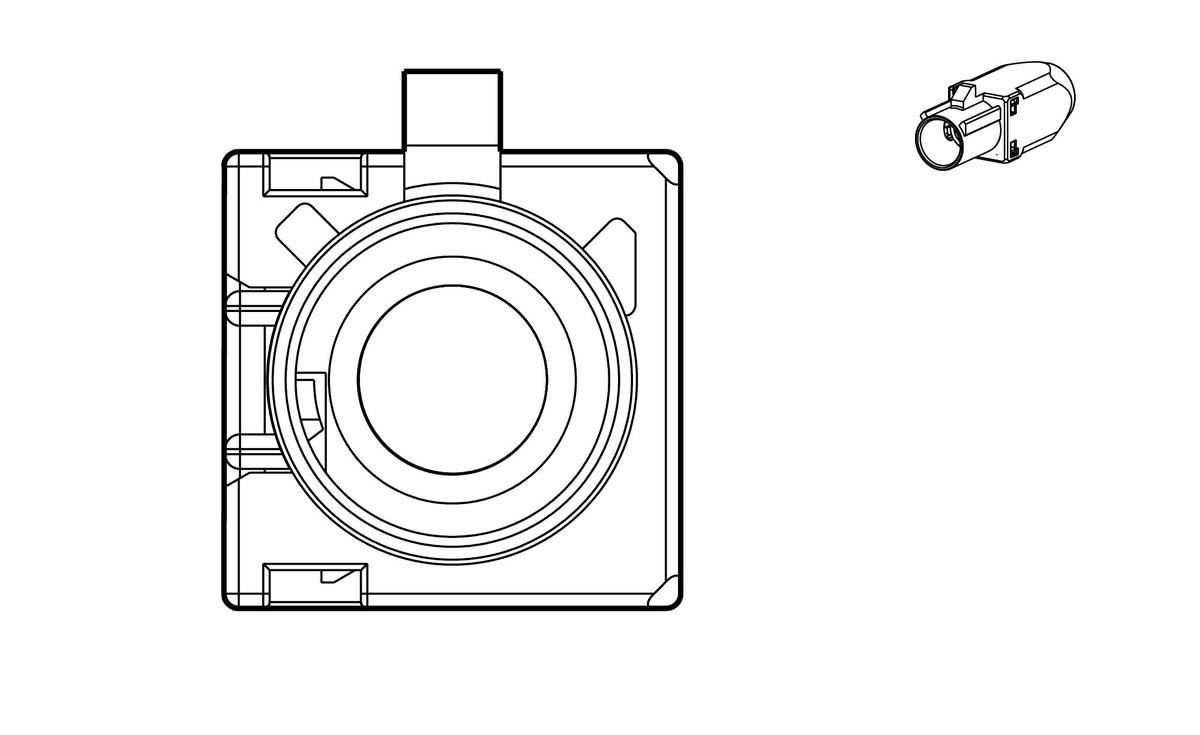

- Harness Type: Rearview Camera COAX
- OEM Connector: 13596714
- Service Connector: Service by Cable Assembly -
- Description: 1-Way M Coax Type
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
Rear Vision Camera Coaxial Video Signal |
- |
- |
Coax Cable |
- |
I |
- |
