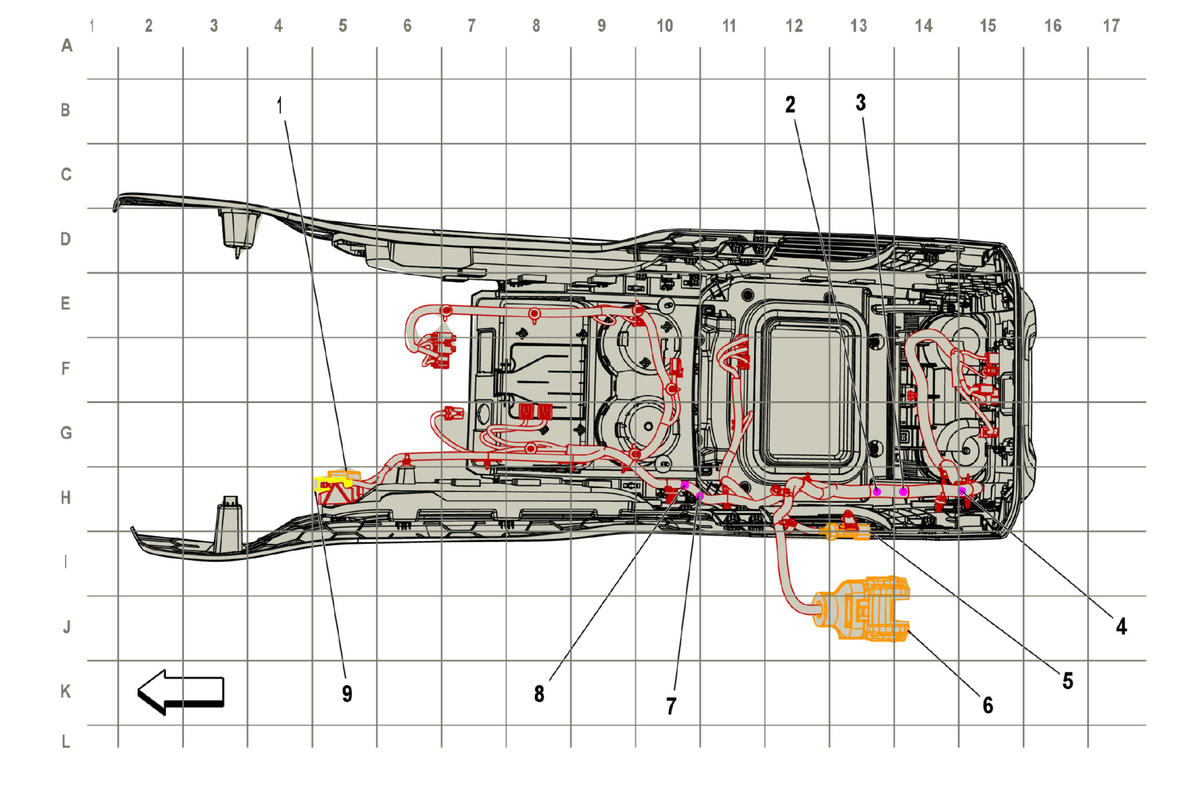

Floor Console Harness (DCK)
Floor Console Harness (DCK)
| Harness Name | Callout |
|---|---|
| X256 Instrument Panel Harness to Floor Console Harness X256 Instrument Panel Harness to Floor Console Harness (D07/DCK) | 1 |
| J302 Floor Console | 2 |
| J301 Floor Console | 3 |
| J303 Floor Console (D07) | 4 |
| X301 Floor Console Harness to Body Harness (UW9) X301 Floor Console Harness to Body Harness (UW9) | 5 |
| X300 Floor Console/Center Seat Harness to Body Harness X300 Floor Console Harness to Body Harness | 6 |
| J305 Floor Console | 7 |
| J300 Floor Console | 8 |
| X255 Floor Console Harness to Instrument Panel Harness (USR) X255 Floor Console to Instrument Panel (USR) | 9 |
