Luggage Compartment - Left (-5W4-9C1)

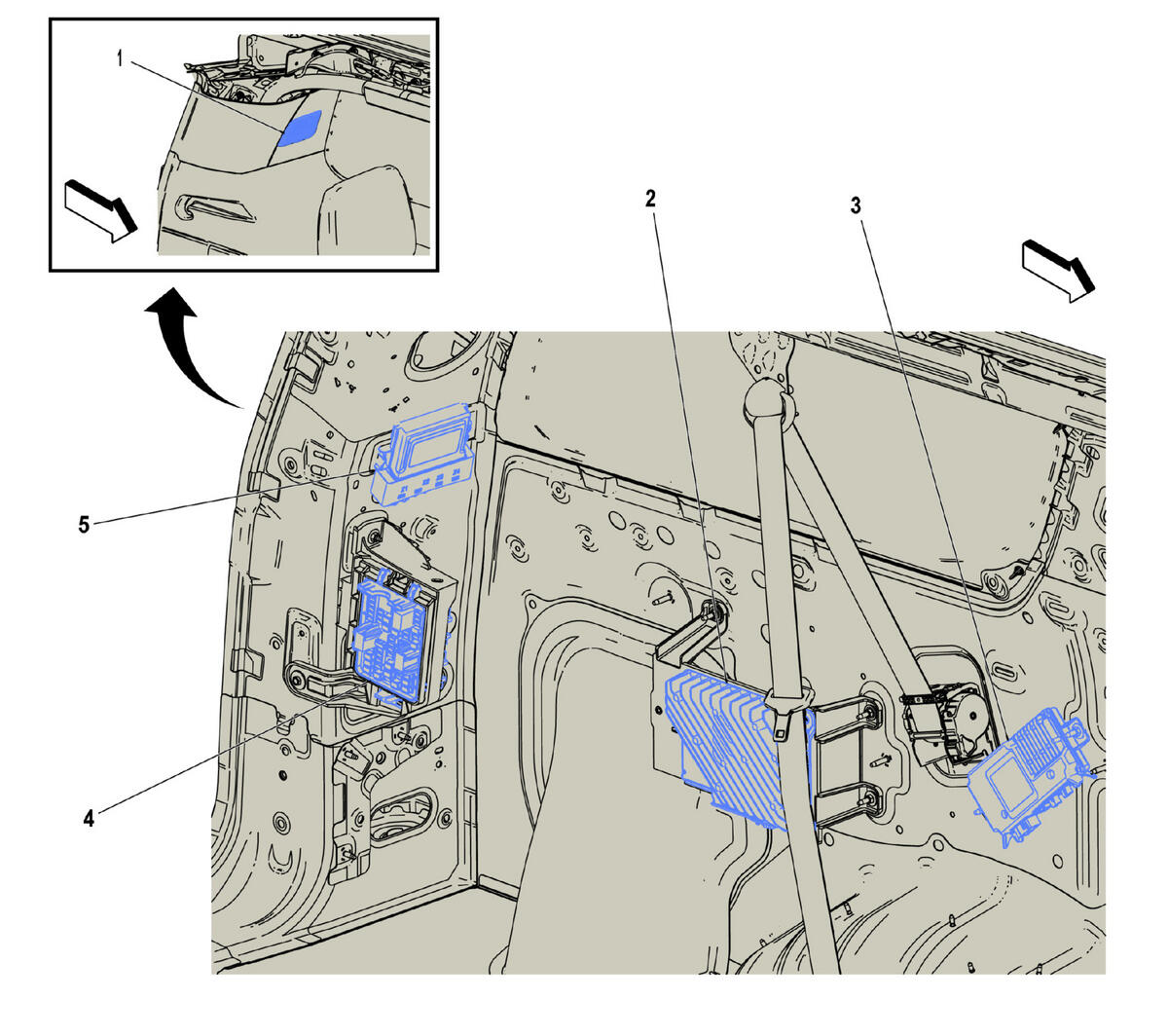

GM5548915Courtesy of GENERAL MOTORS COMPANY
Luggage Compartment - Left (-5W4-9C1)

Items
1. P19M Radio Body Rear Corner Upper Garnish Molding Speaker - Left (UQA/UQS)
P19M Radio Body Rear Corner Upper Garnish Molding Speaker - Left (UQA) , or
P19M Radio Body Rear Corner Upper Garnish Molding Speaker - Left (UQP) , or
P19M Radio Body Rear Corner Upper Garnish Molding Speaker - Left (UQS) .
2. T3 Audio Amplifier (UQA)
T3 Audio Amplifier X1 (UQA/UQS/UQP) , or
T3 Audio Amplifier X2 (UQA/UQS/UQP) , or
T3 Audio Amplifier X3 (UQA/UQS/UQP) , or
T3 Audio Amplifier X4 (UQP) .
3. K157 Video Processing Module (UV2)
K157 Video Processing Module X1 (UV2) , or
K157 Video Processing Module X2 (UV2) , or
K157 Video Processing Module X3 (UV2) , or
K157 Video Processing Module X4 (UV2) .
4. X53A Body Wiring Harness Junction Block - Rear
X53A Body Wiring Harness Junction Block - Rear X1 , or
X53A Body Wiring Harness Junction Block - Rear X2 .
5. K194 Rear Gate Module (TC2)
K194 Rear Gate Module X1 (TC2) , or
K194 Rear Gate Module X2 (TC2) , or
K194 Rear Gate Module X3 (TC2) , or
K194 Rear Gate Module X4 (TC2) .
