X53A Body Wiring Harness Junction Block - Rear X1

Courtesy of GENERAL MOTORS COMPANY

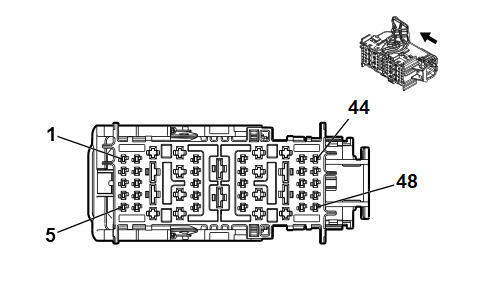

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19369711	J-35616-14 (GN)	EL-38125-560A
II	84764078	J-35616-42 (RD)	J-38125-215A
III	84779405	J-35616-35 (VT)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 4	-	-	-	Not Occupied	-	-
5	0.5	BK	2050	Ground	I	-
6 - 15	-	-	-	Not Occupied	-	-
16	0.75	RD / BU	3940	Battery Positive Voltage	III	-
17	0.75	RD / YE	3040	Battery Positive Voltage	III	-
18	-	-	-	Not Occupied	-	-
19	0.75	RD / GN	6140	Battery Positive Voltage	I	-
20	-	-	-	Not Occupied	-	-
21	0.5	RD / BN	4940	Battery Positive Voltage	I	-
22	0.5	RD / BN	7540	Battery Positive Voltage	I	-
23	0.5	RD / GN	3140	Battery Positive Voltage	I	-
24	3	RD / GY	5540	Battery Positive Voltage	II	-
25	-	-	-	Not Occupied	-	-
26	0.75	RD / WH	5740	Battery Positive Voltage	I	-
27 - 28	-	-	-	Not Occupied	-	-
29	0.5	RD / GY	4840	Battery Positive Voltage	I	-
30	0.5	RD / VT	1640	Battery Positive Voltage	I	-
31	1	RD / GN	1540	Battery Positive Voltage	III	-
32	-	-	-	Not Occupied	-	-
33	1	RD / VT	8640	Battery Positive Voltage	III	-
34	-	-	-	Not Occupied	-	-
35	0.35	BU / GN	4089	Rear Closure Motor Control	III	-
36	2.5	RD / YE	5040	Battery Positive Voltage	II	-
37	2.5	RD / BN	3842	Battery Positive Voltage	II	-
38	2.5	RD / YE	7440	Battery Positive Voltage	III	-
39 - 42	-	-	-	Not Occupied	-	-
43	0.75	RD / BU	6740	Battery Positive Voltage	I	-
44	0.35	GY / YE	6188	Liftgate Window/Rear Compartment Lid Motor Unlatch Control	I	-
45	-	-	-	Not Occupied	-	-
46	0.5	RD / GN	2642	Battery Positive Voltage	I	-
47 - 48	-	-	-	Not Occupied	-	-
