Rear Side Door Window Switch Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Side Door Armrest Switch Mount Plate Replacement (Equinox)

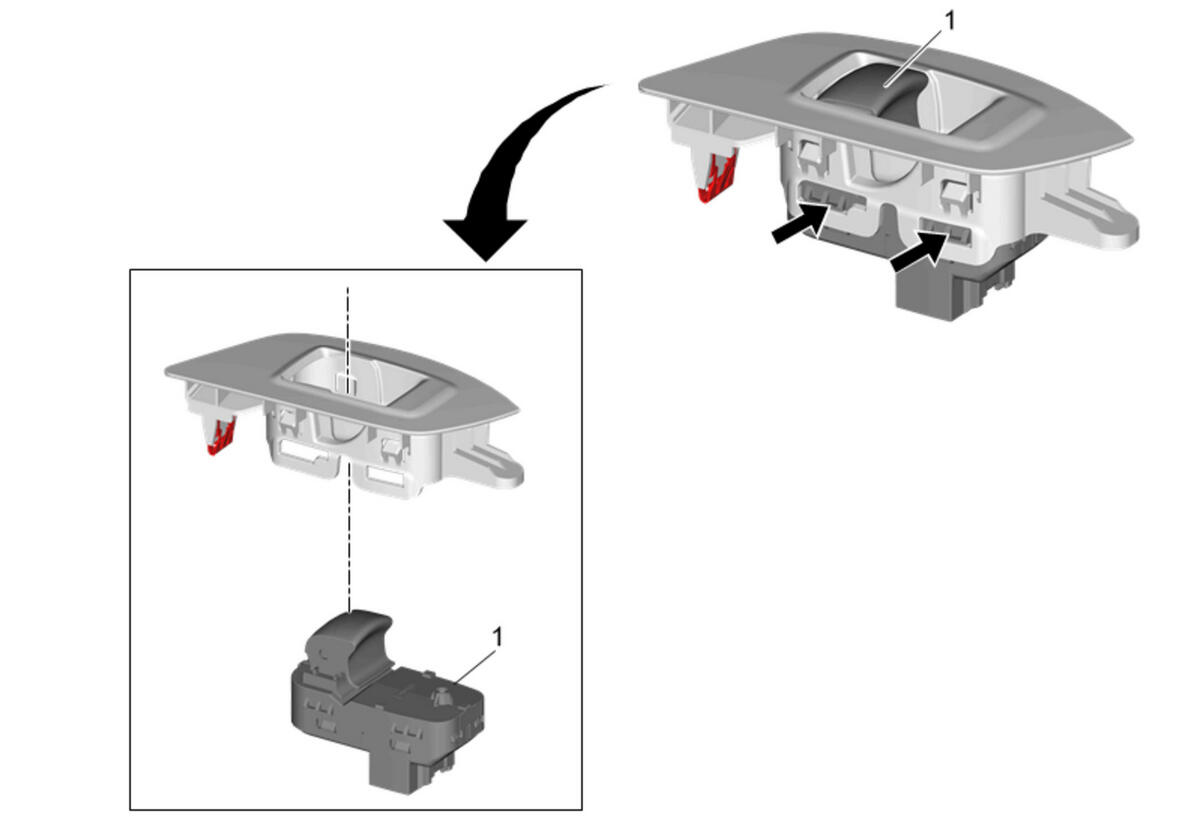

1	Rear Side Door Window Switch Procedure Release the switch assembly from the armrest switch mount plate by depressing the tabs along each side of the switch. Disconnect the electrical connector.

Callout

Component Name

Rear Side Door Window Switch

Procedure

Release the switch assembly from the armrest switch mount plate by depressing the tabs along each side of the switch.
Disconnect the electrical connector.
