Rear Side Door Armrest Switch Mount Plate Replacement (Equinox)

Procedure

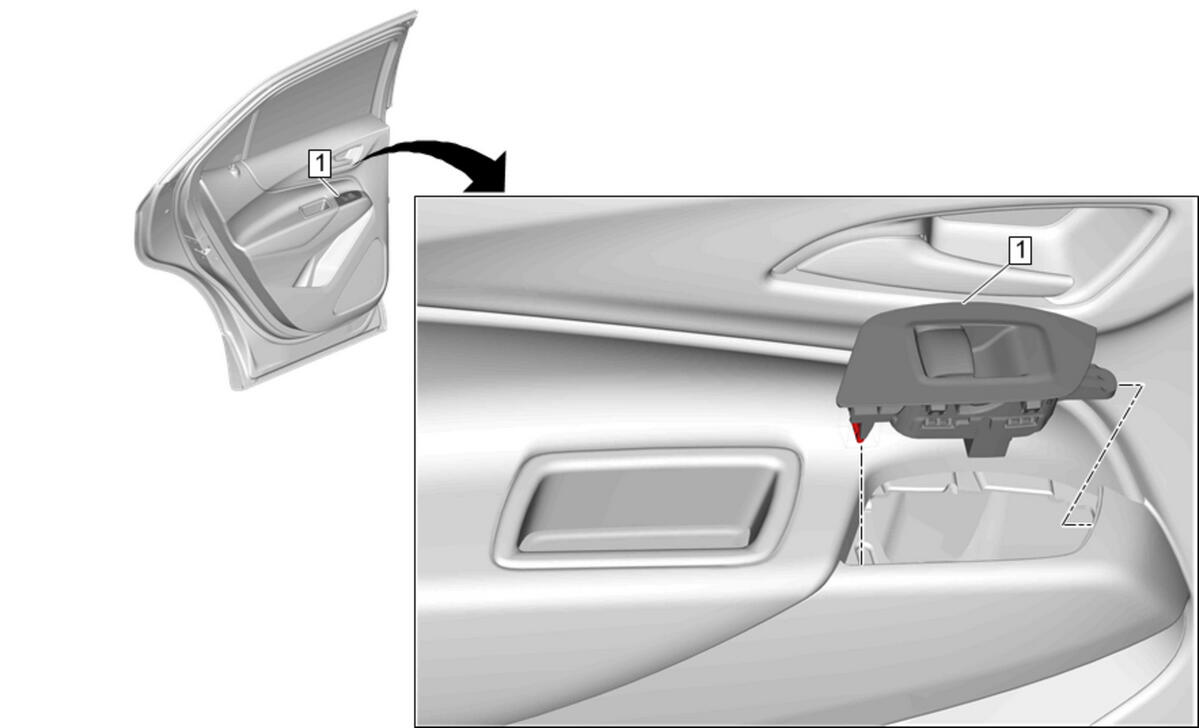

1. Using a flat-bladed plastic trim tool, start at the front of the armrest switch mount plate and gently insert trim tool to lift the rear side door armrest switch mount plate from the door trim assembly.
2. Rotate the armrest switch mount plate up and forward to unhook the rear retaining feature.
3. Disconnect the electrical connector.
4. Transfer parts as necessary.
