Front Side Door Window Switch Replacement - Right Side (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement (Driver Side, Equinox) , or Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side, Equinox)

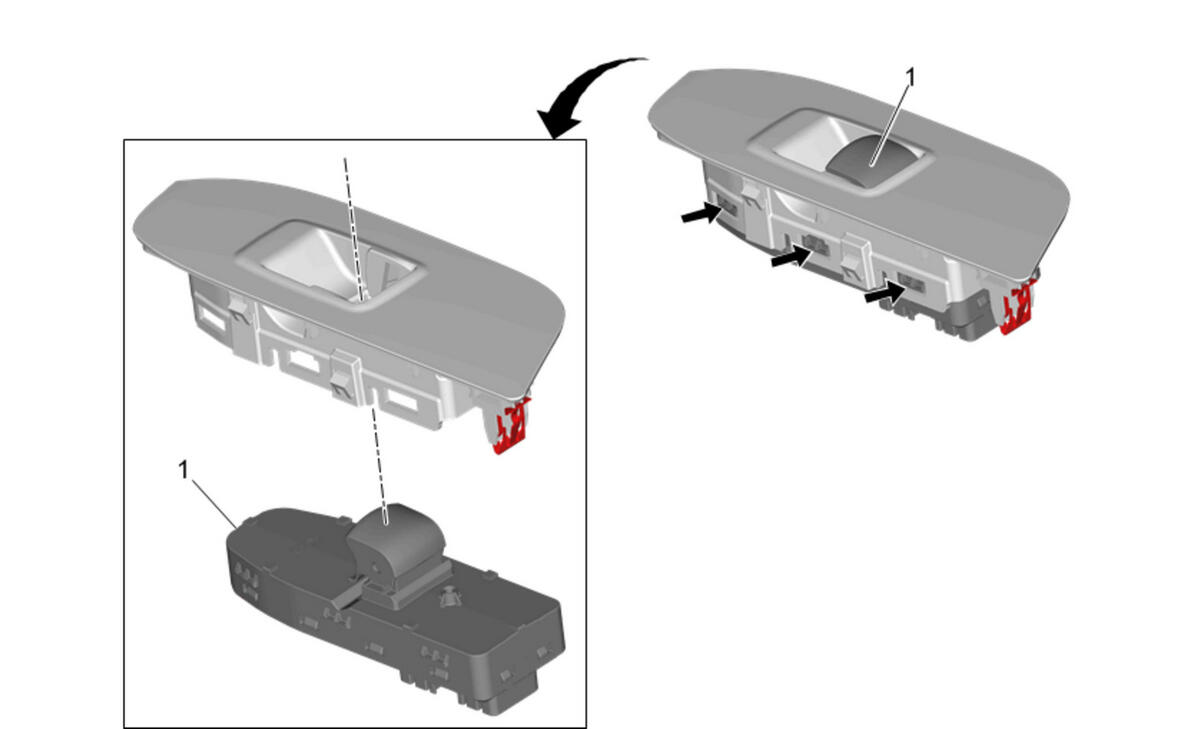

1	Front Side Door Window Switch - Right Side Procedure Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch. Disconnect the electrical connector.

Callout

Component Name

Front Side Door Window Switch - Right Side

Procedure

Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
Disconnect the electrical connector.
