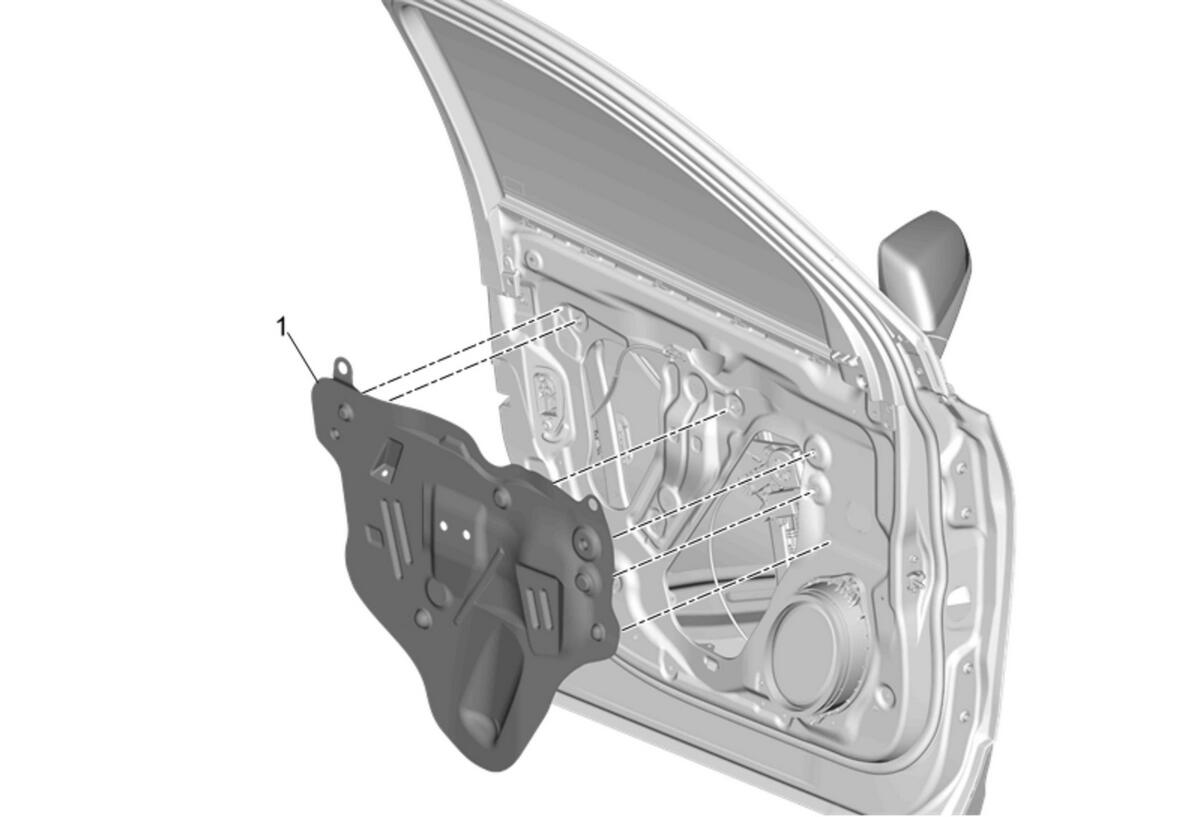

Front Side Door Water Deflector Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Trim Replacement (Terrain) Front Side Door Armrest Bracket Replacement (Terrain)
1	Front Side Door Water Deflector Procedure Route front side door inside handle cable through hole in deflector assembly while removing it from the door. NOTE: When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Callout

Component Name

Preliminary Procedures

Front Side Door Trim Replacement (Terrain)
Front Side Door Armrest Bracket Replacement (Terrain)

Front Side Door Water Deflector
Procedure
Route front side door inside handle cable through hole in deflector assembly while removing it from the door.

NOTE:

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
