Front Side Door Armrest Bracket Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

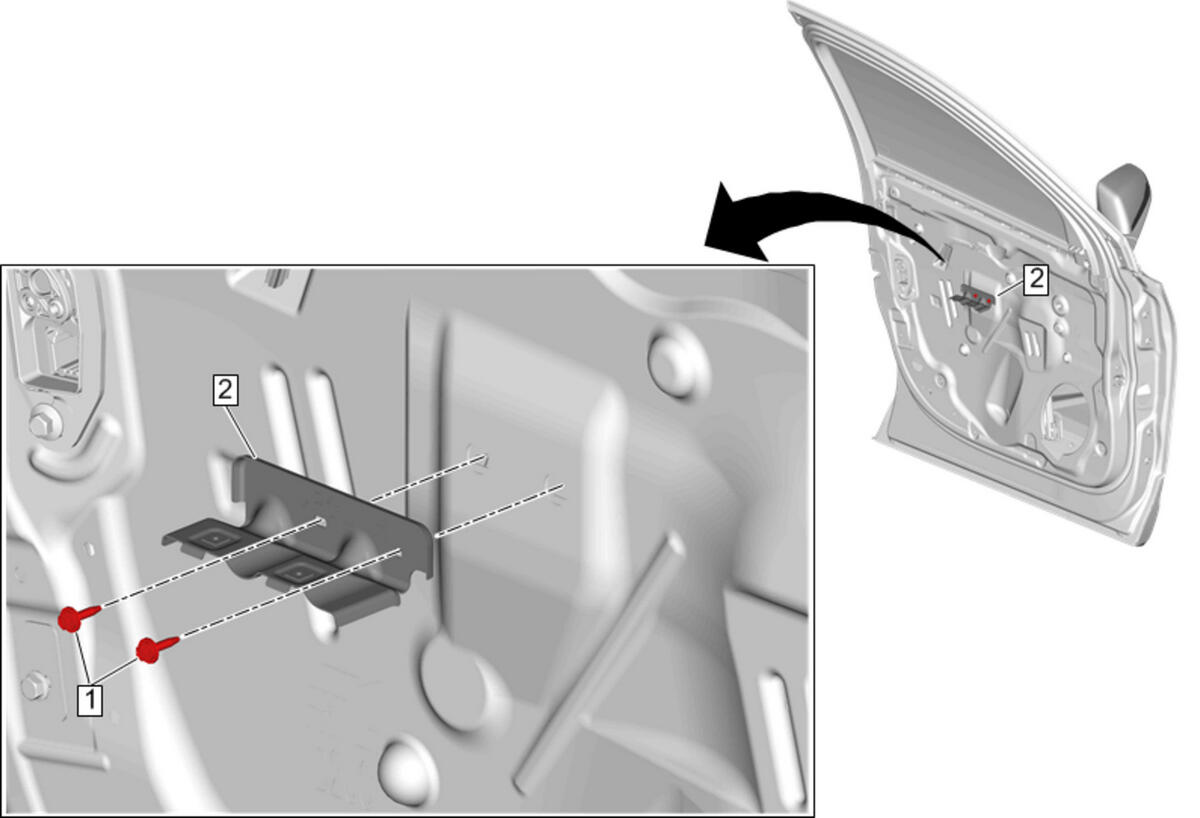

Callout	Component Name
Preliminary Procedure  Front Side Door Trim Replacement (Terrain)
1	Front Side Door Armrest Bracket Fastener [ 2x ] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb/in)
2	Front Side Door Armrest Bracket
