Rear Parking Assist Alarm Sensor Replacement (Equinox)

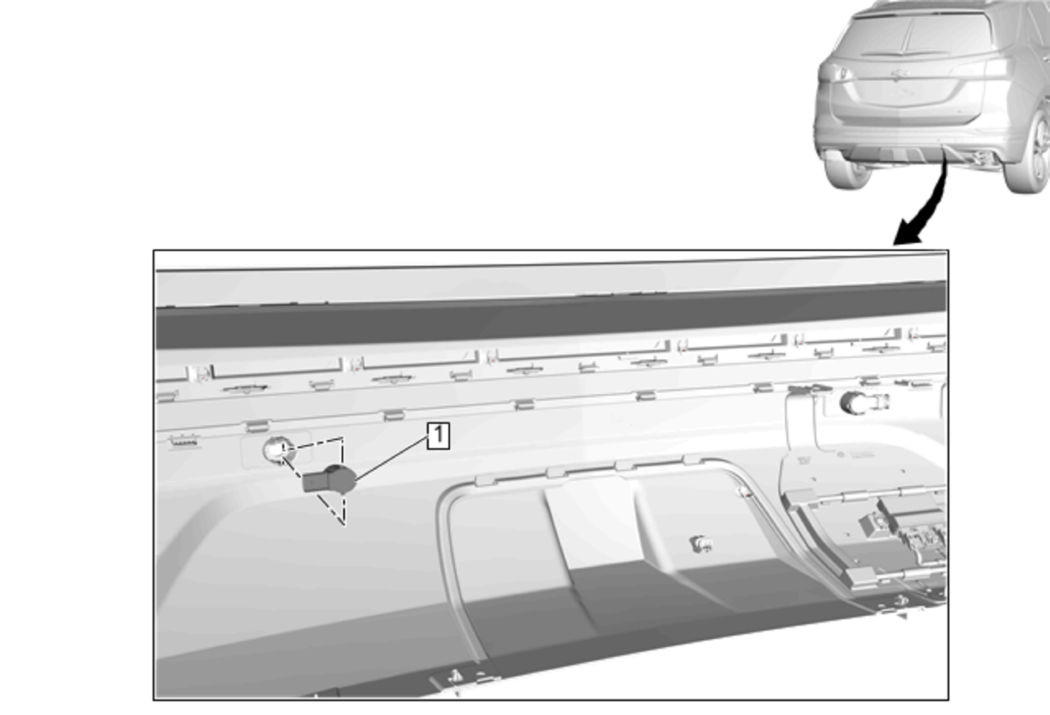

GM4592553Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Energy Absorber Replacement (Equinox)
1 Rear Parking Assist Alarm Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the locking tab from the rear parking assist alarm sensor bracket.
