Rear Bumper Fascia Energy Absorber Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

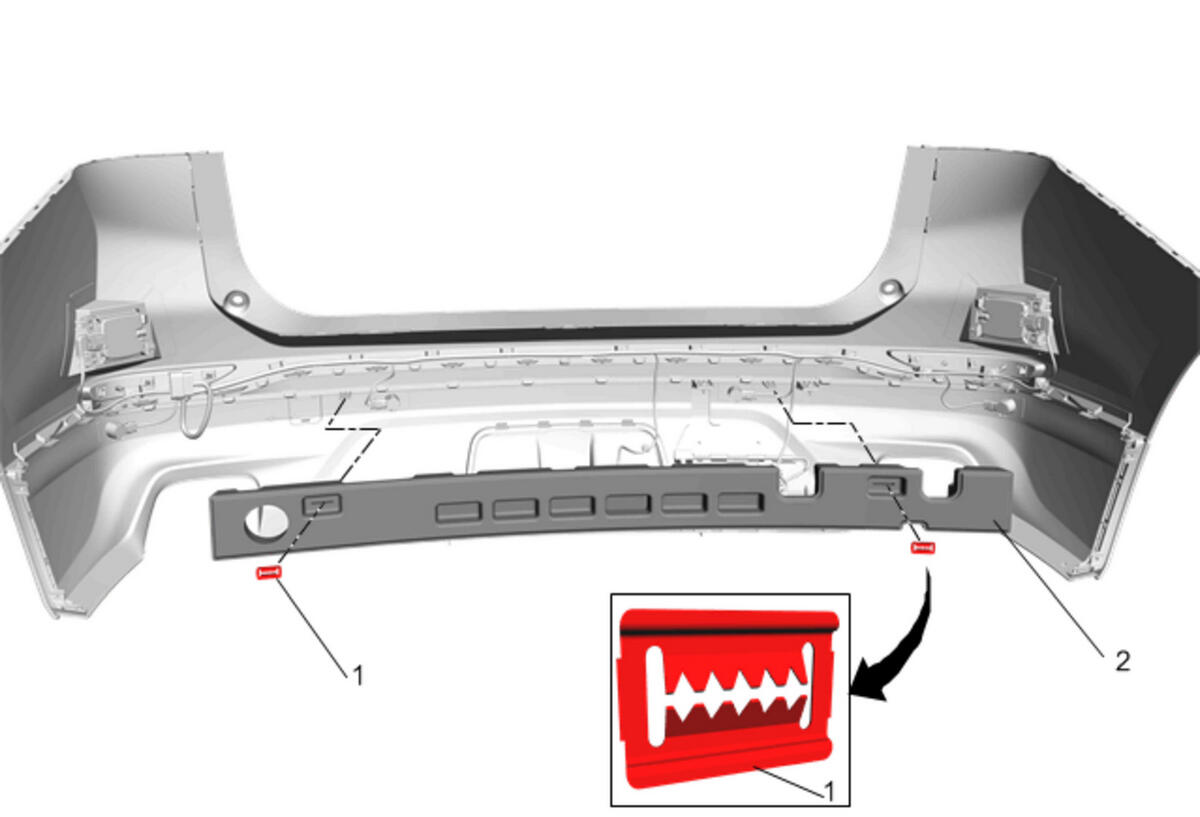

Callout	Component Name
Preliminary Procedures Rear Bumper Fascia Replacement (Equinox) Reposition the wiring harness.
1	Rear Bumper Fascia Energy Absorber Clip [ 2x ]
2	Rear Bumper Fascia Energy Absorber Procedure Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Rear Bumper Fascia Energy Absorber Clip [ 2x ]

Rear Bumper Fascia Energy Absorber
Procedure
Transfer components as necessary.
