Radio Replacement (IO5, IO6, IOB, IOR)

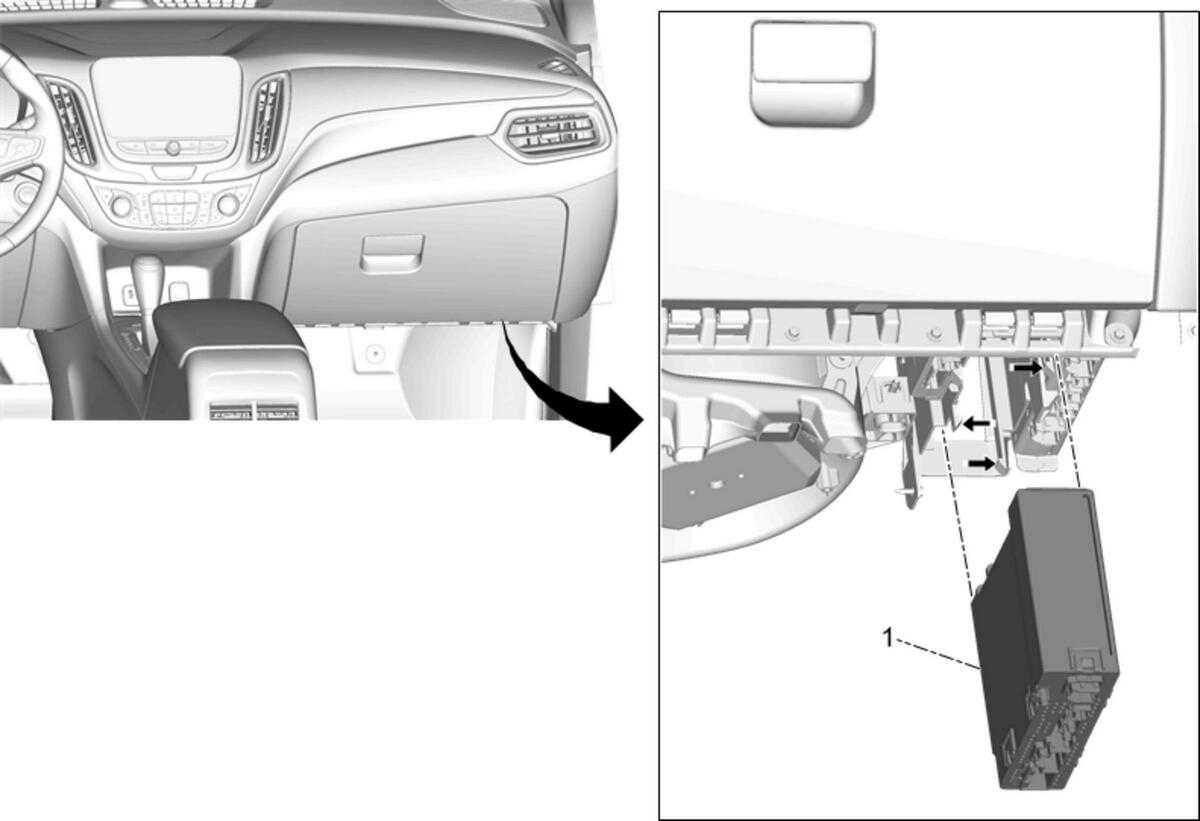

GM4578479Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door sill garnish molding - right side. Front Side Door Sill Garnish Molding Replacement (Equinox) , or Front Side Door Sill Garnish Molding Replacement (Terrain)
  2. Reposition the front floor panel carpet as necessary.
1 Radio

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. Perform the necessary programming and setup procedure: Control Module References
