Front Side Door Sill Garnish Molding Replacement (Terrain)

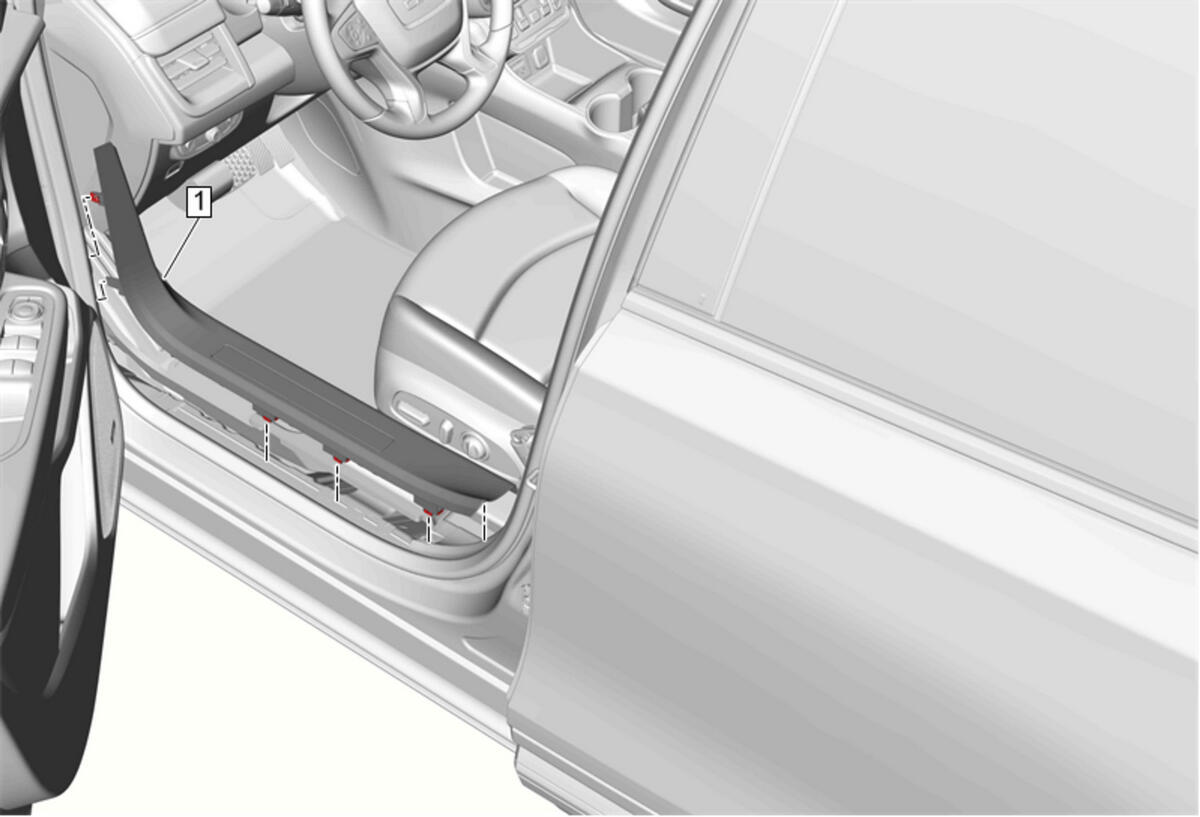

GM4743979Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Sill Garnish Molding

Procedure

  1. Starting at the rear of the garnish molding, pull upward at the B-Pillar joint to disengage garnish molding.
  2. Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage the clip on the forward vertical wall.
  3. Reposition the front floor panel carpet as needed.
