Radio Control Switch Replacement - Steering Wheel (Equinox, Right Front)

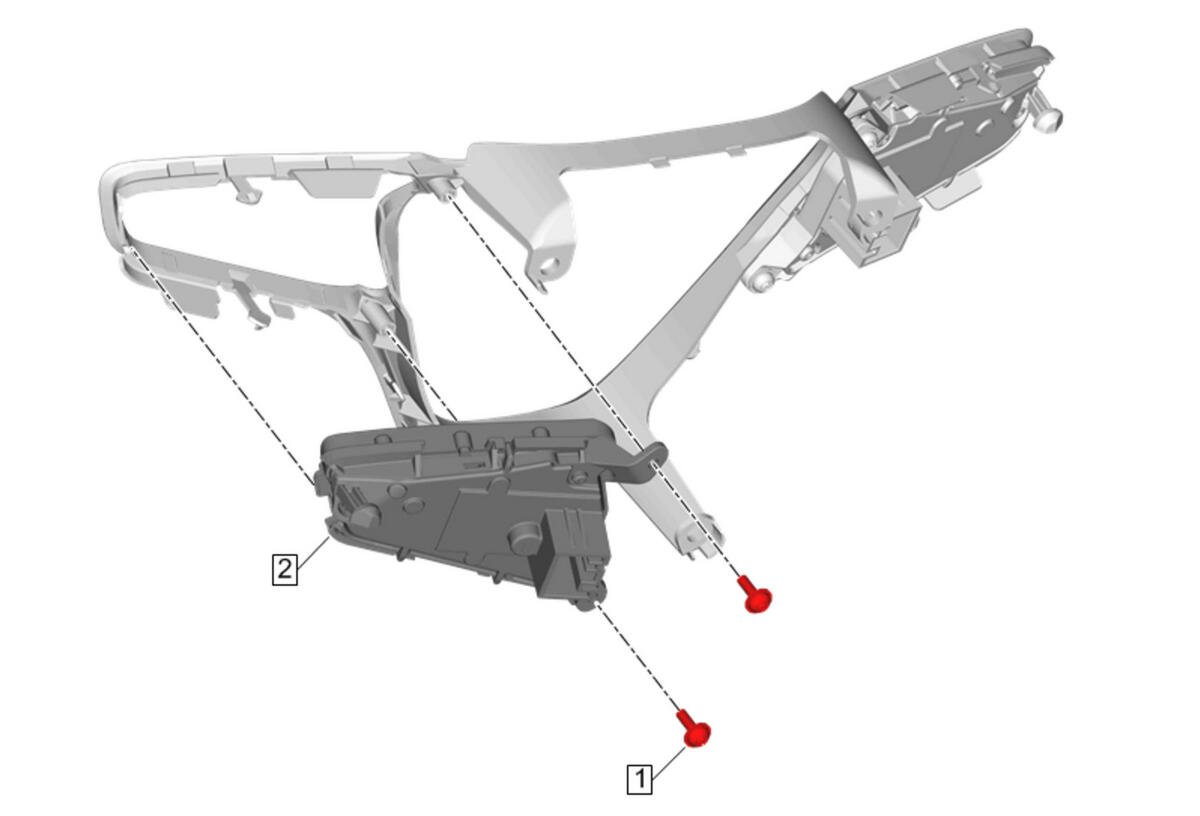

| Callout | Component Name |
|---|---|
| Preliminary Procedure Steering Wheel Spoke Cover Replacement (Equinox) |
|
| 1 | Steering Wheel Spoke Cover Fastener [ 2x ]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb/in) |
| 2 | Radio Control Switch - Steering Wheel Procedure Release the retaining tabs and remove the radio control switch from the steering wheel spoke cover. |
