Steering Wheel Spoke Cover Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

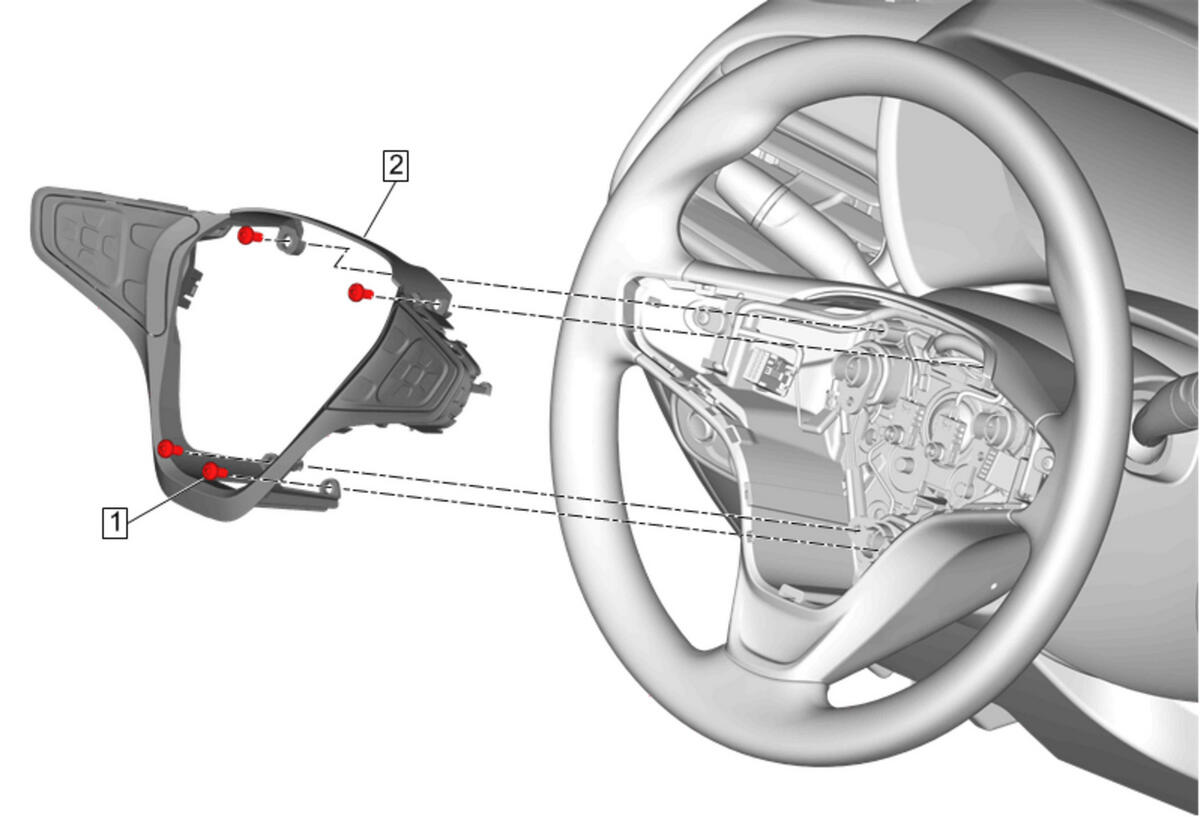

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement (Equinox)
1	Steering Wheel Spoke Cover Fastener [ 4x ] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb/in)
2	Steering Wheel Spoke Cover Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Steering Wheel Spoke Cover Fastener [ 4x ]

CAUTION:

Tighten
1.5 N.m (13 lb/in)

Steering Wheel Spoke Cover

Procedure
