Installation Procedure
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Install the control valve body cover (1).
-
NOTE:
The number (1) bolts are stud bolts.

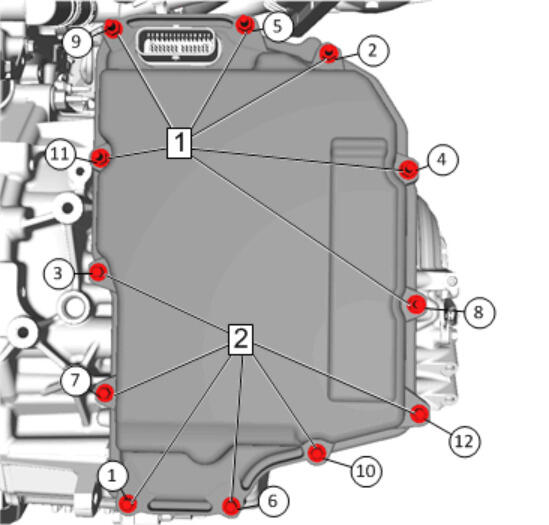

Hand start the control valve body cover bolts (1, 2).
- Install the control valve body cover bolts. Tighten the bolts in sequence to 11 N.m (97 lb in).
- Install the body ground cable and wiring harness assembly to the front of transmission.

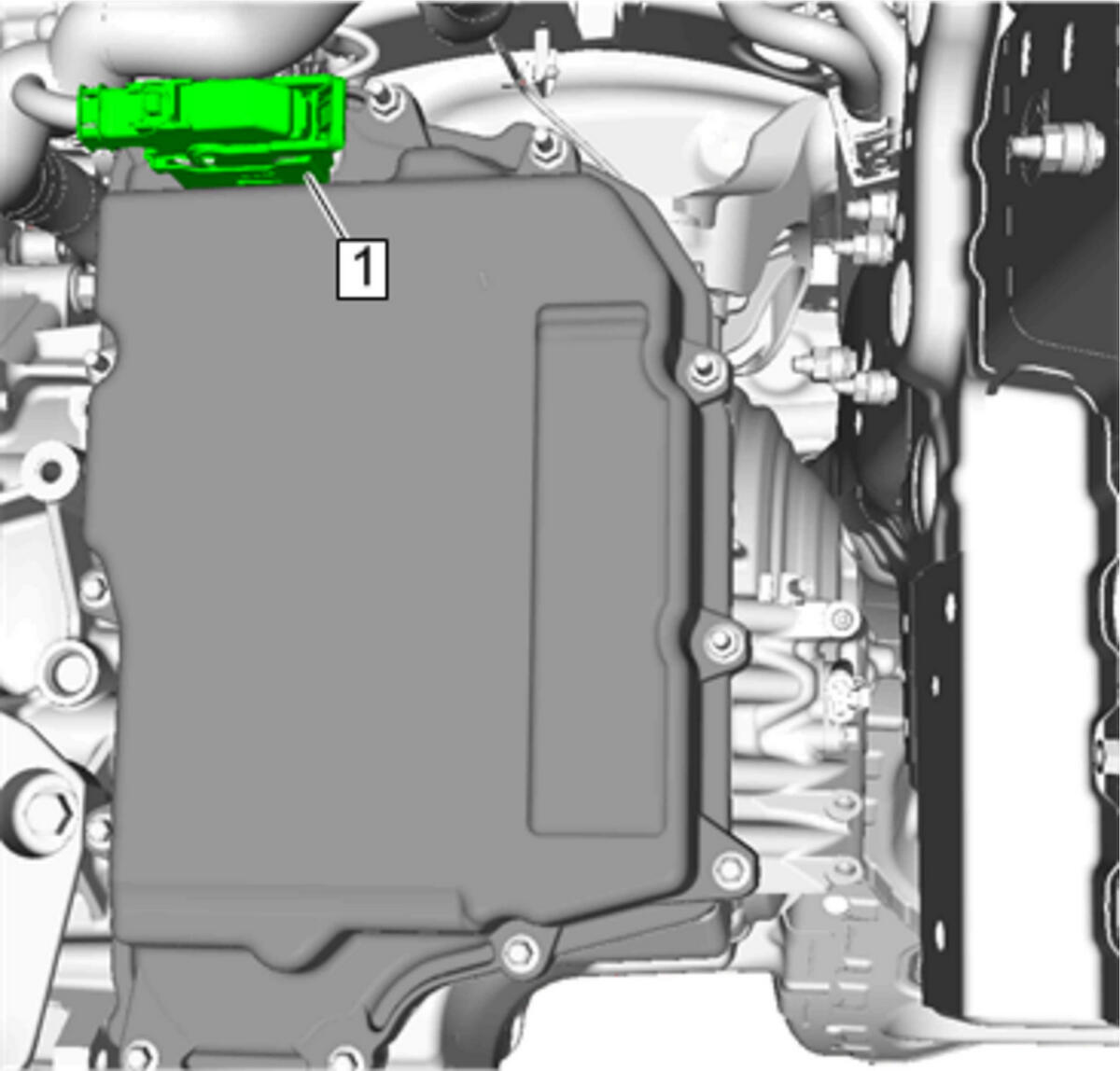

Connect the control valve body transmission control module electrical connector (1), then clip the wiring harness to the cover.

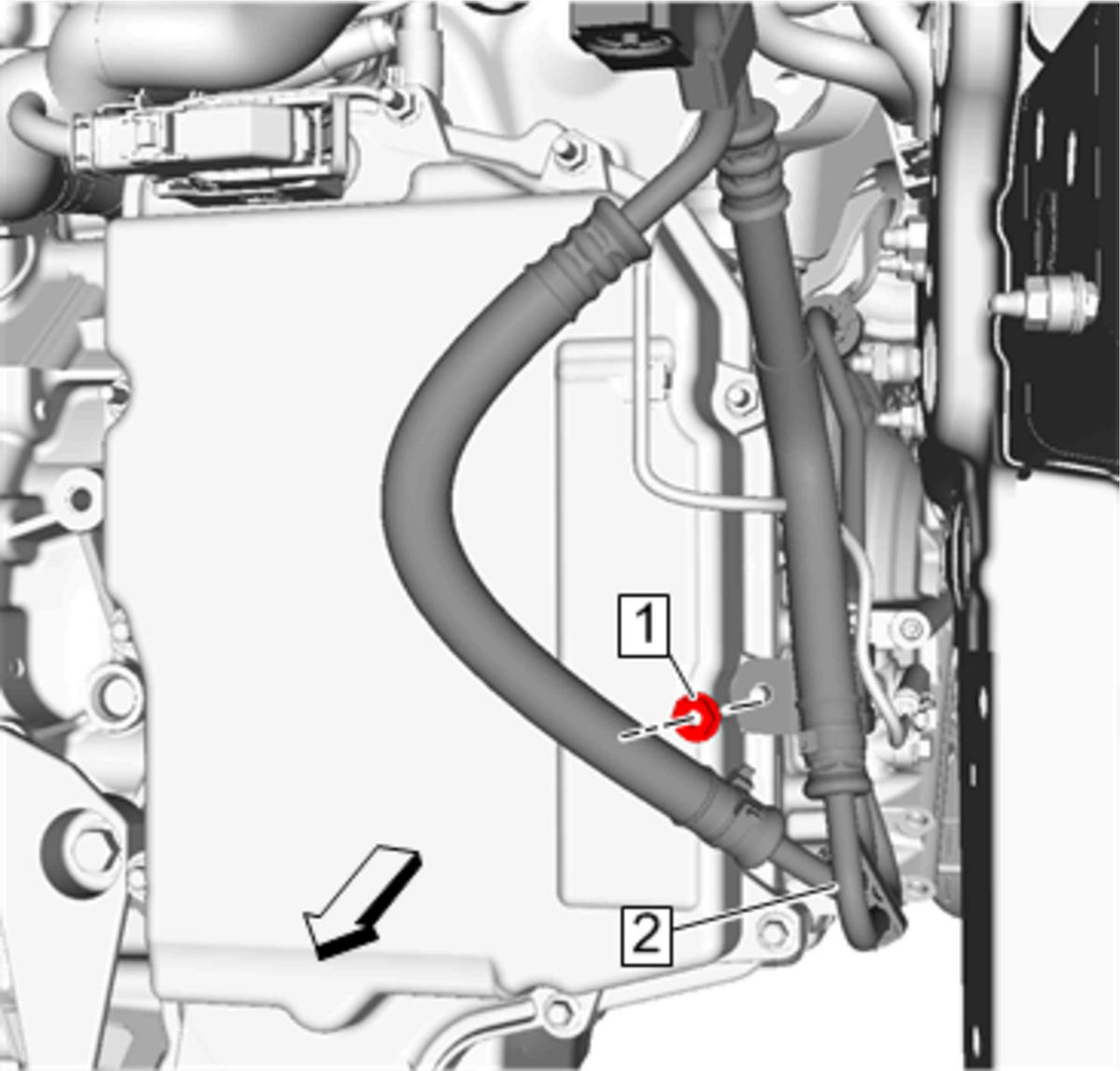

Reposition the transmission fluid cooler outlet pipes (2) to the transmission
- Install the transmission fluid cooler inlet pipe nut (1) to the transmission and tighten to 9 N.m (80 lb in).
- Fill the transmission with correct fluid. Adhesives, Fluids, Lubricants, and Sealers
- Install the transmission control module bracket. Transmission Control Module Bracket Replacement
- Install the charge air cooler outlet air tube. Charge Air Cooler Outlet Air Tube Replacement .
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9) .
- Check transmission fluid level. Transmission Fluid Level and Condition Check .
- Check for leaks.
CAUTION:
Refer to Fastener Caution .
NOTE:
Install all control valve body cover bolts and stud bolts by hand then torque all bolts in sequence.
