Transmission Control Module Bracket Replacement
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

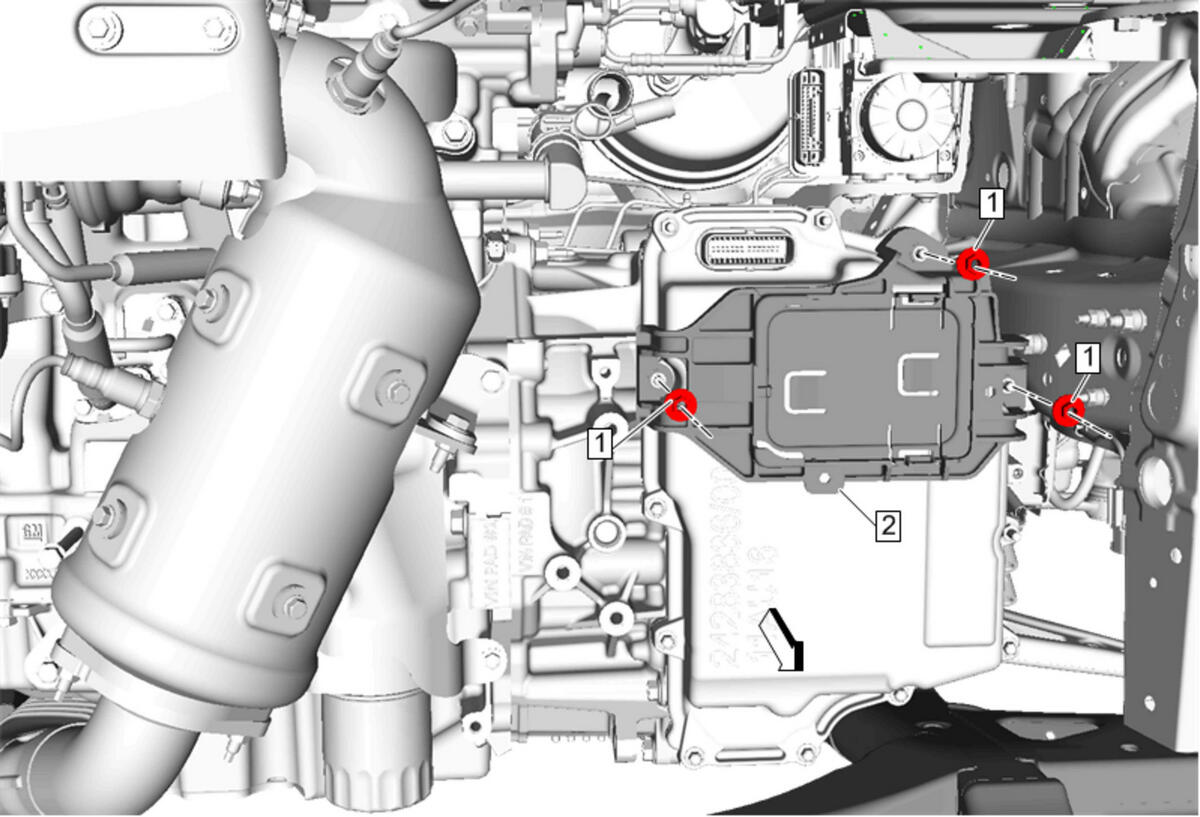

| Callout | Component Name |
|---|---|
| Preliminary Procedure Transmission Control Module Replacement |
|
| 1 | Transmission Control Module Bracket Nut[3x]
NOTE:
Radiator assembly removed for clarity.
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Transmission Control Module Bracket |
