Removal Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left front wheel house liner. Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain) .

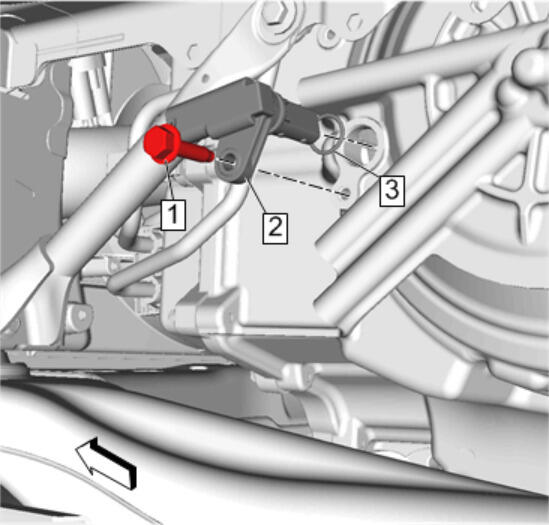

  2. GM4487717Courtesy of GENERAL MOTORS COMPANY

    Remove the input speed sensor bolt (1).

  3. Remove the input speed sensor (2).
  4. Remove the input speed sensor seal (3).
