Installation Procedure

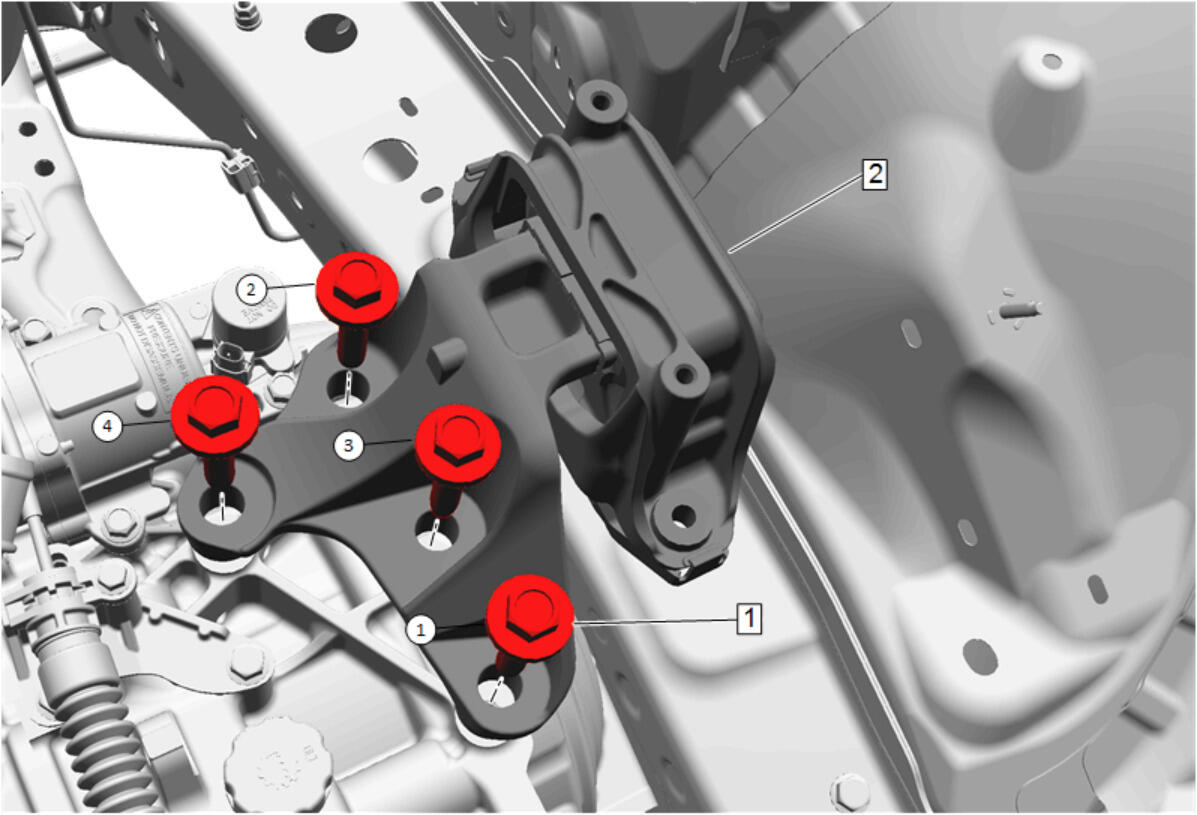

- Transmission Mount (2) - Install
- Hand start the 4 transmission mount bolts (1).

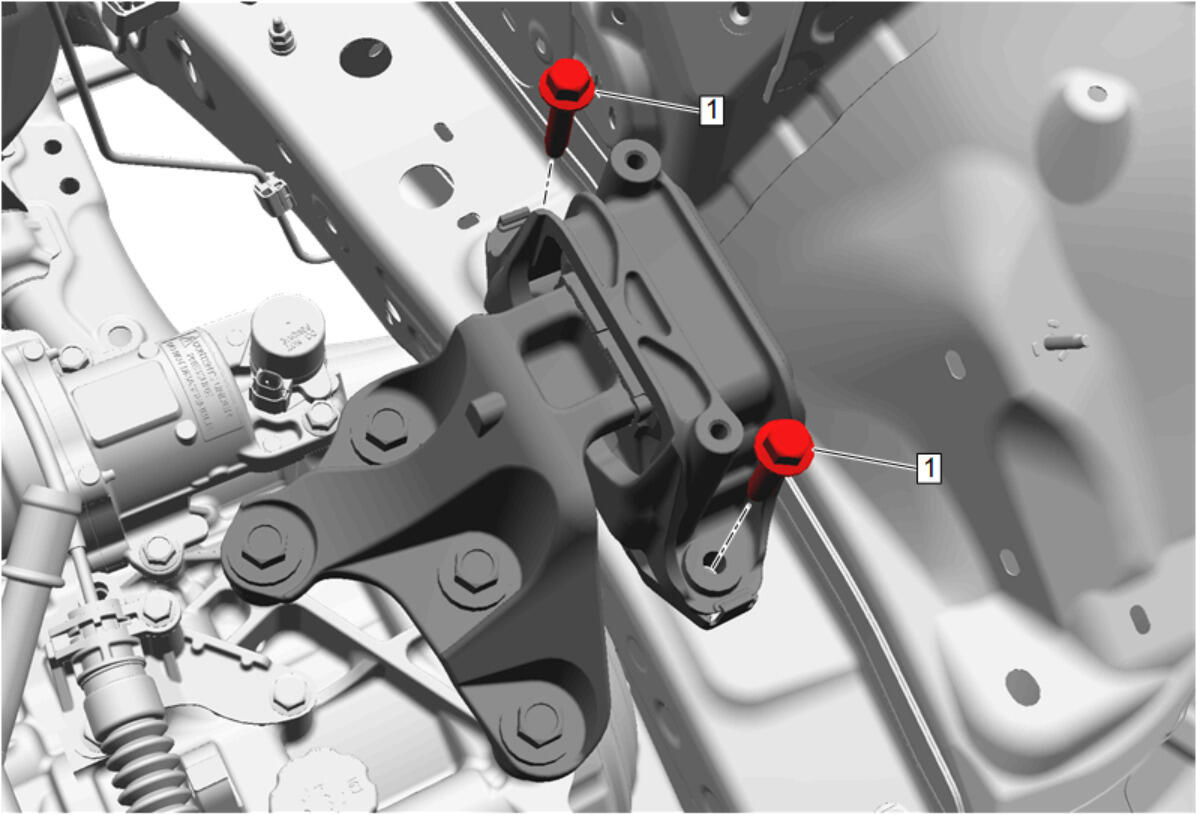

- Transmission Mount Bolt (1) - Install and tighten [2x] 58 N.m (43 lb ft)

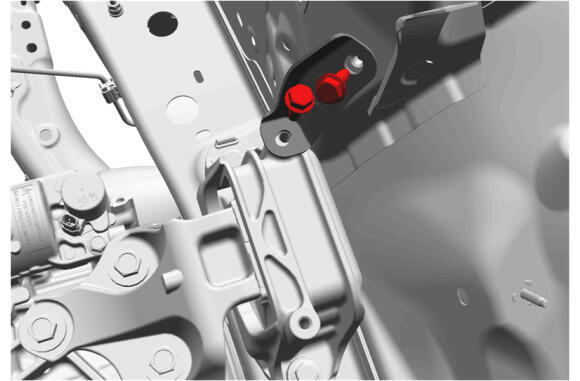

- Transmission Mount Brace (2) - Install
- Transmission Mount Brace Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
- Perform the powertrain mount balancing procedure.
- 2.5L (LCV) Powertrain Mount Balancing
- 3.6L (LGX) Powertrain Mount Balancing
- 2.0L (LSY) Powertrain Mount Balancing (FWD)
- Remove the engine support fixture.
- 2.5L (LCV) Engine Support Fixture
- 3.6L (LGX) Engine Support Fixture
- 2.0L (LSY) Engine Support Fixture
- Install the battery tray. Battery Tray Replacement
CAUTION:
Refer to Fastener Caution .
CAUTION:
The stated fastener removal or installation sequence must be followed to avoid damage to the components of the mount assembly.
