Powertrain Mount Balancing (FWD)

WARNING: This page is about a different variant/trim than selected.

Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
Engine Support Fixture - Install - Engine Support Fixture
Raise the vehicle. Lifting and Jacking the Vehicle
Transmission Mount Strut Bracket Bolt (1) - Loosen

Courtesy of GENERAL MOTORS COMPANY

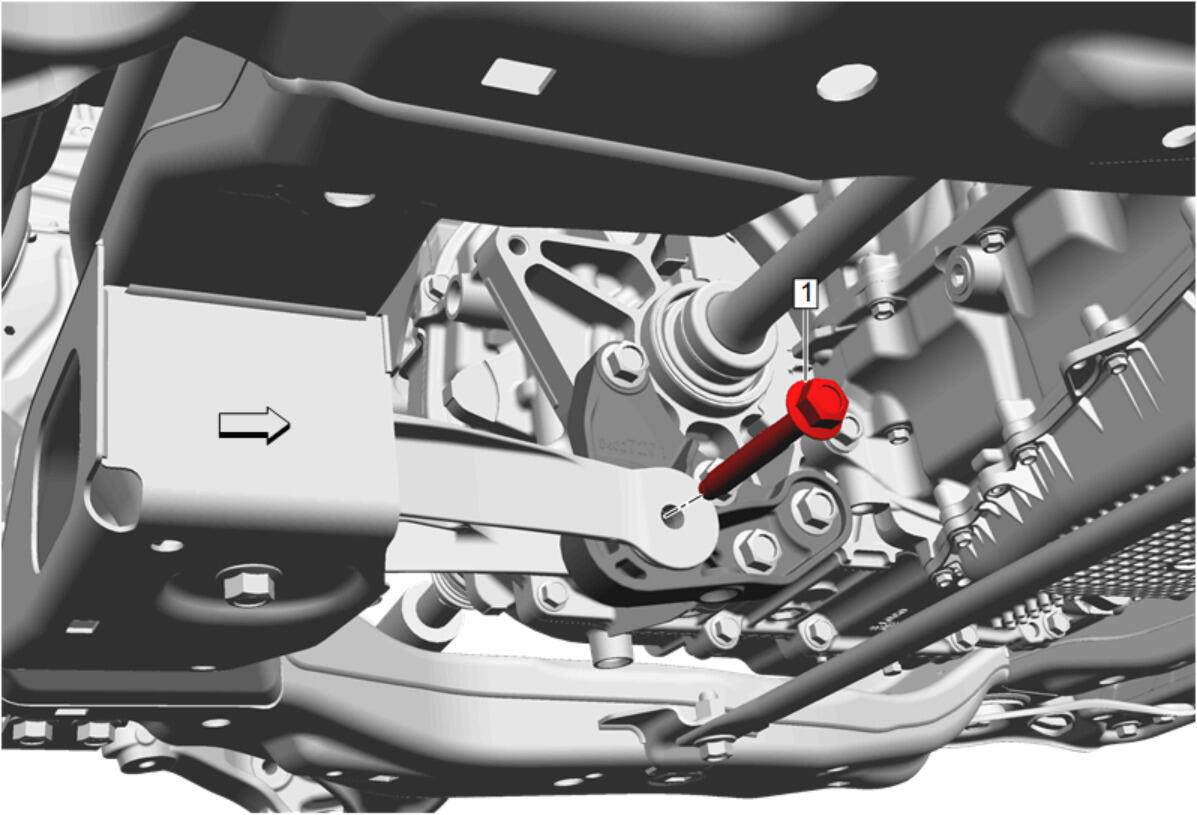

Transmission Front Mount Bolt (1) - Loosen

Courtesy of GENERAL MOTORS COMPANY
Lower the vehicle.

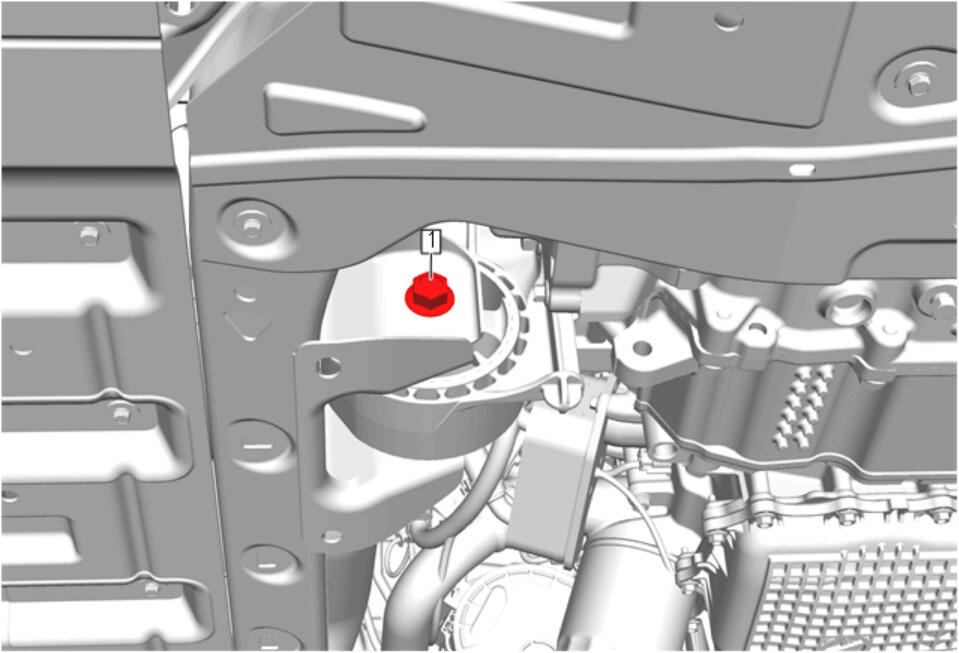

Engine Mount Bolt (1) - Loosen [2x]

Courtesy of GENERAL MOTORS COMPANY
Transmission Mount Transmission Side Bolt (1) - Remove and DISCARD [4x]

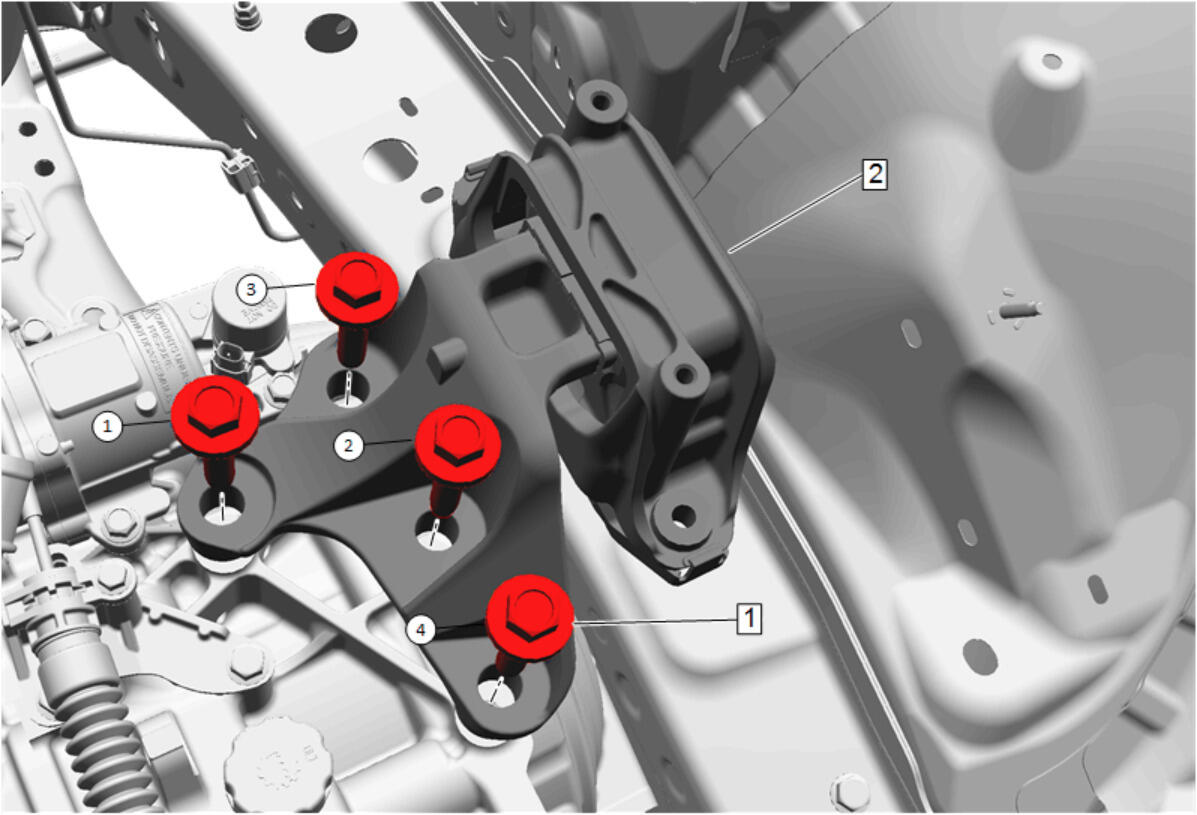

Fig 1: Transmission Mount Bolts Loosening And Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY
Loosely install the 4 NEW transmission mount transmission side bolts (1).
Adjust the engine support fixture in order to allow a 1/8 inch gap between the mount and bracket.
Shake the powertrain vigorously from front to rear and allow the powertrain to settle.
Transmission Mount Transmission Side Bolt (1) - Tighten in sequence [4x] - Transmission Mount Replacement

Fig 2: Transmission Mount Bolts Loosening And Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Refer to the procedure link for torque specification.
Engine Mount Bolt (1) - Tighten [2x] - Engine Mount Replacement

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Refer to the procedure link for torque specification.
Raise the vehicle. Lifting and Jacking the Vehicle
Transmission Front Mount Bolt (1) - Tighten - Transmission Front Mount Replacement

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Refer to the procedure link for torque specification.
Transmission Mount Strut Bracket Bolt (1) - Tighten - Transmission Mount Strut Bracket Replacement (FWD)

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Refer to the procedure link for torque specification.
Lower the vehicle.
Engine Support Fixture - Remove - Engine Support Fixture
Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
