Removal Procedure

Evaporative Emission Canister Purge Tube (1) - Remove - Evaporative Emission Canister Purge Tube Replacement

Courtesy of GENERAL MOTORS COMPANY
Evaporative Emission Hose (1) - Remove - Evaporative Emission Hose Replacement

Courtesy of GENERAL MOTORS COMPANY
Engine Oil Cooler Hose Bolt (1) - Remove [2x]

Courtesy of GENERAL MOTORS COMPANY
Engine Oil Cooler Hose Retainer (2) - Remove
Engine Oil Cooler Coolant Outlet Hose (3) - Reposition
Charge Air Cooler Inlet Air Tube Bolt (1) Remove

Courtesy of GENERAL MOTORS COMPANY
Retainer Spring (2) - Release
Charge Air Cooler Inlet Air Tube (3) - Remove
Retainer Spring (1) - Release

Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Inlet Air Tube (2) - Remove
Set the park brake and chock the wheels.
Disconnect the electronic transmission range selector manual park release cable (2).

Courtesy of GENERAL MOTORS COMPANY
Electronic Transmission Range Selector Manual Parking Release Cable Bracket Bolt (1) - Remove
Remove the electronic transmission range selector manual park release cable (2) from the transmission.
Remove the left front floor console extension panel. Front Floor Console Extension Panel Replacement - Left Side

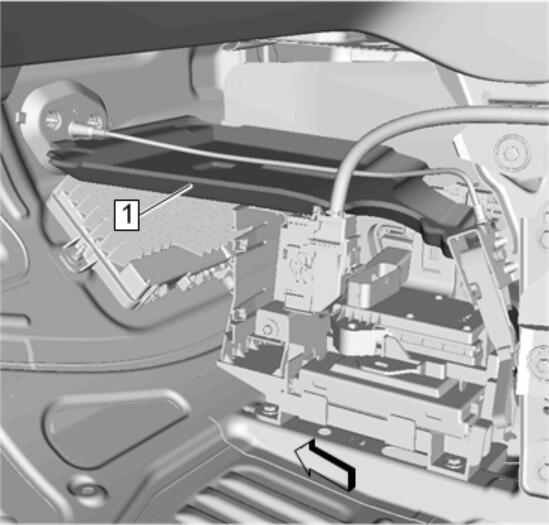

Remove the body control module shield (1)

Courtesy of GENERAL MOTORS COMPANY
Move the floor carpet and insulation in order to gain access to the electronic transmission range selector manual park release cable grommet nuts (1).

Courtesy of GENERAL MOTORS COMPANY
Remove the grommet nuts (1) and the electronic transmission range selector manual park release cable grommet from the cowl panel.
Remove the electronic transmission range selector manual park release cable handle bolt (1).

Courtesy of GENERAL MOTORS COMPANY
Remove the electronic transmission range selector manual park release cable (2) from the vehicle.
