Evaporative Emission Canister Purge Tube Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

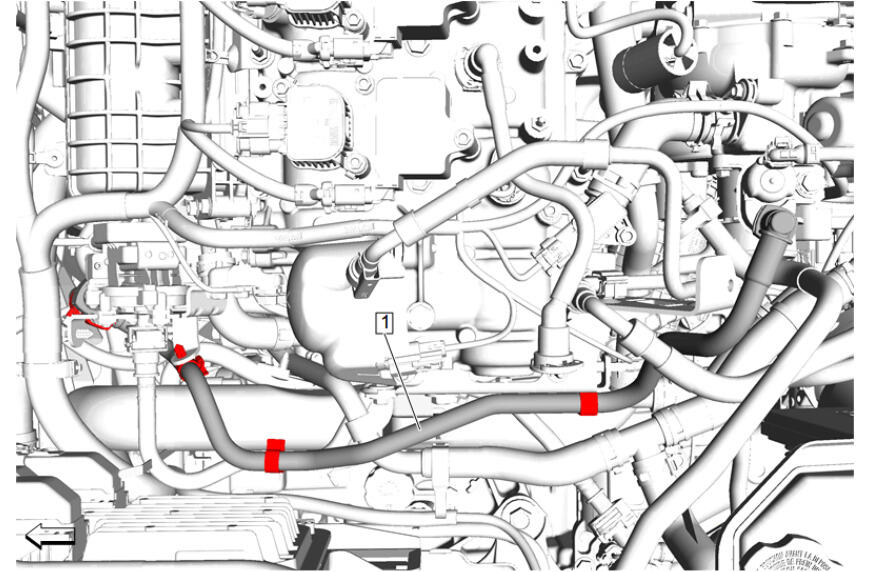

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Air Cleaner Outlet Intermediate Duct Replacement Turbocharger Outlet Duct Connector Replacement
1	Evaporative Emission Canister Purge Tube Procedure Disconnect the quick connect fitting and remove from the 4 retainers. Plastic Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Evaporative Emission Canister Purge Tube
Procedure
Disconnect the quick connect fitting and remove from the 4 retainers. Plastic Collar Quick Connect Fitting Service
