Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

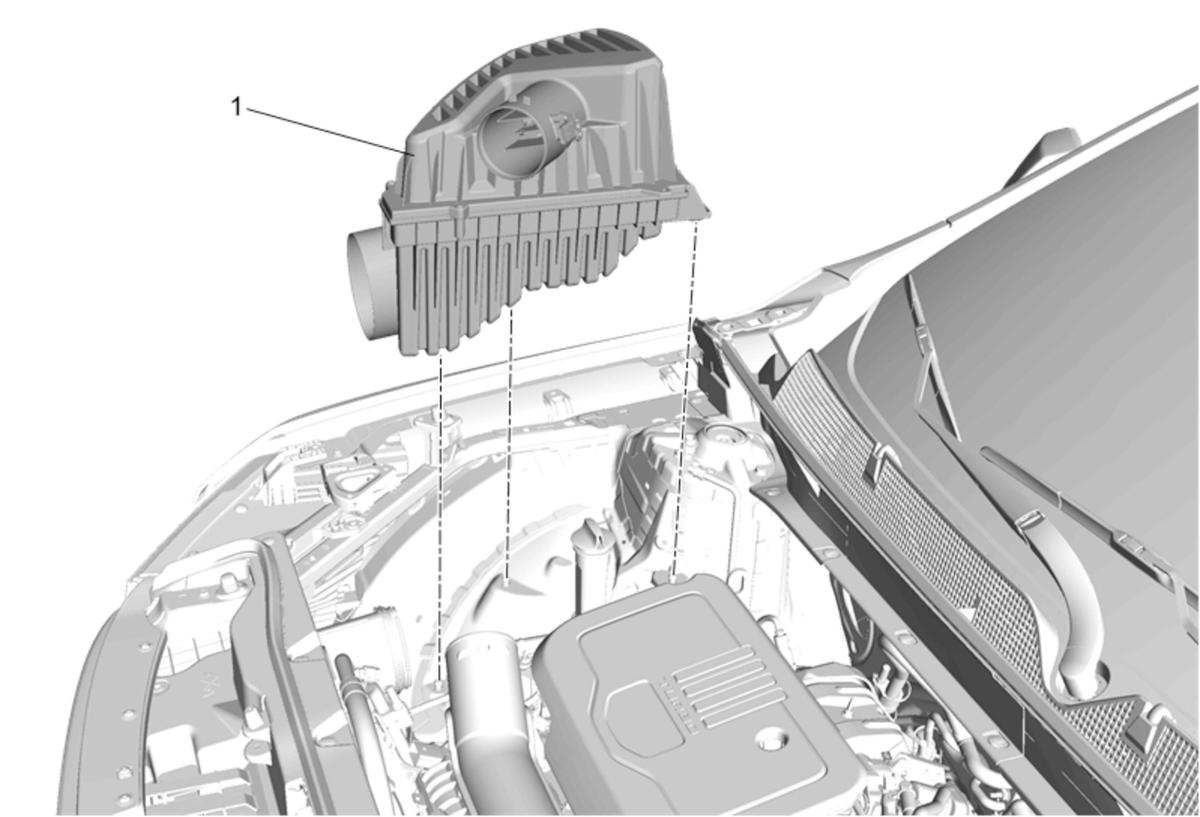

GM5334678Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
  3. Remove wiring harness retainers from air cleaner assembly.
2 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
