Engine Harness Routing - Right Front (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

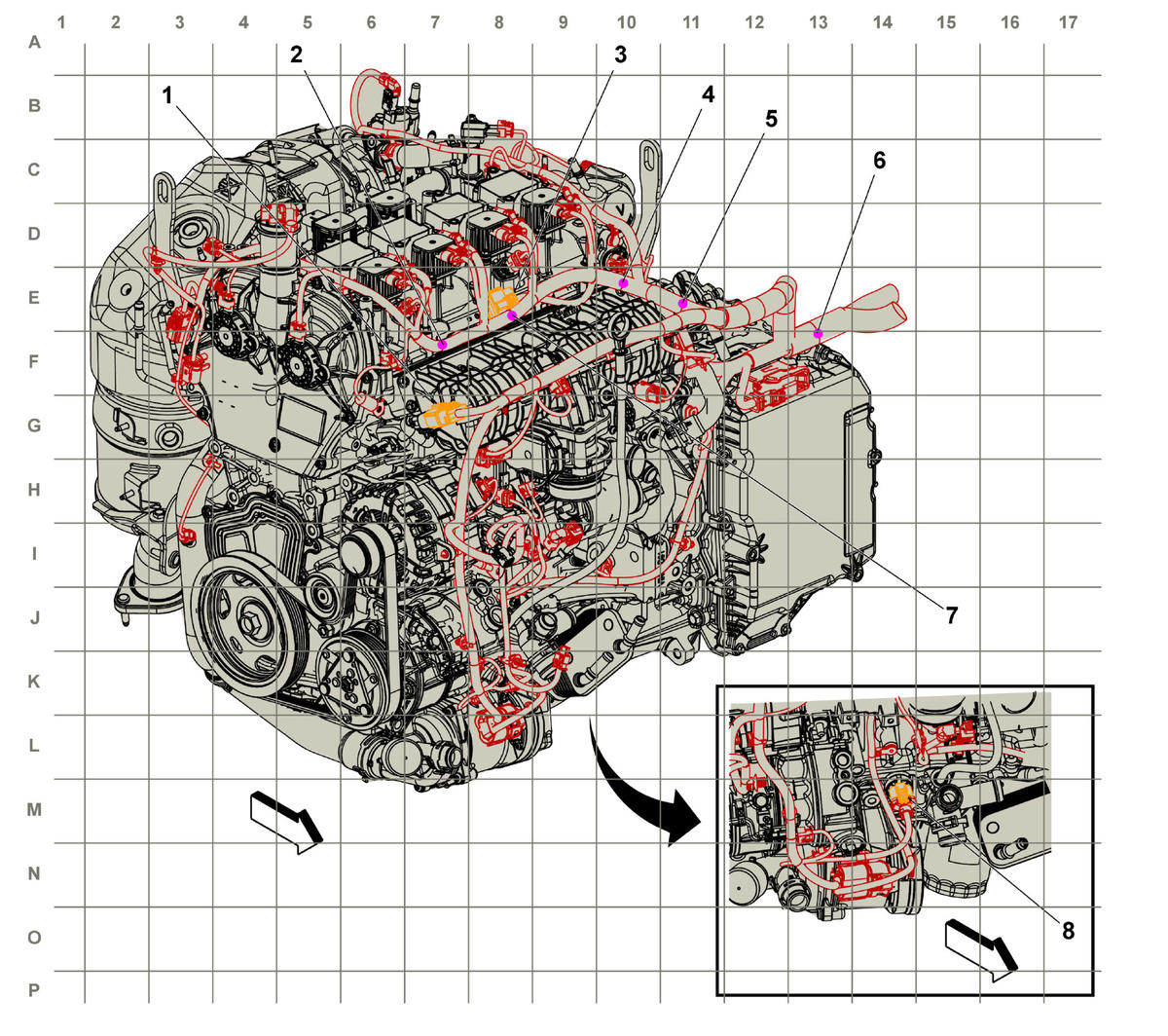

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X160 Engine Wiring Harness to Fuel Injector Wiring Harness X160 Engine Wiring Harness to Fuel Injector Wiring Harness (LSY) |
| 2. J125 Engine Harness |
| 3. X113 Engine Wiring Harness to Engine Jumper Wiring Harness X113 Engine Wiring Harness to Engine Jumper Wiring Harness |
