X116 Engine Wiring Harness to Engine Oil Level Indicator Control Module Wiring Harness (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

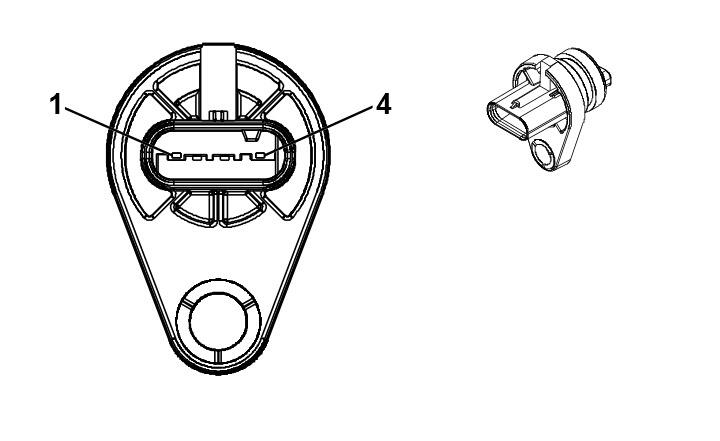

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13503575
- Service Connector: 13587299
- Description: 4-Way F 1.2 Multilock Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Engine Oil Level Indicator Control Module Wiring Harness
- OEM Connector: 312095
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| II |
Not required |
J-35616-13 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
YE/BN |
106 |
I |
LSY |
Oil Pump Motor Control |
1 |
0.5 |
YE/BN |
106 |
II |
- |
| 2 - 3 |
- |
- |
- |
- |
- |
Not Occupied |
2 - 3 |
- |
- |
- |
- |
- |
| 4 |
0.75 |
BU |
179 |
I |
LSY |
Engine Oil Pump Control |
4 |
0.5 |
BU |
179 |
II |
- |
