Engine Components - Top of the Engine (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

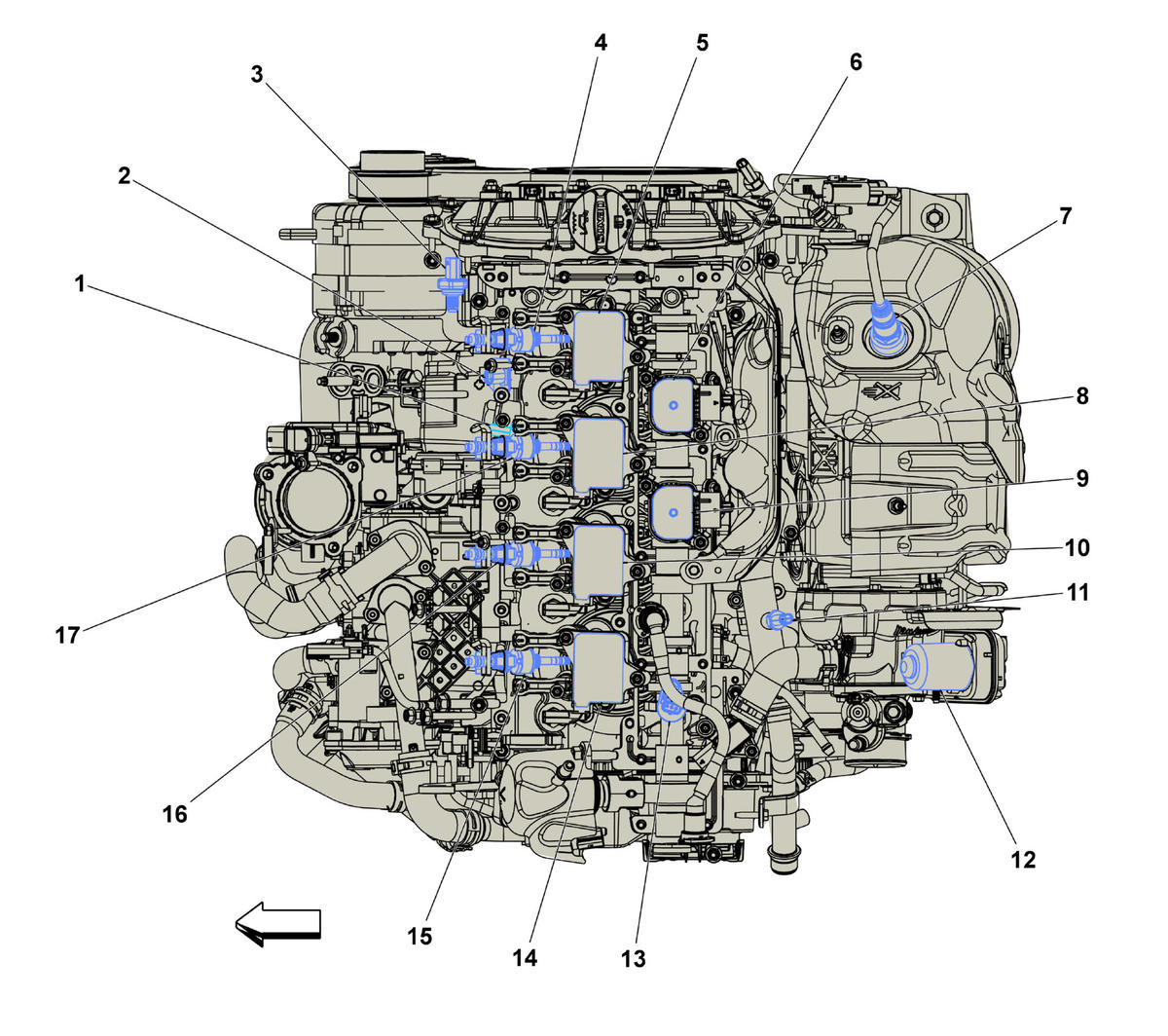

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. B34F Engine Coolant Temperature Sensor 6 (LSY) B34F Engine Coolant Temperature Sensor 6 (LSY) |
| 2. B68A Knock Sensor 1 B68A Knock Sensor 1 (LSY) |
| 3. B310 Fuel Pressure/Temperature Sensor B310 Fuel Pressure/Temperature Sensor |
| 4. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LSY) |
| 5. T8A Ignition Coil 1 T8A Ignition Coil 1 (LSY) |
| 6. M129C Intake Camshaft Profile Actuator 3 (LSY) M129C Intake Camshaft Profile Actuator 3 (LSY) |
| 7. B52A Heated Oxygen Sensor 1 (LSY) B52A Heated Oxygen Sensor 1 (LSY) |
| 8. T8B Ignition Coil 2 T8B Ignition Coil 2 (LSY) |
| 9. B338A Intake Camshaft Profile Sleeve Position Sensor 1 B338A Intake Camshaft Profile Sleeve Position Sensor 1 (LSY) |
| 10. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGX) , or T8C Ignition Coil 3 (LSY) |
| 11. B34A Engine Coolant Temperature Sensor 1 (LSY) B34A Engine Coolant Temperature Sensor 1 (LSY) |
| 12. M128 Turbocharger Wastegate Actuator (LSY) M128 Turbocharger Wastegate Actuator (LSY) |
| 13. B23E Camshaft Position Sensor - Exhaust (LSY) B23E Camshaft Position Sensor - Exhaust (LSY) |
| 14. T8D Ignition Coil 4 T8D Ignition Coil 4 (LSY) |
| 15. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LSY) |
| 16. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LSY) |
| 17. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LSY) |
