T8B Ignition Coil 2 (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

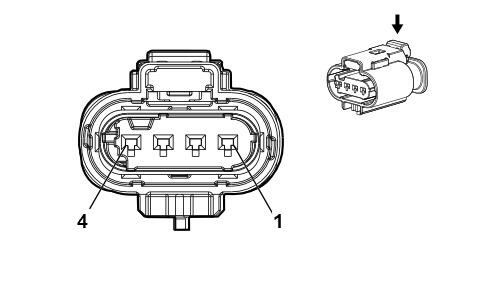

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13533762
- Service Connector: 84889372
- Description: 4-Way F 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
250 |
Ground |
I |
LSY |
| 2 |
0.75 |
BK/BU |
2129 |
Ignition Control Low Reference Bank 1 |
I |
LSY |
| 3 |
0.75 |
BU/WH |
2122 |
Ignition Control 2 |
I |
LSY |
| 4 |
0.75 |
VT/BU |
5291 |
Powertrain Main Relay Fused Supply Voltage 2 |
I |
LSY |
