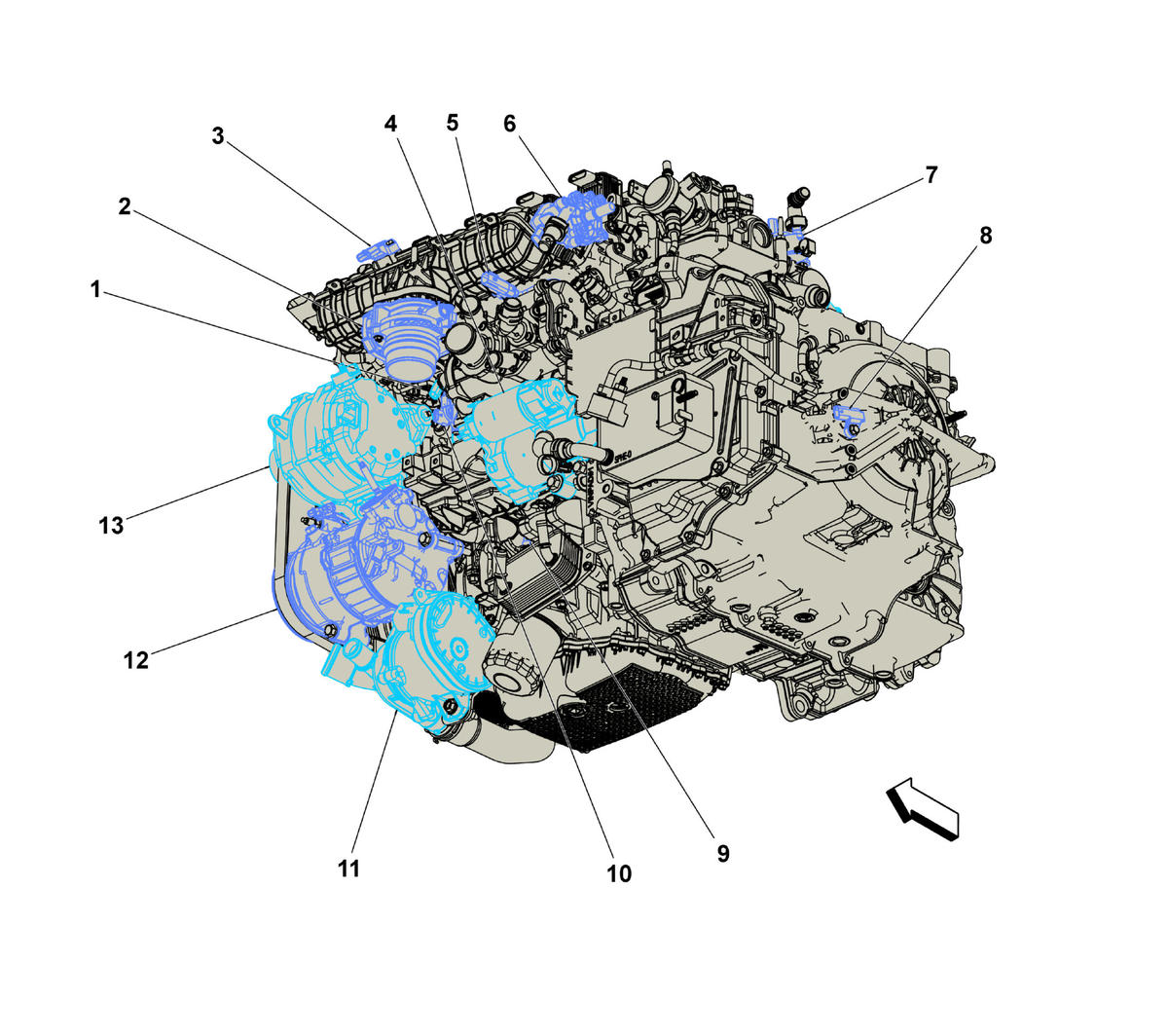

Engine Components - Left Bottom (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. B34B Engine Coolant Temperature Sensor 2 (LSY) B34B Engine Coolant Temperature Sensor 2 (LSY) |
| 2. Q38 Throttle Body Q38 Throttle Body |
| 3. B65 Intake Manifold Pressure and Air Temperature Sensor (LSY) B65 Intake Manifold Pressure and Air Temperature Sensor (LSY) |
| 4. M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2 |
| 5. B68B Knock Sensor 2 B68B Knock Sensor 2 (LSY) |
| 6. G58 Evaporative Emission Purge Pump G58 Evaporative Emission Purge Pump (LSY) |
| 7. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LSY) |
| 8. B14E Transmission Input/Intermediate Shaft Speed Sensor |
| 9. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LSY) |
| 10. Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve (LSY) |
| 11. G59 Engine Coolant Pump G59 Engine Coolant Pump (LSY) |
| 12. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 13., G13 Generator G13 Generator X1 , or G13 Generator X2 |
