G59 Engine Coolant Pump (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

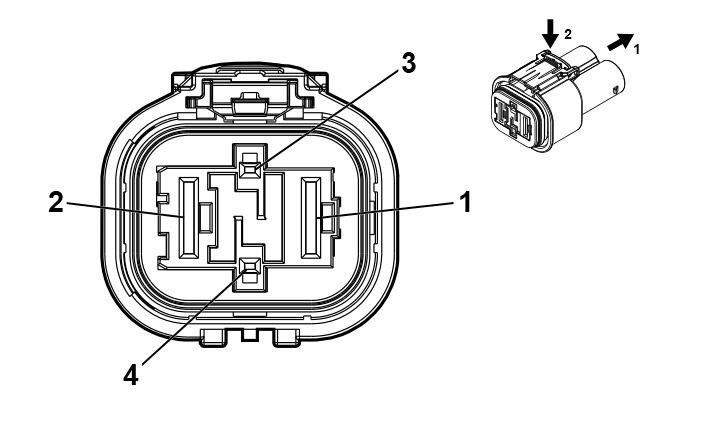

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13529610
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2, 9.5 MCON Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| II |
Not required |
J-35616-22 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
10 |
RD/GY |
642 |
Battery Positive Voltage |
II |
LSY |
| 2 |
10 |
BK |
750 |
Ground |
II |
LSY |
| 3 |
0.5 |
GN/BK |
4624 |
Engine Control Module LIN Bus 3 |
I |
LSY |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
