Liftgate Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

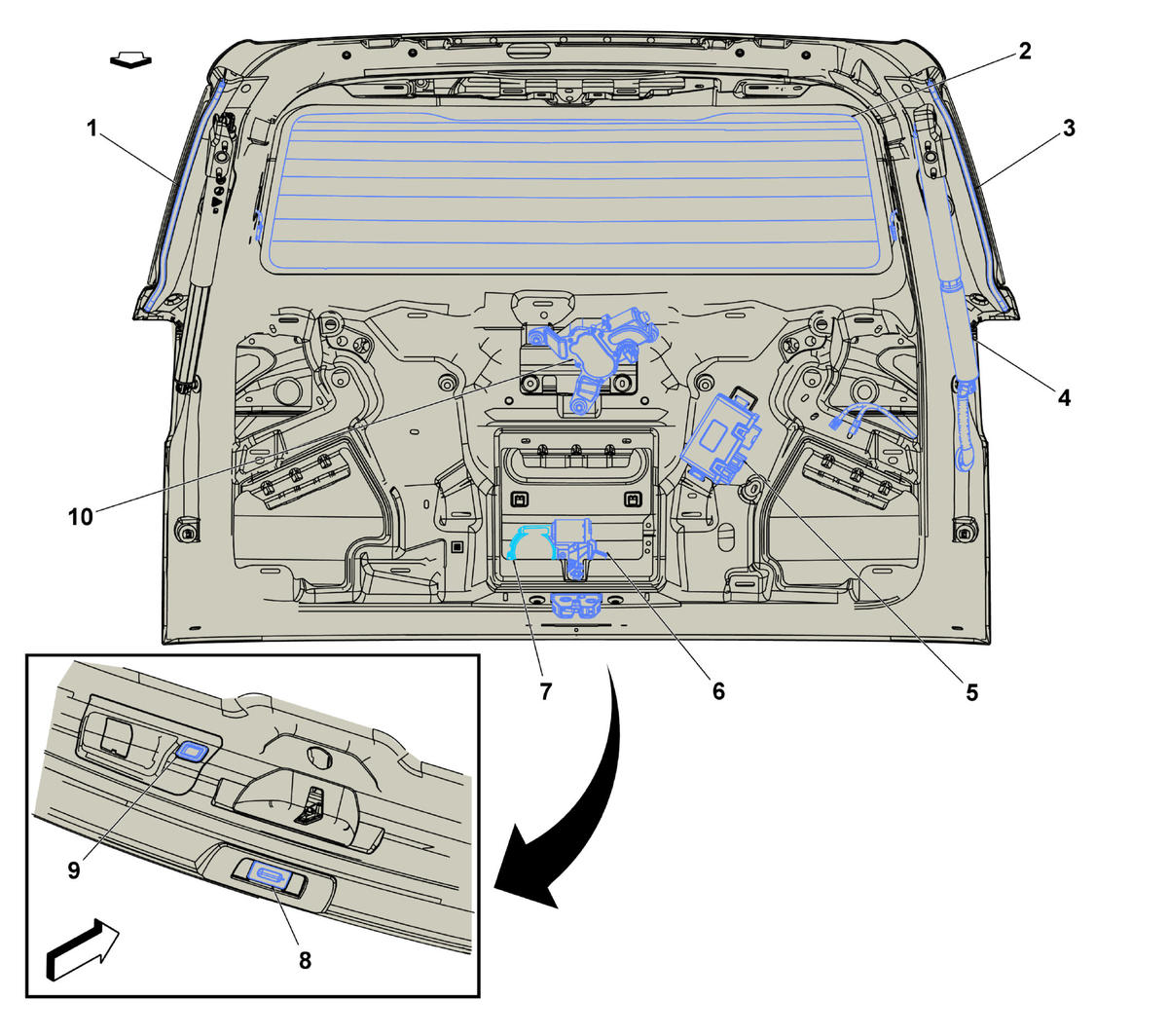

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. B71R Liftgate Object Sensor - Right |
| 2. E18 Rear Defogger Grid E18 Rear Defogger Grid X1 , or E18 Rear Defogger Grid X2 |
| 3. B71L Liftgate Object Sensor - Left |
| 4. M17 Liftgate Motor Assembly (TB5) M17 Liftgate Motor Assembly X1 (TB5) , or M17 Liftgate Motor Assembly X2 (TB5) |
| 5. K39 Liftgate Control Module (TB5) K39 Liftgate Control Module X1 , or K39 Liftgate Control Module X2 , or K39 Liftgate Control Module X3 |
| 6. M30 Liftgate Latch (TB4) M30 Liftgate Latch |
| 7. A23C Liftgate Latch Assembly (TB5) A23C Liftgate Latch Assembly (TB4) |
| 8. S46B Liftgate Unlatch Switch S46B Liftgate Unlatch Switch |
| 9. B70 Liftgate Close Switch (TB5) B70 Liftgate Close Switch (TB5) |
| 10. M45 Rear Wiper Motor M45 Rear Wiper Motor |
