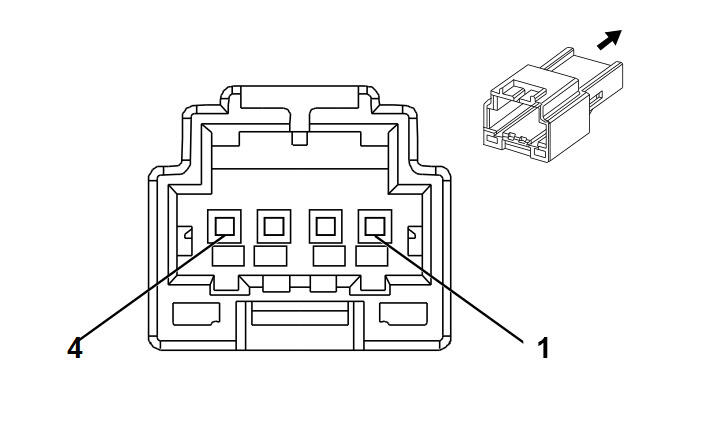

M17 Liftgate Motor Assembly X1 (TB5)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Liftgate Wiring Harness
- OEM Connector: 936121-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-65B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN/RD |
5803 |
Liftgate Position Sensor Voltage Reference |
I |
|
| 2 |
0.35 |
BK/GN |
5804 |
Liftgate Position Sensor Low Reference |
I |
|
| 3 |
0.35 |
BU/WH |
5805 |
Liftgate Position Sensor Signal 1 |
I |
|
| 4 |
0.35 |
BN/YE |
5806 |
Liftgate Position Sensor Signal 2 |
I |
|
