Behind the Instrument Panel Components

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

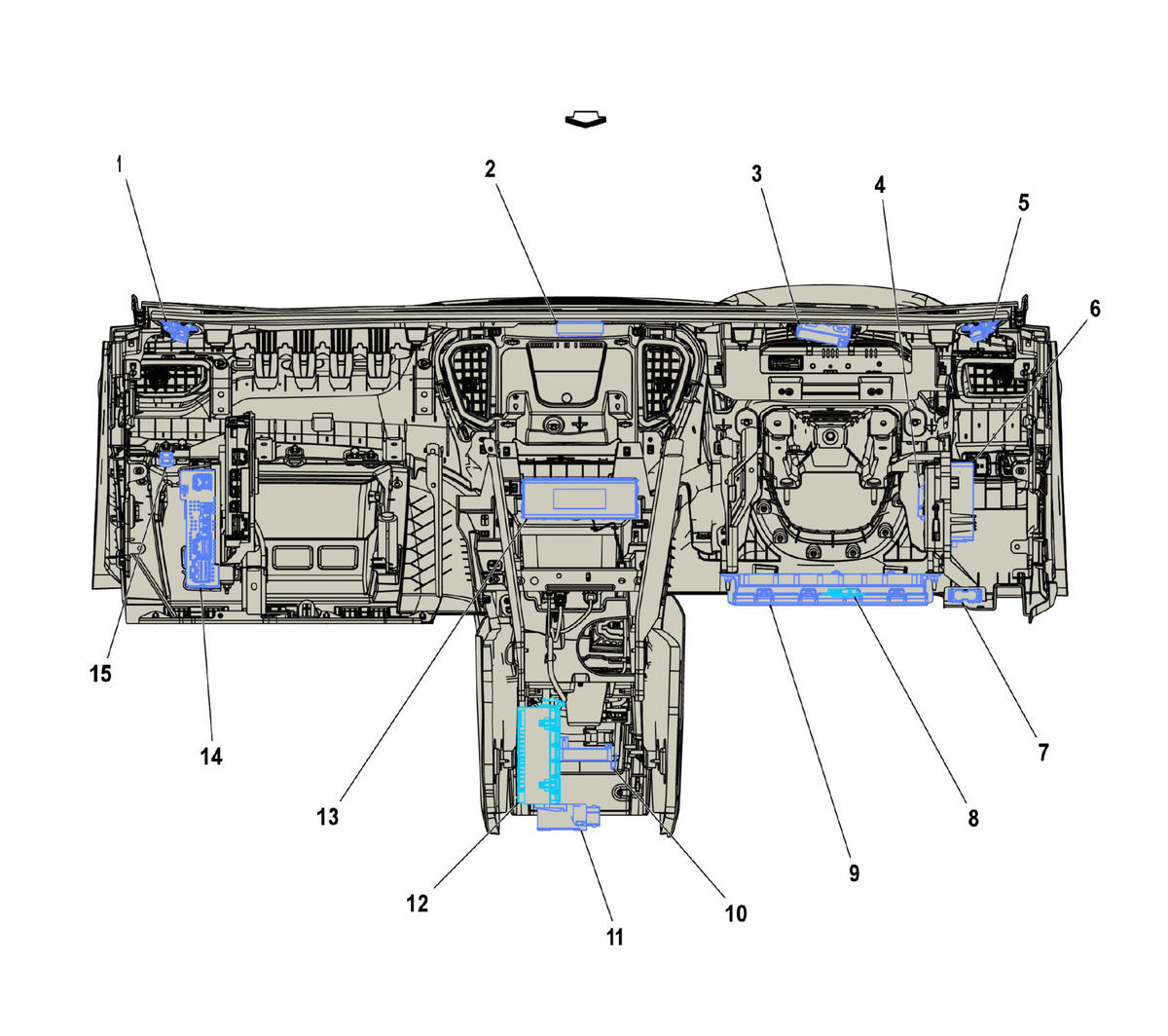

GM5867396Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Items
1. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQF)
2. P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel
3. P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators (UEU)
4. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2
5. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA) , or P19J Speaker - Left Instrument Panel (UQF)
6. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 , or K73 Telematics Communication Interface Control Module X2 , or K73 Telematics Communication Interface Control Module X3
7. X84 Data Link Connector X84 Data Link Connector
8. E8VA Floor Courtesy Lamp - Left Front E8VA Floor Courtesy Lamp - Left Front
9. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
10. T10U Keyless Entry Antenna - Instrument Panel T10U Keyless Entry Antenna - Instrument Panel (BTM)
11. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2
12. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel
13. K33 HVAC Control Module K33 HVAC Control Module X1 , or K33 HVAC Control Module X2 , or K33 HVAC Control Module X3 , or K33 HVAC Control Module X4
14. A11 Radio A11 Radio X1 (IOR) , or A11 Radio X1 (IOS/IOT/IOU) , or A11 Radio X2 (IOR) , or A11 Radio X2 (IOS/IOT/IOU) , or A11 Radio X3 (IOR) , or A11 Radio X3 (IOS/IOT/IOU) , or A11 Radio X4 (IOR) , or A11 Radio X4 (IOS/IOT/IOU) , or A11 Radio X5 (IOR) , or A11 Radio X5 (IOS/IOT/IOU) , or A11 Radio X6 (IOS/IOT/IOU)
15. R6F Terminating Resistor - High Speed Extension Bus 2 R6F Terminating Resistor - High Speed Extension Bus 2
